Durastar 60K BTU Cooling / 39K BTU Heating 19.2 SEER2 Three Zone Four-Way Ceiling Cassette Mini Split System with (1) 12K and (2) 18K BTU Indoor Units

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

For questions or assistance, please call (855) 484-3292 to speak to one of our experts.

Engineered for comfort, Durastar is backed by resilient technology and will withstand the test of time and nature's elements. Providing energy efficient, value-friendly HVAC equipment for every space, Durastar creates a comfortable environment for any homeowner. Durastar mini-splits are ideal for renovations, remodels and zone-specific heating and cooling needs.

Package Includes:

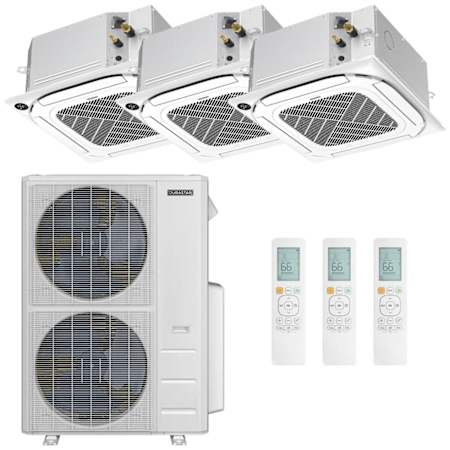

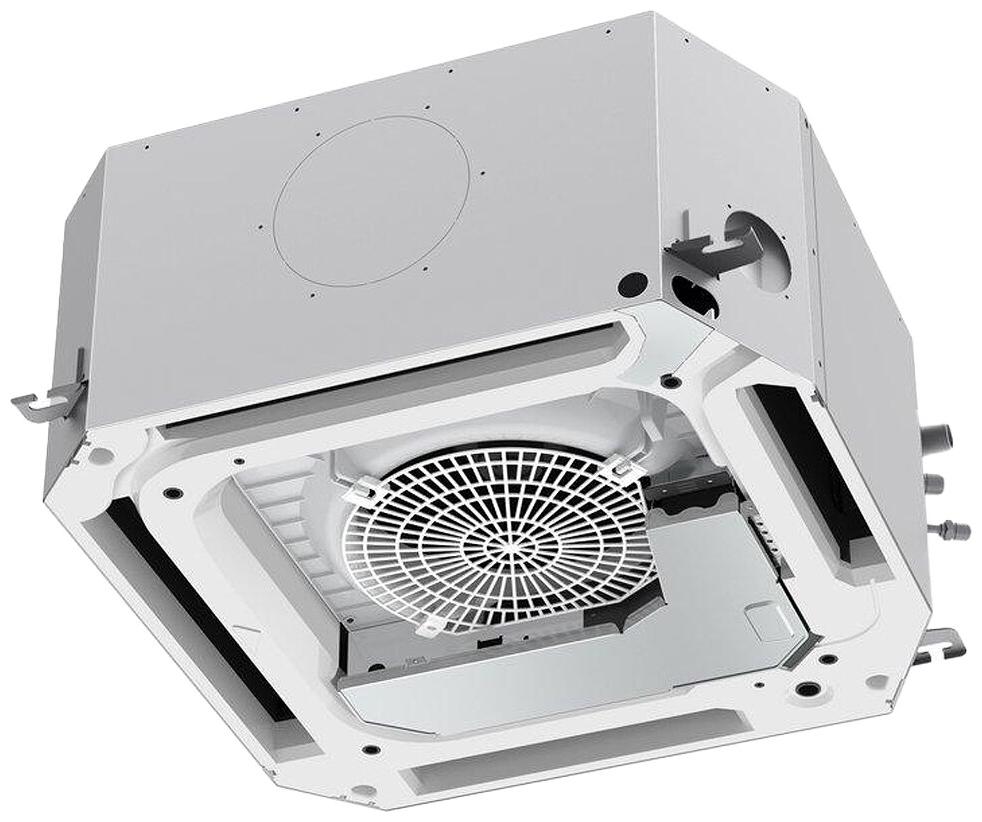

(1) DRA6U60M2A Outdoor Unit, (1) DRAC0912F2A-NG Ceiling Cassette Indoor Unit, (2) DRAC18F2A-NG Ceiling Cassette Indoor Units, and (3) DRACPANA2A Ceiling Cassette Panels

Recommended Line Set Sizes (For Indoor Unit Connectivity):

• DRAC0912F2A-NG: 1/4" x 3/8" Line Set (Qty 1)
• DRAC18F2A-NG: 1/4" x 1/2" Line Set (Qty 2)

Product Assurance:

• Performance and Efficiency:
  • SEER2: 19.2
  • HSPF2: 9.6
• Manufacturer Warranty: 7 Year Limited

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
• Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
• Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
• Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
• Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris

Component Specifications:
