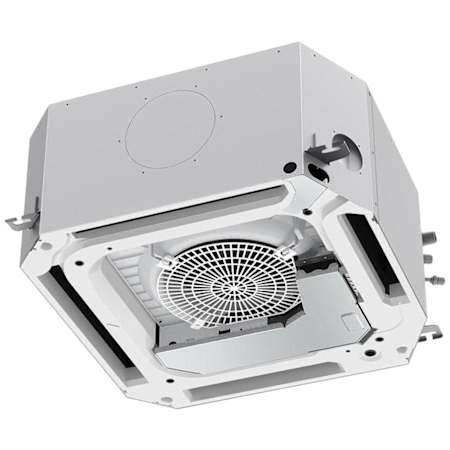

Durastar Ceiling Cassette without Grille - Multi or Single-Zone - 12k BTU - R-454B

Please note: Mini splits must be installed by a professional according to your local codes. Any mini split installed otherwise will void any manufacturer warranty.

Indoor evaporator unit only, outdoor condenser required for proper functionality. For questions or assistance building a multi-zone system, please call (855) 484-3292 to speak to one of our experts.

Specifications:

• Zone Cooling BTU: 12,000
• Zone Heating BTU: 12,000
• Cooling Area: 600 Sq. Ft.
• Sound Level: 24 to 46 dB
• Liquid Line Connection Size: 1/4" Inch
• Gas Line Connection Size: 3/8" Inch
• Depth: 22-7/16"
• Height: 9-5/8"
• Width: 22-7/16"
• Recommended Breaker Size: 15 A
• Amperage: 3 A
• Voltage: 208, 230V

Product Assurance:

• Certifications:
  • AHRI
  • ETL
• Manufacturer Warranty: 10 Year

Required Components:

• Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
• Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
• Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
