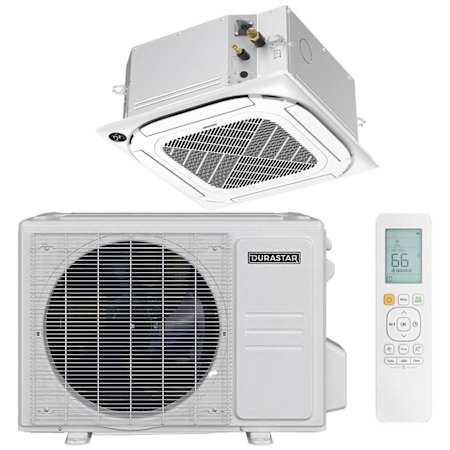

Durastar Ceiling Cassette Heat Pump System - Single-Zone - 9k BTU - 21.6 SEER2 - R-454B
Model: DRA1U09S2A DRAC0912F2A|Item: bci5187617
$2,973.02
237 In Stock
This package includes the following items
Details
Product Assurance:
- Certifications:
- AHRI
- ETL
- Performance and Efficiency:
- SEER2: 21.6
- HSPF2: 11.3
Required Components:
- Line Set: Line set tubing transfers refrigerant between your outdoor condenser and indoor units
- Drain Line: The drain line removes the condensate from your system. It connects your system to the drain location of your choosing
- Connecting Cable: The connecting cable provides power to your indoor units from your outdoor condenser
- Disconnect Box and Electrical Whip Kit: The disconnect box and whip kit gives an easy way to connect your outdoor condenser to your fuse box
- Base Pan Heater (Optional): The base pan heater stops ice from building up on the outdoor unit, preventing performance degradation and potential damage
- Outdoor Condenser Plastic Pad (Optional): An outdoor condenser pad provides an even surface on which to place your outdoor condenser
- Wall Bracket (Optional): A wall bracket provides a way to mount your outdoor condenser off the ground to keep it clear it of debris
Manufacturer Resources
Specification SheetDimensions and Measurements
Product Weight | 97.5 lbs. |
Dimensions and Measurements
Product Weight | 97.5 lbs. |
Included Components
Heater Included | Yes |
Includes Remote | Yes |
Line Set Included | No |
Included Components
Heater Included | Yes |
Includes Remote | Yes |
Line Set Included | No |
Characteristics and Features
Control Type | Remote |
Indoor Unit Type | Ceiling Cassette |
Installation Type | Mini Split |
Low Ambient Heating | Yes |
Refrigerant | R-454B |
Characteristics and Features
Control Type | Remote |
Indoor Unit Type | Ceiling Cassette |
Installation Type | Mini Split |
Low Ambient Heating | Yes |
Refrigerant | R-454B |
Electrical and Operational Information
Breaker Needs | 15 Amps |
Cooling BTU Capacity | 9000 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Heating BTU Capacity | 10000 |
Indoor Unit Size(s) | 12K |
Minimum Outdoor Temperature for Cooling | -13 °F |
Minimum Outdoor Temperature for Heating | -13 °F |
Number of Zones | 1 |
Power Source | Hardwired |
Voltage | 208, 230 |
Zone Capacity | 1 |
Electrical and Operational Information
Breaker Needs | 15 Amps |
Cooling BTU Capacity | 9000 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Heating BTU Capacity | 10000 |
Indoor Unit Size(s) | 12K |
Minimum Outdoor Temperature for Cooling | -13 °F |
Minimum Outdoor Temperature for Heating | -13 °F |
Number of Zones | 1 |
Power Source | Hardwired |
Voltage | 208, 230 |
Zone Capacity | 1 |
Warranty and Product Information
AHRI Reference Number | 215359272 |
Certifications | AHRI, ETL |
DOE Regional Compliance | Nationwide |
EER2 | 14.3 |
Energy Star | Yes |
HSPF2 | 11.3 |
SEER2 | 21.6 |
Warranty and Product Information
AHRI Reference Number | 215359272 |
Certifications | AHRI, ETL |
DOE Regional Compliance | Nationwide |
EER2 | 14.3 |
Energy Star | Yes |
HSPF2 | 11.3 |
SEER2 | 21.6 |
