Zoeller
Zoeller 1/2 HP High Head Waste-Mate Cast Iron Sewage Pump (2") with Vertical Float N/A

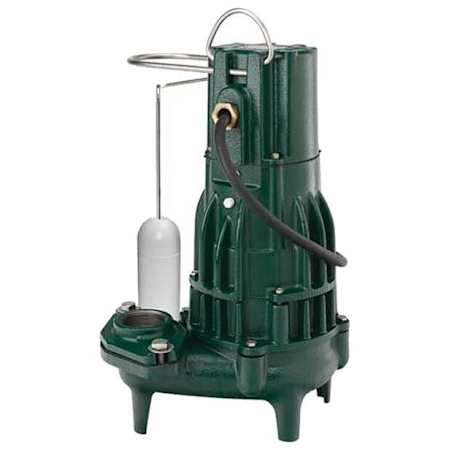

Zoeller 1/2 HP High Head Waste-Mate Cast Iron Sewage Pump (2") with Vertical Float

Model: M292
|
Item: bci5171414

$1,194.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • Zoeller M292 High Head Waste-Mate Automatic Sewage Pump: Ideal for average to above average sewage removal in high-head applications

  • Durable Cast Iron Construction (Base, Pump and Motor Housing): Corrosion-resistant powder coated epoxy finish

  • Reliable, Float-Operated Vertical 2-Pole Mechanical Switch: Provides an 'On' point of 15-3/4" and an 'Off' point of 5-1/4"

  • 1/2 HP Thermally Protected PSC Motor (3450 RPM): Oil-filled and hermetically sealed to prevent overheating w/ auto-reset

  • High Head Design (42' Shut-Off Head): Can pump up to 3000 GPH @ 30' head

  • Non-Clogging Cast Iron Vortex Impeller: Capable of passing 2" spherical solids

  • Carbon/Ceramic Shaft Seal and Upper/Lower Ball Bearings: Assures maximum protection for extended pump life

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel screws, guard, handle, arm and seal assembly

  • 2" NPT Discharge: Allows for easy connection to your discharge line

  • 20' Power Cord: UL listed, 3-wire neoprene cord and plug

  • Added Features:: 1117 Carbon Steel Motor Shaft; Neoprene square ring and gasket

  • Industry Leading Quality Control: 100% Pressure-tested, submerged and run to ensure quality and reliability

  • 1-Year Limited Warranty

Additional Zoeller Links

Manufacturer Resources

Install SheetSpecification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.25, 2 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.25, 2 in.

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Mechanical Seal Material
Ceramic Carbon
Submersible
Yes

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Mechanical Seal Material
Ceramic Carbon
Submersible
Yes

Electrical and Operational Information

Amperage
15
Horsepower
0.5
Voltage
120

Electrical and Operational Information

Amperage
15
Horsepower
0.5
Voltage
120

Warranty and Product Information

Commercial Warranty
1 Year
Manufacturer Warranty
1 Year

Warranty and Product Information

Commercial Warranty
1 Year
Manufacturer Warranty
1 Year
