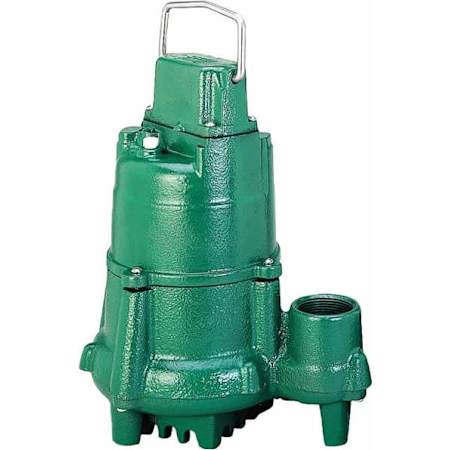

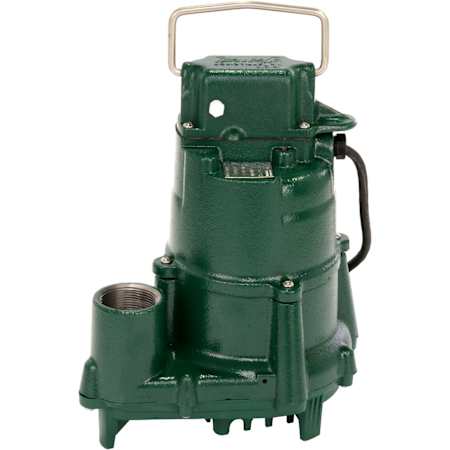

Zoeller 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic) N/A
Alternate Image
Zoeller 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic) N/A
Alternate Image

Zoeller 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic)

Model: 98-0002
|
Item: bci3629296

$333.75
40 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Today, January 16th
-
Return & Shipping Details

Details

Features:

  • ***NON-AUTOMATIC - Requires Float Switch***

  • Submersible Cast Iron Sump Pump: Offers years of reliable, trouble-free operation

  • Engineered Thermoplastic Base: Designed to prevent base corrosion in harsh environments

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel screws, guard, handle, arm and seal assembly

  • Thermally Protected, Permanent Split Capacitor Motor: Oil-filled and hermetically sealed to prevent overheating

  • Carbon and Ceramic Shaft Seal: Assures maximum protection for extended pump life

  • Powder Coated Epoxy Finish: Provides a corrosion resistant exterior

  • Clog-Resistant Design
    • No screen to interfere with flowing debris
    • Capable of passing 1/2" diameter solids

  • Industry Leading Quality Control: Entire unit is pressure tested after assembly

Additional Zoeller Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
2 in.
Height
19.25 in.
Length
12.5 in.
Maximum Flow Rate
72 GPM
Product Weight
93 lbs.
Water Connection
1-1/2"
Width
9.63 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
2 in.
Height
19.25 in.
Length
12.5 in.
Maximum Flow Rate
72 GPM
Product Weight
93 lbs.
Water Connection
1-1/2"
Width
9.63 in.

Characteristics and Features

Base Material
Plastic
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material
Cast Iron
Submersible
Yes

Characteristics and Features

Base Material
Plastic
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material
Cast Iron
Submersible
Yes

Electrical and Operational Information

Amperage
9.4
Backup GPH @ 0 feet
7500 GPH
Backup GPH @ 10 feet
7500 GPH
Backup GPH @ 15 feet
7500 GPH
Backup GPH @ 20 feet
6000 GPH
Backup GPH @ 5 feet
7500 GPH
Frequency
60 Hertz
Horsepower
0.5
Operating Temperature (Max)
130 °F
Starting Amps
29.2 Amps
Voltage
120

Electrical and Operational Information

Amperage
9.4
Backup GPH @ 0 feet
7500 GPH
Backup GPH @ 10 feet
7500 GPH
Backup GPH @ 15 feet
7500 GPH
Backup GPH @ 20 feet
6000 GPH
Backup GPH @ 5 feet
7500 GPH
Frequency
60 Hertz
Horsepower
0.5
Operating Temperature (Max)
130 °F
Starting Amps
29.2 Amps
Voltage
120

Warranty and Product Information

Approved for Commercial Use
Yes
Manufacturer Warranty
1

Warranty and Product Information

Approved for Commercial Use
Yes
Manufacturer Warranty
1
