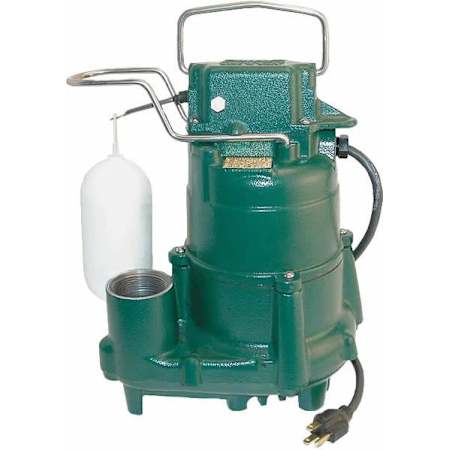

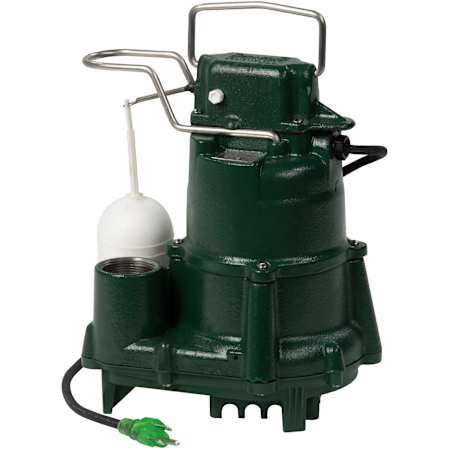

Zoeller 1/2 HP Cast Iron Submersible Sump Pump with Vertical Float Switch
Model: 98-0001|Item: bci1999440
from theFlow-Mate Collection
$349.50
481 In Stock
Details
Features:
- ***PLEASE NOTE - 9-Foot Power Cord***
- Automatic Submersible Cast Iron Sump Pump: Offers years of reliable, trouble-free operation
- Engineered Thermoplastic Base: Designed to prevent base corrosion in harsh environments
- No Sheet Metal Parts To Rust Or Corrode: Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected, Permanent Split Capacitor Motor: Oil-filled and hermetically sealed to prevent overheating
- Vertical Float Switch: Solid and buoyant polypropylene design
- Carbon and Ceramic Shaft Seal: Assures maximum protection for extended pump life
- Powder Coated Epoxy Finish: Provides a corrosion resistant exterior
- Clog-Resistant Design
- No screen to interfere with flowing debris
- Capable of passing 1/2" diameter solids
- Industry Leading Quality Control: Entire unit is pressure tested after assembly
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 72 |
Height | 12.25 in. |
Length | 12.6 in. |
Maximum Head Height | 23 in. |
Product Weight | 23 lbs. |
Water Connection | 1-1/2" |
Width | 7.75 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 72 |
Height | 12.25 in. |
Length | 12.6 in. |
Maximum Head Height | 23 in. |
Product Weight | 23 lbs. |
Water Connection | 1-1/2" |
Width | 7.75 in. |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.7 |
Backup GPH @ 0 feet | 2580 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2580 GPH |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
Starting Amps | 29.2 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 9.7 |
Backup GPH @ 0 feet | 2580 GPH |
Backup GPH @ 10 feet | 2040 GPH |
Backup GPH @ 15 feet | 1140 GPH |
Backup GPH @ 5 feet | 2580 GPH |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
Starting Amps | 29.2 Amps |
Voltage | 120 |
Warranty and Product Information
Certifications | UL |
Collection | Model 98 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 5 |
Warranty and Product Information
Certifications | UL |
Collection | Model 98 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 5 |
