Zoeller

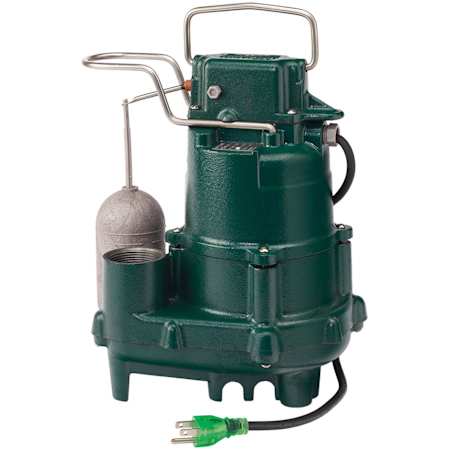

Zoeller 1/2 HP Premium Cast Iron Submersible Sump Pump with Vertical Float Switch N/A

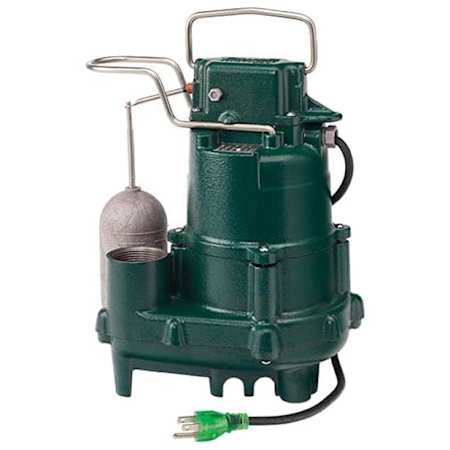

Alternate Image
Zoeller 1/2 HP Premium Cast Iron Submersible Sump Pump with Vertical Float Switch N/A
Alternate Image

Zoeller 1/2 HP Premium Cast Iron Submersible Sump Pump with Vertical Float Switch

Model: 95-0001
|
Item: bci3629298

$476.25
26 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Today, January 16th
-
Return & Shipping Details

Details

Features:

  • Zoeller M95 Premium Series Automatic Submersible Sump Pump: For residential / light commercial dewatering, groundwater transfer and effluent

  • NEW For 2017 *5-Year Limited Warranty*: Attention to detail in this series for total reliability and trouble free performance

  • ALL CAST IRON (Motor / Pump Housing, Switch Case and Base)
    • Powder-coated epoxy finish for superior corrosion-resistance
    • Maximizes heat dissipation for cooler operation during extended periods

  • Polypropylene Float Operated Vertical Switch w/ Viton Switch Boot: Zoeller's newest and longest lasting 2-pole mechanical switch

  • 1/2 HP Permanent Split Capacitor 115V Motor (3450 RPM): Energy efficient, only draws 10.5-Amps

  • Thermally Protected Motor w/ Automatic Reset: Oil-filled, hermetically-sealed design reduces chance of motor damage

  • Non-Clogging Engineered Thermoplastic Vortex Impeller: Screenless, bottom intake designed to pass solids up to 1/2"

  • Upper/Lower Oil Fed Cast Iron Bearings and Carbon/Ceramic Shaft Seal: Provides increased durability and less heat for extended protection

  • 1-1/2" NPT Discharge: Compatible with most residential and light commercial applications

  • 15-Foot Power Cord (UL Listed) w/ LED Lighted Plug End: Easily see when there is power available to the pump

  • Industry Leading Quality Control: Entire unit is 100% pressure tested after assembly

Additional Zoeller Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
9 in.
Discharge Diameter
1.5 in.
Height
12.125 in.
Length
12.6 in.
Maximum Flow Rate
80 GPM
Maximum Head Height
26 in.
Product Weight
38 lbs.
Water Connection
1-1/2"
Width
10.094 in.

Dimensions and Measurements

Cord Length
9 in.
Discharge Diameter
1.5 in.
Height
12.125 in.
Length
12.6 in.
Maximum Flow Rate
80 GPM
Maximum Head Height
26 in.
Product Weight
38 lbs.
Water Connection
1-1/2"
Width
10.094 in.

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No
Material
Cast Iron
Material Shaft
Steel
Submersible
Yes

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
No
Material
Cast Iron
Material Shaft
Steel
Submersible
Yes

Electrical and Operational Information

Amperage
9.7
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725
Operating Temperature (Max)
130 °F
Starting Amps
29.2 Amps
Voltage
120

Electrical and Operational Information

Amperage
9.7
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.5
Maximum Fluid Temperature
130 °F
Motor RPM
1725
Operating Temperature (Max)
130 °F
Starting Amps
29.2 Amps
Voltage
120

Warranty and Product Information

Approved for Commercial Use
Yes
Collection
Model 95
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3

Warranty and Product Information

Approved for Commercial Use
Yes
Collection
Model 95
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3
