Zoeller

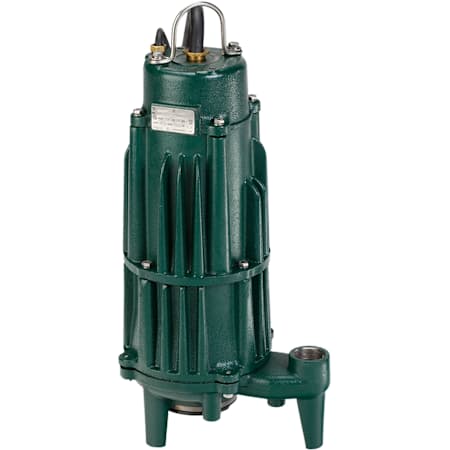

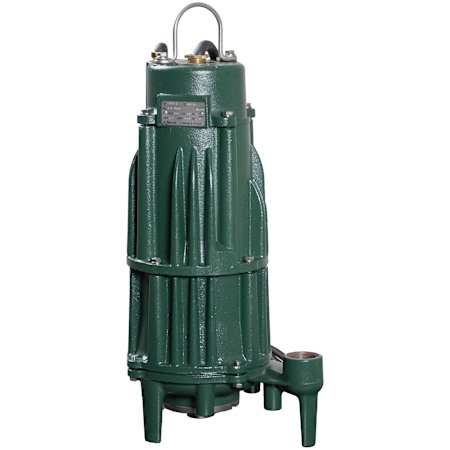

Zoeller Model 841 Nonautomatic Grinder Pump 2.00 HP, 460V Green

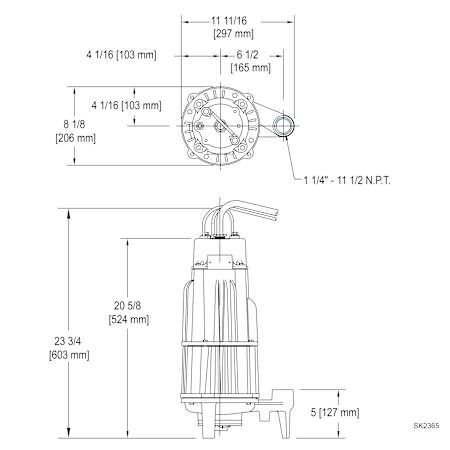

Line Drawing
Zoeller Model 841 Nonautomatic Grinder Pump 2.00 HP, 460V Green
Line Drawing

Zoeller Model 841 Nonautomatic Grinder Pump 2.00 HP, 460V

Model: 841-0008
|
Item: bci5108367

$2,686.50
Finish: Green -
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 10 weeks
-
Return & Shipping Details

Details

The Shark Series® Model G841 Sewage Grinder Pump is designed to pump raw sewage in a sewage application. Solids are cut into a slurry using the industry proven "scissor like" Tri-Slice® cutter technology. This includes a rotating cutter cutting against the stationary cutter plate reducing solids down to 1/8". The 460 Volt, 2 HP, Model 841 utilizes a vortex impeller. The G841 should use a control panel and control switches allowing it to turn the pump on when called upon. The Model 841 is constructed with a cast iron body, enabling it to withstand the most demanding sewage ejector applications. The pump's identification tag, handle, and hardware are made of high-quality stainless steel preventing rust and corrosion. Everything about the pump is designed in a way that allows it to hold up in the toughest sewage conditions. Every pump is submerged in water and tested to its published performance curve, ensuring it meets expectations and delivers peace of mind right out of the box.

Zoeller 841-0008 Features:

  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Nonautomatic pump that requires a control panel and switches to set the on / off levels
  • Proven Tri-Slice® cutter technology: Three independent cutting channels provide over 250,000 cuts per minute
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
  • Stainless steel screws, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

Zoeller 841-0008 Specifications:

  • Amperage: 5.5 A
  • Cord Length: 20'
  • Discharge Diameter: 1.25"
  • Horsepower: 2 Hp
Additional Zoeller Links

Manufacturer Resources

Exploded Parts

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.25 in.
Maximum Head Height
125 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.25 in.
Maximum Head Height
125 in.

Characteristics and Features

Impeller Material
Iron
Material Shaft
Stainless Steel

Characteristics and Features

Impeller Material
Iron
Material Shaft
Stainless Steel

Electrical and Operational Information

Amperage
5.5
Electrical Phases
3
Horsepower
2
Maximum Fluid Temperature
130 °F
Motor RPM
3450
RPM
3450

Electrical and Operational Information

Amperage
5.5
Electrical Phases
3
Horsepower
2
Maximum Fluid Temperature
130 °F
Motor RPM
3450
RPM
3450

Warranty and Product Information

Collection
Model 841
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
1 Years

Warranty and Product Information

Collection
Model 841
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
1 Years
