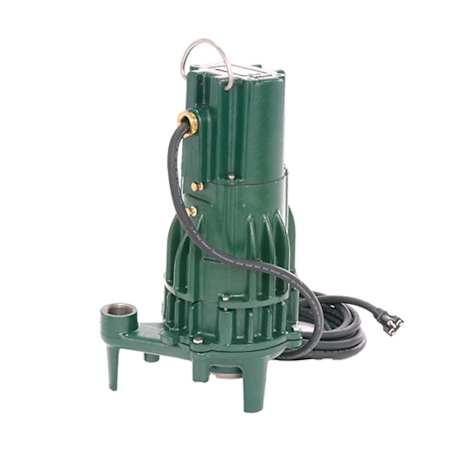

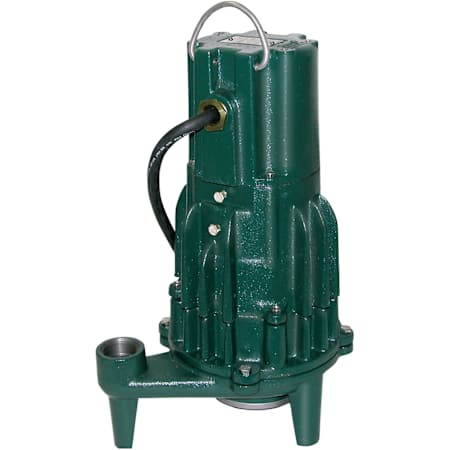

Zoeller Shark Model 820 2 HP 230V Residential Grinder Pump
Model: 820-0004|Item: bci3629297
from theShark Collection
Details
Zoeller 820-0004 Features:
- Automatic model with integral control
- Durable, heavy-duty, finned cast iron construction
- Legs provided for free-standing installation
- Oil-filled, hermetically-sealed motor with Class B insulation, automatic reset thermal overload protected
- Upper and lower ball bearings running in bath of oil
- Hardened stainless steel cutter and disc
- Cutters protected from abrasive solids
- Stainless steel lifting handle, screws and bolts
- Easily adapts to rail systems
- Mechanical shaft seal - carbon/ceramic
- Corrosion-resistant, powder coated epoxy finish
- Thermal overload protection
- Engineered plastic impeller
Zoeller 820-0004 Specifications:
- Height: 18-5/8"
- Width: 11-5/8"
- Motor: 2 HP
- Voltage: 230
- Hertz: 60
- RPM: 3450
- Discharge Size: 1-1/4" FNPT
- Max Flow Rate: 46 gallons per minute
- Max Operating Temperature: 130

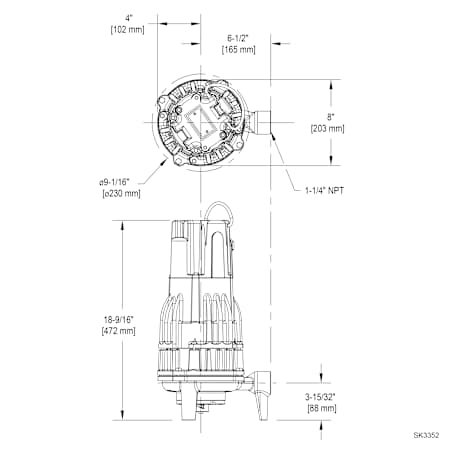

Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 1.25 in. |
Height | 18.625 in. |
Length | 8 in. |
Maximum Flow Rate | 46 GPM |
Maximum Head Height | 107 in. |
Product Weight | 88 lbs. |
Water Connection | 1-1/4" |
Width | 11.625 in. |
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 1.25 in. |
Height | 18.625 in. |
Length | 8 in. |
Maximum Flow Rate | 46 GPM |
Maximum Head Height | 107 in. |
Product Weight | 88 lbs. |
Water Connection | 1-1/4" |
Width | 11.625 in. |
Characteristics and Features
Impeller Material | Plastic |
Material | Cast Iron |
Material Shaft | Stainless Steel |
Characteristics and Features
Impeller Material | Plastic |
Material | Cast Iron |
Material Shaft | Stainless Steel |
Electrical and Operational Information
Amperage | 14.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
Operating Temperature (Max) | 130 °F |
RPM | 3450 |
Voltage | 230 |
Electrical and Operational Information
Amperage | 14.5 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 2 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
Operating Temperature (Max) | 130 °F |
RPM | 3450 |
Voltage | 230 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 820 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Years |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 820 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Years |
