Zoeller

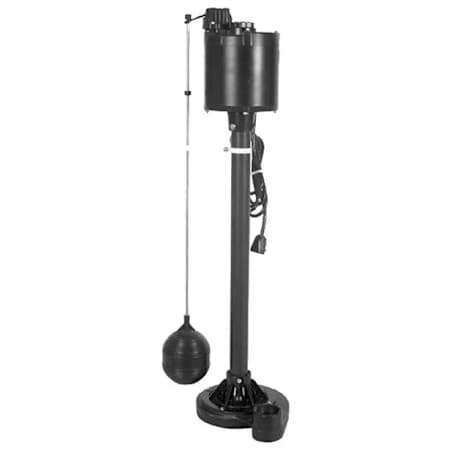

Zoeller 1/3 HP Thermoplastic Pedestal Sump Pump with Vertical Float Switch N/A
Alternate Image
Zoeller 1/3 HP Thermoplastic Pedestal Sump Pump with Vertical Float Switch N/A
Alternate Image

Zoeller 1/3 HP Thermoplastic Pedestal Sump Pump with Vertical Float Switch

Model: 81-0001
|
Item: bci5171638

$255.00
3 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, January 16th
-
Return & Shipping Details

Details

Features:

  • Zoeller Old Faithful Thermoplastic Pedestal Pump: Traditional design for a reliable basement sump pump

  • Energy Efficient 1/3 HP SP Motor - Only Uses 4-Amps: Air-cooled, Thermal overload protection w/ Auto reset

  • PVC Column, Thermoplastic Pump Housing and Base Construction: Minimizes corrosion in high mineral content water

  • Adjustable, 12" Cycle Vertical Float Switch (Factory Set @ 9"): Max "On" @ 16" and Min. Off @ 4"; Easily set your perfect cycle

  • Non-Clogging Vortex Plastic Impeller: Top intake design, no screens to clean or replace, passes lint

  • 1-1/4" NPT Female Discharge: Compatible with existing discharge line for easy installation

  • Perm. Lubricated Upper Sleeve Bearing w/ Lower Bronze Bushing: Quiet, smoother operation for extended pump life

  • 7.5' Power Cord: UL Listed 3-wire cord and plug

  • * Note* Indoor Use Only, Non-Submersible

  • 2-Year Warranty

Additional Zoeller Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
15 in.
Discharge Diameter
1.25, 2 in.
Height
17.25 in.
Length
12.25 in.
Product Weight
65 lbs.
Width
8.9 in.

Dimensions and Measurements

Cord Length
15 in.
Discharge Diameter
1.25, 2 in.
Height
17.25 in.
Length
12.25 in.
Product Weight
65 lbs.
Width
8.9 in.

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
No
Housing Material
Thermoplastic
Impeller Material
Plastic
Manual Override
No

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Handles Solids
No
Housing Material
Thermoplastic
Impeller Material
Plastic
Manual Override
No

Electrical and Operational Information

Amperage
11
Backup GPH @ 0 feet
2700 GPH
Backup GPH @ 10 feet
2520 GPH
Backup GPH @ 15 feet
2280 GPH
Backup GPH @ 20 feet
2100 GPH
Backup GPH @ 5 feet
2700 GPH
Horsepower
0.33
Voltage
120

Electrical and Operational Information

Amperage
11
Backup GPH @ 0 feet
2700 GPH
Backup GPH @ 10 feet
2520 GPH
Backup GPH @ 15 feet
2280 GPH
Backup GPH @ 20 feet
2100 GPH
Backup GPH @ 5 feet
2700 GPH
Horsepower
0.33
Voltage
120

Warranty and Product Information

Manufacturer Warranty
3

Warranty and Product Information

Manufacturer Warranty
3
