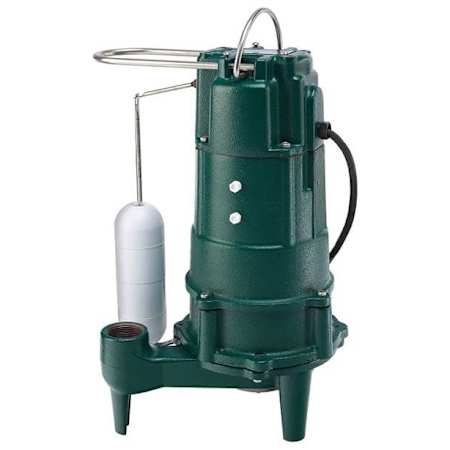

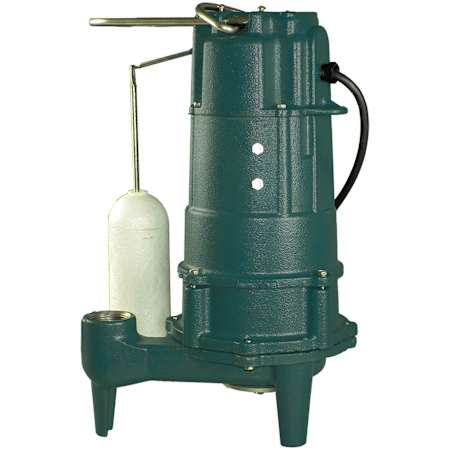

Zoeller 1 HP Cast Iron Residential Grinder Pump (1-1/4") with Vertical Float
Model: 807-0001|Item: bci3629291
from theShark Collection
$1,354.50
6 In Stock
Details
Features:
- Zoeller Shark M807 - Automatic Residential Grinder Pump: World's first integral automatic grinder; Up to 55' Max Head
- 1 HP Thermally Protected Motor (115V - 3400 RPM): Oil-filled and hermetically sealed to prevent overheating
- Stainless Steel Tri-Slice Cutter Technology: 3 Independent cutting channels provide over 250,000 cuts/min
- Cast Iron Motor Housing and Pump Housing: Provides heat dissipation for extended life cycle and durability
- Carbon/Ceramic Shaft Seal and Upper/Lower Ball Bearings: Assures maximum protection for extended pump life
- Vertical Float Switch: Solid and buoyant polypropylene design
- 1-1/4" NPT Discharge: Easily connects to your current discharge line
- Stainless Steel Screws, Bolts and Lifting Handle
- Designed to minimize corrosion in hard environments
- Makes this pump easy to install, service and remove
- Industry Leading Quality Control: Entire unit is pressure tested after assembly
- 1-Year Limited Warranty
Dimensions and Measurements
Cord Length | 15 in. |
Discharge Diameter | 1.5 in. |
Height | 17.25 in. |
Length | 8.91 in. |
Maximum Flow Rate | 45 GPM |
Maximum Head Height | 55 in. |
Product Weight | 65 lbs. |
Water Connection | 1-1/4" |
Width | 11.34 in. |
Dimensions and Measurements
Cord Length | 15 in. |
Discharge Diameter | 1.5 in. |
Height | 17.25 in. |
Length | 8.91 in. |
Maximum Flow Rate | 45 GPM |
Maximum Head Height | 55 in. |
Product Weight | 65 lbs. |
Water Connection | 1-1/4" |
Width | 11.34 in. |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Material | Cast Iron |
Material Shaft | Steel |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Material | Cast Iron |
Material Shaft | Steel |
Electrical and Operational Information
Amperage | 11 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3400 |
RPM | 3400 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 11 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3400 |
RPM | 3400 |
Voltage | 120 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 807 |
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 807 |
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
