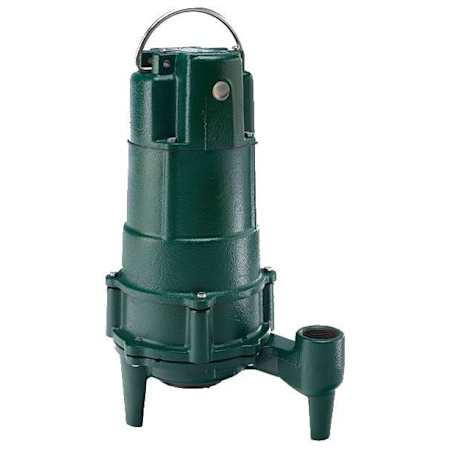

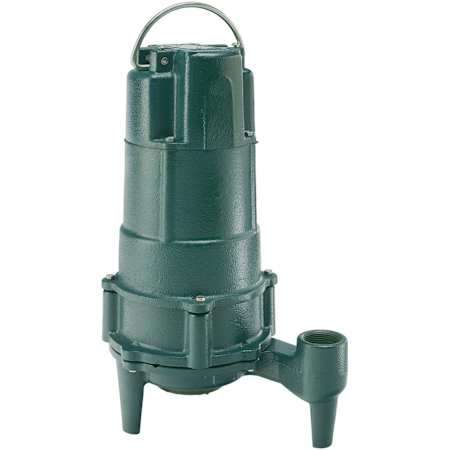

Zoeller 3/4 HP Cast Iron Residential Grinder Pump (1-1/4") (Non-Automatic) (230V)
Model: 805-0004|Item: bci5171603
from theModel 805 Collection
Details
Features:
- ***NON-AUTOMATIC - Requires Float Switch***
- Zoeller Shark N805 - Residential Grinder Pump (230V): World's first integral automatic grinder; Up to 45' Max Head
- 3/4 HP Thermally Protected Motor (230V): Oil-filled and hermetically sealed to prevent overheating
- Stainless Steel Tri-Slice Cutter Technology: 3 Independent cutting channels provide over 250,000 cuts/min
- Cast Iron Motor Housing and Pump Housing: Provides heat dissipation for extended life cycle and durability
- Carbon/Ceramic Shaft Seal and Upper/Lower Ball Bearings: Assures maximum protection for extended pump life
- 1-1/4" NPT Discharge: Easily connects to your current discharge line
- Stainless Steel Screws, Bolts and Lifting Handle
- Designed to minimize corrosion in hard environments
- Makes this pump easy to install, service and remove
- Entire unit is pressure tested after assembly
- Industry Leading Quality Control
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 15 in. |
Discharge Diameter | 1.25 in. |
Maximum Head Height | 45 in. |
Dimensions and Measurements
Cord Length | 15 in. |
Discharge Diameter | 1.25 in. |
Maximum Head Height | 45 in. |
Characteristics and Features
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Material Shaft | Steel |
Characteristics and Features
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Material Shaft | Steel |
Electrical and Operational Information
Amperage | 4 |
Electrical Phases | 1 |
Horsepower | 0.75 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3400 |
RPM | 3400 |
Voltage | 230 |
Electrical and Operational Information
Amperage | 4 |
Electrical Phases | 1 |
Horsepower | 0.75 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3400 |
RPM | 3400 |
Voltage | 230 |
Warranty and Product Information
Collection | Model 805 |
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Collection | Model 805 |
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
