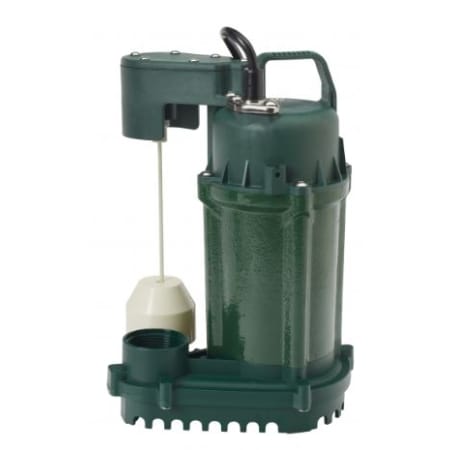

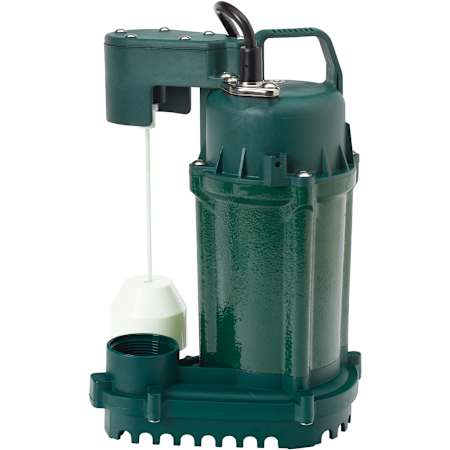

Zoeller Aqua-Mate Model 75 1/2 HP 115V Submersible Sump Pump
Model: 75-0001|Item: bci3629286
from theAqua-Mate Collection
Details
Zoeller 75-0001 Features:
- Oil-filled, hermetically-sealed motor with automatic reset thermal overload protection
- Rugged, cast iron motor housing with corrosion-resistant, baked-on enamel finish
- Efficient heat sink for heat dissipation
- Engineered plastic base and pump housing with no screen
- Reliable integrated vertical switch
- Carbon and ceramic rotary seal
- Watertight, NBR rubber seal between motor and cover
- Stainless steel screws and hardware
- 100% factory tested after assembly
- Passes 3/8” spherical solids
- On point: 8-1/3”
Zoeller 75-0001 Specifications:
- Height: 12-3/8"
- Width: 8-3/32"
- Motor: 1/2 HP
- Voltage: 115
- Hertz: 60
- RPM: 3400
- Discharge Size: 1-1/2" NPT
- Max Flow Rate: 50 gallons per minute
- Max Operating Temperature: 104
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 50 |
Height | 12.375 in. |
Length | 7.28 in. |
Maximum Flow Rate | 50 GPM |
Maximum Head Height | 25 in. |
Product Weight | 16.5 lbs. |
Water Connection | 1-1/2" |
Width | 8.094 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 50 |
Height | 12.375 in. |
Length | 7.28 in. |
Maximum Flow Rate | 50 GPM |
Maximum Head Height | 25 in. |
Product Weight | 16.5 lbs. |
Water Connection | 1-1/2" |
Width | 8.094 in. |
Characteristics and Features
Impeller Material | Plastic |
Material | Cast Iron |
Material Shaft | Stainless Steel |
Characteristics and Features
Impeller Material | Plastic |
Material | Cast Iron |
Material Shaft | Stainless Steel |
Electrical and Operational Information
Amperage | 5.6 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Maximum Fluid Temperature | 104 °F |
Motor RPM | 3400 |
Operating Temperature (Max) | 104 °F |
Voltage | 115 |
Electrical and Operational Information
Amperage | 5.6 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.5 |
Maximum Fluid Temperature | 104 °F |
Motor RPM | 3400 |
Operating Temperature (Max) | 104 °F |
Voltage | 115 |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 75 |
Country Of Origin | Taiwan |
Made in America | No |
Manufacturer Warranty | 2 Years |
Warranty and Product Information
Approved for Commercial Use | Yes |
Collection | Model 75 |
Country Of Origin | Taiwan |
Made in America | No |
Manufacturer Warranty | 2 Years |
