Zoeller
Zoeller 3/10 HP Premium Cast Iron Submersible Sump Pump with Vertical Float Switch N/A
Zoeller 3/10 HP Premium Cast Iron Submersible Sump Pump with Vertical Float Switch N/A
Alternate Image
Alternate Image

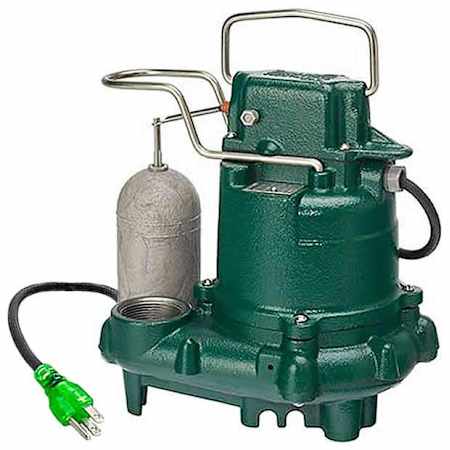

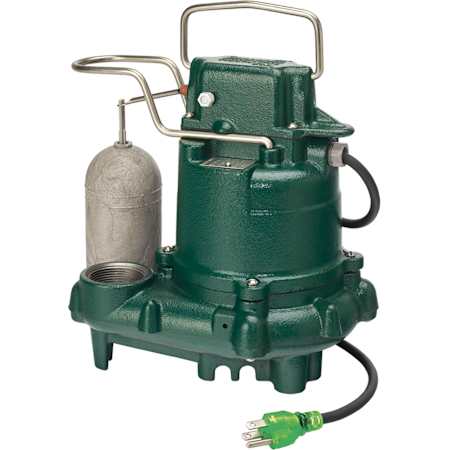

Zoeller 3/10 HP Premium Cast Iron Submersible Sump Pump with Vertical Float Switch

Model: 63-0001
|
Item: bci3629299

$315.75
122 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Monday, March 9th
-
Return & Shipping Details

Details

The Model M63 Sump Pump is a fully automatic 0. 30 HP pump for use in basement sump applications. This Zoeller 0. 30 HP sump pump is packed with features, including the most advanced switch technology available. The green Zoeller LED plug allows you to see that it has power even when it is installed in a dark basement or crawl space. By design, the solid float cannot become waterlogged, so it is always buoyant and able to turn the pump on when necessary. The identification tag, float guard, handle, switch arm, and hardware are made of high-quality corrosion resistant stainless steel. Every pump is submerged in water and tested to its published performance curve. Designed to deliver peace of mind right out of the box.

Features:

  • Comes standard with the Zoeller LED Plug that allows you to check for power at a quick glance
  • Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
  • Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
  • Cast iron vortex impeller to allow free passage of solids which prevents clogging and lessens downtime
  • Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
  • Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
  • Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
  • Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
  • 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
  • Comes with a 5-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

Specifications:

  • Horsepower: 0.3
  • Impeller Material: Cast Iron
  • Discharge Diameter: 1-1/2"
  • Maximum Head Height: 19 ft
  • Amperage: 9.7
Additional Zoeller Links

Dimensions and Measurements

Cord Length
9 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
43
Height
10.2 in.
Length
12.6 in.
Maximum Flow Rate
43 GPM
Maximum Head Height
19 ft.
Product Weight
22 lbs.
Water Connection
1-1/2"
Width
7.5 in.

Dimensions and Measurements

Cord Length
9 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
43
Height
10.2 in.
Length
12.6 in.
Maximum Flow Rate
43 GPM
Maximum Head Height
19 ft.
Product Weight
22 lbs.
Water Connection
1-1/2"
Width
7.5 in.

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Material
Cast Iron
Material Shaft
Steel
Submersible
Yes

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Cast Iron
Manual Override
No
Material
Cast Iron
Material Shaft
Steel
Submersible
Yes

Electrical and Operational Information

Amperage
9.7
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Electrical Phases
1
Horsepower
0.3
Maximum Fluid Temperature
130 °F
Motor RPM
1550
Operating Temperature (Max)
130 °F
Starting Amps
25.9 Amps
Voltage
120

Electrical and Operational Information

Amperage
9.7
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Electrical Phases
1
Horsepower
0.3
Maximum Fluid Temperature
130 °F
Motor RPM
1550
Operating Temperature (Max)
130 °F
Starting Amps
25.9 Amps
Voltage
120

Warranty and Product Information

Approved for Commercial Use
Yes
Collection
Model 63
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3

Warranty and Product Information

Approved for Commercial Use
Yes
Collection
Model 63
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3
