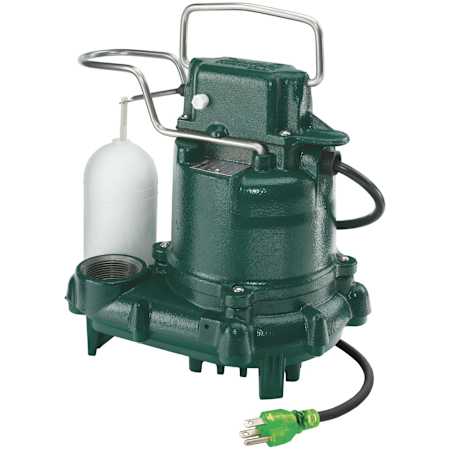

Zoeller 3/10 HP Cast Iron Submersible Sump / Effluent Pump with Vertical Float (25' Cord) (230V)
Model: 53-0026|Item: bci5171661
from theModel 53 Collection
Details
Features:
- 230V Automatic Submersible Sump / Effluent Pump: Ideal for average water removal
- Cast Iron Switch Case, Motor and Pump Housing: Designed for rapid heat dissipation and extended life
- Engineered Thermoplastic Base: Offers years of reliable, trouble-free operation
- Vertical Float Switch: Solid and buoyant polypropylene design
- 3/10 HP Thermally Protected Motor (230V): Oil-filled and hermetically sealed to prevent overheating
- Carbon and Ceramic Shaft Seal: Assures maximum protection for extended pump life
- Clog-Resistant Design
- No screen to interfere with flowing debris
- Capable of passing 1/2" diameter solids
- 25' Power Cord: UL Listed 3-wire neoprene cord and plug
- Industry Leading Quality Control: Entire unit is pressure tested after assembly
- 3-Year Limited Warranty
Dimensions and Measurements
Cord Length | 300 in. |
Discharge Diameter | 2 in. |
Maximum Head Height | 19 in. |
Dimensions and Measurements
Cord Length | 300 in. |
Discharge Diameter | 2 in. |
Maximum Head Height | 19 in. |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material Shaft | Steel |
Submersible | Yes |
Switch Type | Automatic |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material Shaft | Steel |
Submersible | Yes |
Switch Type | Automatic |
Electrical and Operational Information
Amperage | 4.8 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Voltage | 230 |
Electrical and Operational Information
Amperage | 4.8 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 0.33 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Voltage | 230 |
Warranty and Product Information
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Manufacturer Warranty | 3 Year |
