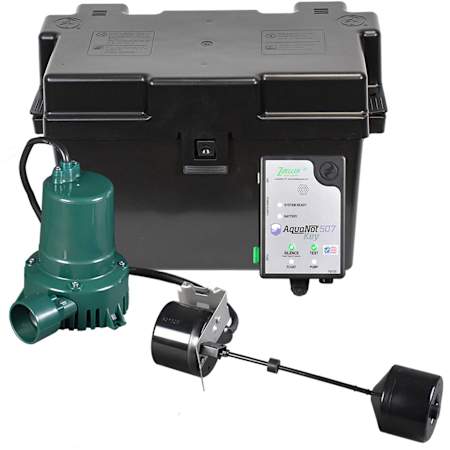

Zoeller Aquanot Key 507 Key Battery Backup Sump Pump System (660 GPH @ 10')
Model: 507-0005|Item: bci1999434
Details
Zoeller AquaNot® Key 507 is Zoeller backup pump system that can be paired with a primary sump pump. It comes equipped with a battery-powered sump pump designed to provide backup support to the primary sump pump. The AquaNot 507 turns on during high flow events or takes over in the event of a power outage. The AquaNot Key 507 is capable of providing up to 6 hZoellers of continuous pump run time. This equates to about 2 days of backup in the event of a power outage. With the AquaNot Key 507, you can be 100% certain and confident about Zoeller flood prevention with real time peace of mind from anywhere.
Features:
- Extra protection when the primary AC pump fails due to power outages
- Battery burn out and overcharge protection
- 24/7 backup support for your primary sump pump
- Self-testing and self-aware controller monitors system 24/7
- Engineered, glass-filled thermoplastic vortex impellers
- Lockable battery box, Battery not included
- 3-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind
Dimensions and Measurements
Cord Length | 120 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 23 |
Height | 11.28 in. |
Length | 9.5 in. |
Maximum Head Height | 17.5 ft. |
Product Weight | 28 lbs. |
Width | 8.79 in. |
Dimensions and Measurements
Cord Length | 120 in. |
Discharge Diameter | 1.5, 2 in. |
Flow Rate (GPM) | 23 |
Height | 11.28 in. |
Length | 9.5 in. |
Maximum Head Height | 17.5 ft. |
Product Weight | 28 lbs. |
Width | 8.79 in. |
Included Components
Battery Included | No |
Included Components
Battery Included | No |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Handles Solids | No |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Manual Override | No |
Characteristics and Features
Base Material | Plastic |
Float Type | Vertical Switch |
Handles Solids | No |
Housing Material | Thermoplastic |
Impeller Material | Plastic |
Manual Override | No |
Electrical and Operational Information
Amperage | 10 |
Backup GPH @ 0 feet | 3180 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2520 GPH |
Backup GPH @ 20 feet | 2040 GPH |
Backup GPH @ 5 feet | 3180 GPH |
Electrical Phases | 1 |
Maximum Fluid Temperature | 120 °F |
Voltage | 12 |
Electrical and Operational Information
Amperage | 10 |
Backup GPH @ 0 feet | 3180 GPH |
Backup GPH @ 10 feet | 3000 GPH |
Backup GPH @ 15 feet | 2520 GPH |
Backup GPH @ 20 feet | 2040 GPH |
Backup GPH @ 5 feet | 3180 GPH |
Electrical Phases | 1 |
Maximum Fluid Temperature | 120 °F |
Voltage | 12 |
Warranty and Product Information
Collection | Sentry, Model 507 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 2 |
Warranty and Product Information
Collection | Sentry, Model 507 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 2 |
