Zoeller
Zoeller 23.3 GPM (3/4") Cast Iron High Capacity Transfer Pump N/A
Zoeller 23.3 GPM (3/4") Cast Iron High Capacity Transfer Pump N/A
Alternate Image
Alternate Image

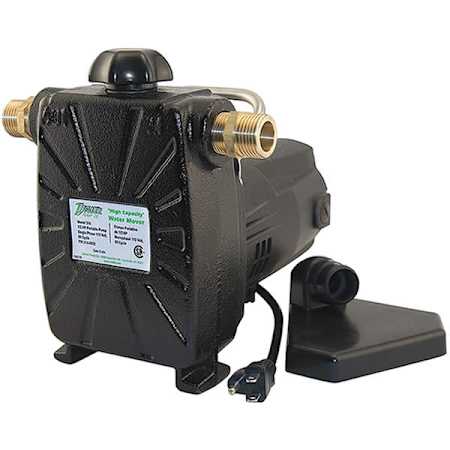

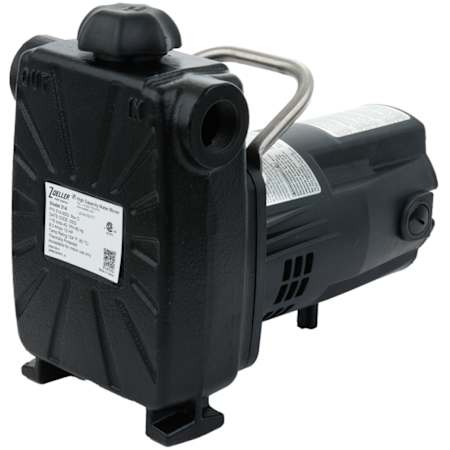

Zoeller 23.3 GPM (3/4") Cast Iron High Capacity Transfer Pump

Model: 314-0002
|
Item: bci3629287

$378.75
7 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Monday, March 16th
-
Return & Shipping Details

Details

The Model 314 Transfer Pump is Zoeller most powerful portable transfer pump. It generates almost 50 PSI and more than 1,400 gallons per hZoeller in pumping capacity. This is the reason it has earned the nickname, "The Water Mover. " The Model 314's stainless steel lifting handle makes it easy to transport. This is a handy feature since it is often moved from job-to-job. The threaded inlet and outlet on the pump make hose connections quick and easy, and because they're brass fittings, there is no reason to worry that the threads will become damaged from repeated use. The durable cast iron pump housing and easily serviced brush motor ensure trouble-free operation. Like many of Zoeller pumps, the engineered plastic impeller's smooth surface allows water to flow through the pump with maximum efficiency. For added convenience, an over-sized priming cap is included. No tools are required to prime the pump. We included a 20' power cord on this pump. We know that when you need to get the pump going, dealing with an extension cord is an added hassle. Zoeller goal was to build in all of the critical features plus a few more that you might want in a high capacity, dependable, transfer pump.

Features:

  • Designed to be dependable and durable enough to withstand frequent and repeated use
  • Comes with a 20' power cord so you don't have to drag out the extension cord
  • Cast iron pump housing for long life
  • Engineered thermoplastic impeller designed for durability
  • The handle on the priming plug eliminates the need for extra tools to prime the pump
  • 1-year limited warranty: this model comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind

Specifications:

  • Horsepower: 0.5
  • Impeller Material: Engineered Plastic
  • Discharge Diameter: 3", 4"
  • Maximum Head Height: 110 ft
  • Amperage: 8
Additional Zoeller Links

Dimensions and Measurements

Cord Length
240 in.
Flow Rate (GPM)
23.3
Inlet Diameter
0.75 in.
Maximum Flow Rate
23 GPM
Outlet Diameter
0.75 in.
Product Weight
17 lbs.
Water Connection
3/4"

Dimensions and Measurements

Cord Length
240 in.
Flow Rate (GPM)
23.3
Inlet Diameter
0.75 in.
Maximum Flow Rate
23 GPM
Outlet Diameter
0.75 in.
Product Weight
17 lbs.
Water Connection
3/4"

Characteristics and Features

Handles Solids
No
Impeller Material
Plastic
Material
Cast Iron
Submersible
No

Characteristics and Features

Handles Solids
No
Impeller Material
Plastic
Material
Cast Iron
Submersible
No

Electrical and Operational Information

Frequency
60 Hertz
Horsepower
0.5
Operating Temperature (Max)
104 °F
Self Priming
No
Suction Head
15 ft.
Voltage
120

Electrical and Operational Information

Frequency
60 Hertz
Horsepower
0.5
Operating Temperature (Max)
104 °F
Self Priming
No
Suction Head
15 ft.
Voltage
120

Warranty and Product Information

Approved for Commercial Use
Yes
Manufacturer Warranty
1 Year

Warranty and Product Information

Approved for Commercial Use
Yes
Manufacturer Warranty
1 Year
