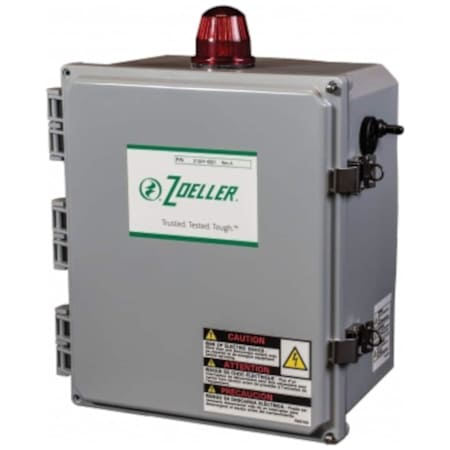

Zoeller Pivot Simplex Control Panel with Alarm 115/200/230V 1PH (0-20A) Indoor/Outdoor NEMA 4X Enclosure

PLEASE NOTE - REPLACES Zoeller 10-0125

Features:

• Zoeller Pivot Simplex Control Panel (31354-0001)


• Zoeller Pivot Simplex Control Panel (31324-0001)
  • For a single pump in residential and commercial applications
  • Single Phase, 115V, 200-230V (7-15A Max)
  • Single Phase, 115 / 200 / 230V (0-20A Max)


• Requires 3-Variable Level Float Switches (Not Included)


• NEMA 4X Watertight Enclosure (12" x 10" x 6")


• NEMA 4X Watertight Enclosure
  • Allows for indoor and outdoor installations
  • Allows for indoor and outdoor installations; -40°F - 140°F
  • Lockable latch for added security


• Individual Pump Run (Green) Pilot Light


• RED / AMBER / GREEN LEDs
  • For switch indicators, Pump Run, High Water, System Ready and HOA
  • Easily see which pump is running


• 360° Red Alarm Beacon


• Red Alarm Beacon
  • Provides a visual alert when a high water situation occurs


• High Water Alarm

: 95 dBA Audible alarm so you can also hear when an event occurs

• User-Friendly Controls

: Hand/Off/Auto Toggle switch
: Alarm Test/Silence switch

• Adjustable Settings


• Auxiliary Dry Contact
  • Allows for connection for remote alarm devices/dialers etc.
  • "Smart" or "Standard" float logic
  • See spec sheet and install instructions for more details


• 5-Year Limited Warranty


• 120V Control Circuit and Alarm
  • Circuit breaker protection
  • Max Alarm and Control Circuit Power Consumption: 32W


• Includes (4) Enclosure Mounting Brackets


• 5-Year Limited Warranty
