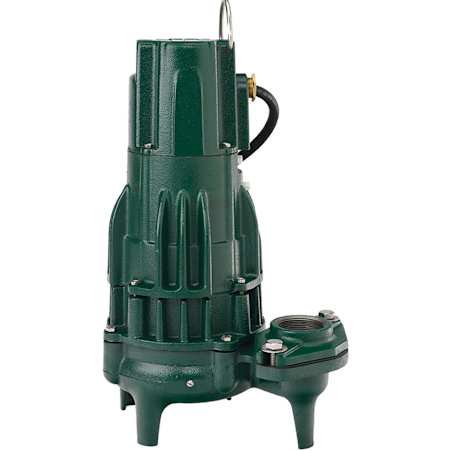

Zoeller 2HP 230V High Head Manual Submersible Sewage Pump
Model: 295-0004|Item: bci1999424
$1,422.00
1 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse Tomorrow, December 29th
-Details
2HP 230V High Head Manual Submersible Sewage Pump
Zoeller 295-0004 Features:
- Bronze non-clogging vortex impeller design
- Durable cast construction
- Cast iron switch case, base, motor, and pump housing
- No sheet metal parts to rust and corrode
- Stainless steel screws, bolts, float rod, handle, guard, arm, and seal assembly
- 240" UL listed 3-wire neoprene cord and plug
- Oil-filled, hermetically sealed motor with automatic reset thermal overload protection
- Stainless steel carbon and ceramic rotary shaft seal
- Corrosion resistant powder coated epoxy finish
- Upper and lower ball bearings running in oil bath
- Passes 2" spherical solids
Zoeller 295-0004 Specifications:
- Height: 19.3125"
- Length: 10.5
- Width: 12.875"
- Category: Sewage Pumps
- Connection Size: 2" NPT
- Flow Rate: 214 gallons per minute
- 2 HP motor
- Maximum Head Height: 75'
- Voltage: 230V
- Weight: 94 lbs

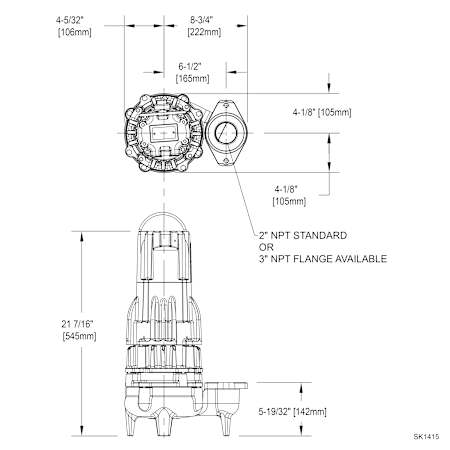

Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 214 |
Height | 19.313 in. |
Length | 10.5 in. |
Maximum Head Height | 75 in. |
Product Weight | 94 lbs. |
Water Connection | 2" |
Width | 12.87 in. |
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 214 |
Height | 19.313 in. |
Length | 10.5 in. |
Maximum Head Height | 75 in. |
Product Weight | 94 lbs. |
Water Connection | 2" |
Width | 12.87 in. |
Characteristics and Features
Impeller Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Water Connection Type | NPT |
Characteristics and Features
Impeller Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 17.1 |
Electrical Phases | 1 |
Horsepower | 2 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
RPM | 3450 |
Voltage | 230 |
Electrical and Operational Information
Amperage | 17.1 |
Electrical Phases | 1 |
Horsepower | 2 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
RPM | 3450 |
Voltage | 230 |
Warranty and Product Information
Certifications | UL |
Collection | Model 295 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Years |
Warranty and Product Information
Certifications | UL |
Collection | Model 295 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Years |
