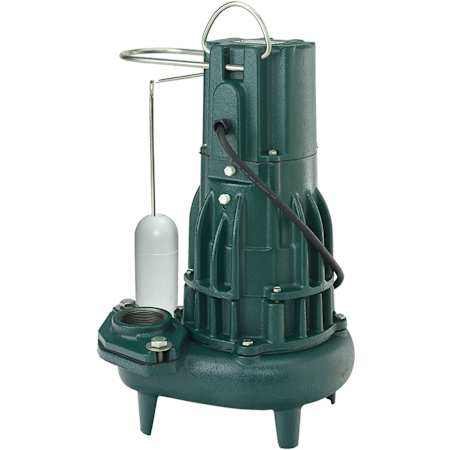

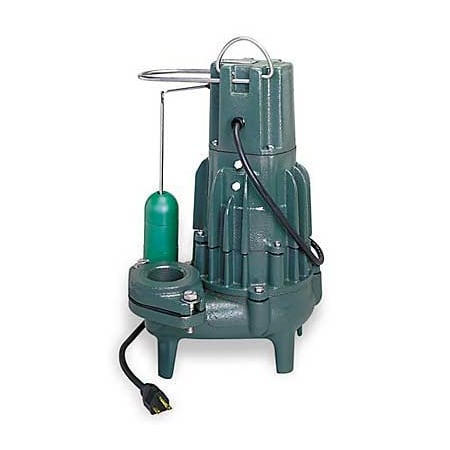

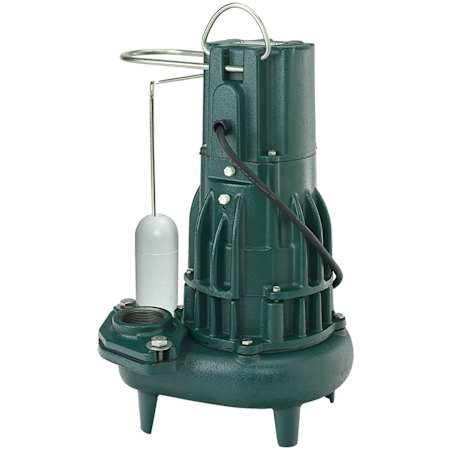

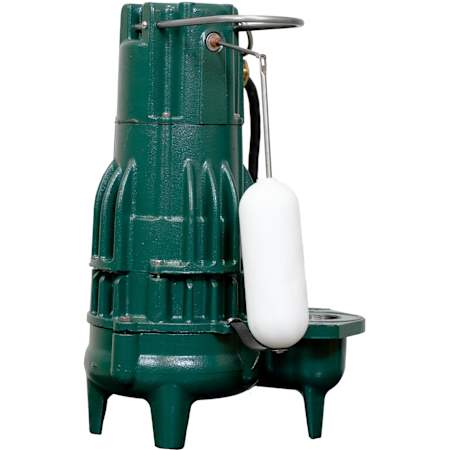

Zoeller 1/2 HP 115V Automatic Submersible Sewage Pump
Model: 292-0001|Item: bci1999422
$1,194.00
14 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse Tomorrow, February 18th
-Details
1/2 HP 115V Automatic Submersible Sewage Pump
Zoeller 292-0001 Features:
- Bronze non-clogging vortex impeller design
- Durable cast construction
- Cast iron switch case, base, motor, and pump housing
- No sheet metal parts to rust and corrode
- Stainless steel screws, bolts, float rod, handle, guard, arm, and seal assembly
- 240" UL listed 3-wire neoprene cord and plug
- Oil-filled, hermetically sealed motor with automatic reset thermal overload protection
- Stainless steel carbon and ceramic rotary shaft seal
- Corrosion resistant powder coated epoxy finish
- Upper and lower ball bearings running in oil bath
- Passes 2" spherical solids
Zoeller 292-0001 Specifications:
- Height: 19.3125"
- Length: 10.5
- Width: 12.875"
- Category: Sewage Pumps
- Connection Size: 2" NPT
- Flow Rate: 140 gallons per minute
- 1/2 HP motor
- Maximum Head Height: 40'
- Voltage: 115V
- Weight: 87 lbs
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 140 |
Height | 19.313 in. |
Length | 10.5 in. |
Maximum Head Height | 40 in. |
Product Weight | 87 lbs. |
Water Connection | 2" |
Width | 12.87 in. |
Dimensions and Measurements
Cord Length | 20 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 140 |
Height | 19.313 in. |
Length | 10.5 in. |
Maximum Head Height | 40 in. |
Product Weight | 87 lbs. |
Water Connection | 2" |
Width | 12.87 in. |
Characteristics and Features
Impeller Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Water Connection Type | NPT |
Characteristics and Features
Impeller Material | Cast Iron |
Material Casing | Iron |
Material Housing | Iron |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 15 |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
RPM | 3450 |
Voltage | 115 |
Electrical and Operational Information
Amperage | 15 |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
RPM | 3450 |
Voltage | 115 |
Warranty and Product Information
Certifications | UL |
Collection | Model 292 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Years |
Warranty and Product Information
Certifications | UL |
Collection | Model 292 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Years |
