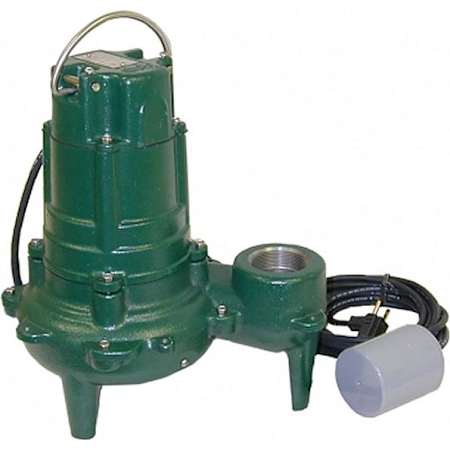

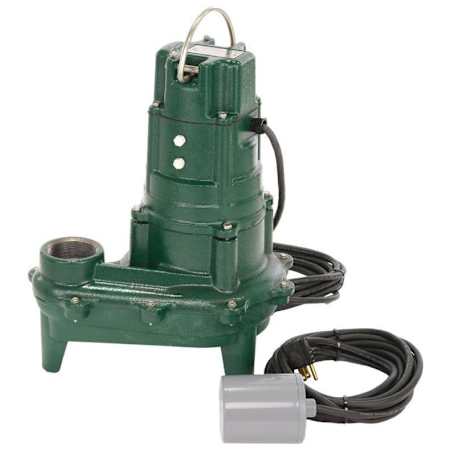

Zoeller 1-HP Cast Iron Sewage Pump with Variable Piggy Back Float Switch (20' Cord)
Model: 270-0005|Item: bci3070799
$769.50
18 In Stock
Details
Features:
- Submersible Sewage / Ejector Pump: Ideal for above average sewage removal
- Piggyback Variable Level Float Switch w/ 20-Foot Cord: Fully-adjustable, can accommodate longer pump cycles
- Powder Coated Epoxy Finish Cast Iron Pump and Motor Housing: A durable, corrosion-resistant exterior for harsh conditions
- No Sheet Metal Parts To Rust Or Corrode: Stainless steel screws, guard, handle, arm and seal assembly
- Thermally Protected 1 HP PSC Motor (3450 RPM): Oil-filled and hermetically sealed to prevent overheating w/ auto reset
- Non-Clogging Vortex Engineered Plastic Impeller: Capable of passing up to 2" spherical solids
- Carbon/Ceramic Shaft Seal and Upper Sleeve/Lower Ball Bearings: Assures maximum protection for extended pump life
- Engineered Thermoplastic Base: No need to worry about a rusty base or pump leg again
- Neoprene Square Ring and Gasket: Completely submersible, watertight and dust tight
- Industry Leading Quality Control: Entire unit is pressure tested after assembly
Dimensions and Measurements
Cord Length | 240 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 132 |
Height | 14.9375 in. |
Maximum Head Height | 29 in. |
Water Connection | 2" |
Width | 13.0625 in. |
Dimensions and Measurements
Cord Length | 240 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 132 |
Height | 14.9375 in. |
Maximum Head Height | 29 in. |
Water Connection | 2" |
Width | 13.0625 in. |
Characteristics and Features
Base Material | Plastic |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Material | Cast Iron |
Material Housing | Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Plastic |
Float Type | Tether Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | Yes |
Material | Cast Iron |
Material Housing | Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 15 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
RPM | 3450 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 15 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Horsepower | 1 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 3450 |
RPM | 3450 |
Voltage | 120 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | No |
Certifications | UL |
Collection | Model 270 |
Commercial Warranty | 1 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | No |
Certifications | UL |
Collection | Model 270 |
Commercial Warranty | 1 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 1 Year |
