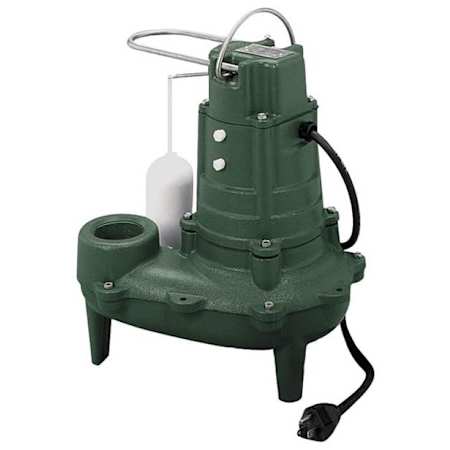

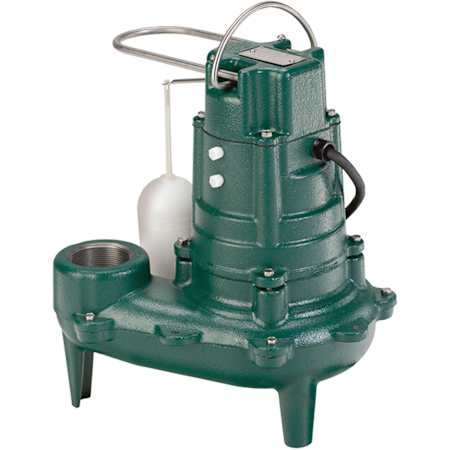

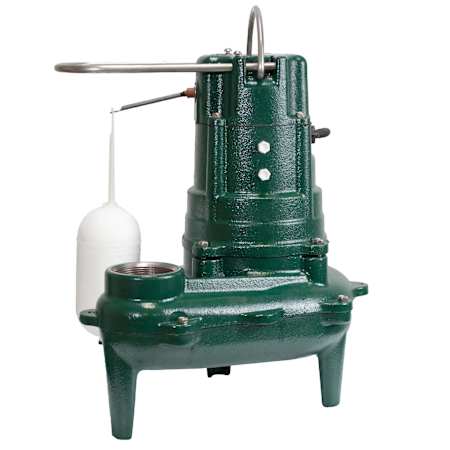

Zoeller 1/2 HP Automatic Submersible Sewage and Effluent Pump
Model: 267-0001|Item: bci1999416
Details
Zoeller 267-0001 Features:
- Non-clogging vortex impeller design
- Float operated, submersible (NEMA 6) 2-pole switch
- Durable cast iron construction
- Cast iron base
- Engineered plastic impeller with metal insert
- Not effected by materials normally found in drainage and sewage sumps
- Stainless steel screws, bolts, handle, guard, arm, and seal assembly
- 120" UL listed 3-wire neoprene cord and plug
- Oil-filled, hermetically sealed motor with automatic reset thermal overload protection
- Oil lubricated bearings
- Carbon and ceramic shaft seal
- Passes 2" spherical solids
- Corrosion resistant powder coated epoxy finish
Zoeller 267-0001 Specifications:
- Height: 14.28"
- Length: 11.21875
- Width: 13.0625"
- Category: Sewage Pumps
- Connection Size: 2" NPT
- Flow Rate: 128 gallons per minute
- 1/2 HP motor
- Maximum Head Height: 20.5'
- Voltage: 115V
- Weight: 47.5 lbs
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 128 |
Height | 14.28 in. |
Length | 11.219 in. |
Maximum Head Height | 20.5 in. |
Product Weight | 47.5 lbs. |
Water Connection | 2" |
Width | 13.06 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 128 |
Height | 14.28 in. |
Length | 11.219 in. |
Maximum Head Height | 20.5 in. |
Product Weight | 47.5 lbs. |
Water Connection | 2" |
Width | 13.06 in. |
Characteristics and Features
Impeller Material | Plastic |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Water Connection Type | NPT |
Characteristics and Features
Impeller Material | Plastic |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.4 |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
RPM | 1725 |
Voltage | 115 |
Electrical and Operational Information
Amperage | 9.4 |
Electrical Phases | 1 |
Horsepower | 0.5 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
RPM | 1725 |
Voltage | 115 |
Warranty and Product Information
Certifications | UL |
Collection | Model 267 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Years |
Warranty and Product Information
Certifications | UL |
Collection | Model 267 |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Years |
