Zoeller
Zoeller 4/10 HP Cast Iron Sewage Pump (2") (Non-Automatic) N/A
Zoeller 4/10 HP Cast Iron Sewage Pump (2") (Non-Automatic) N/A
Alternate Image

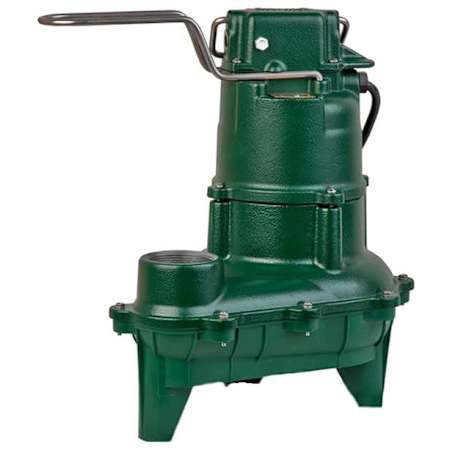

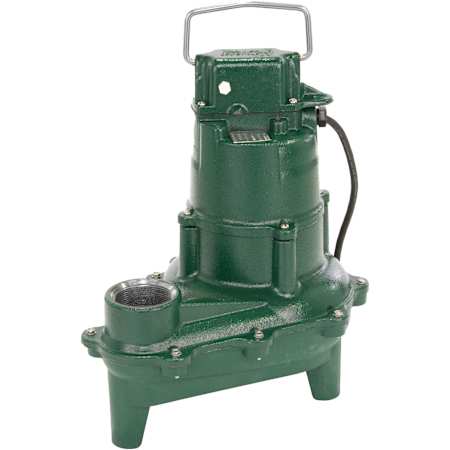

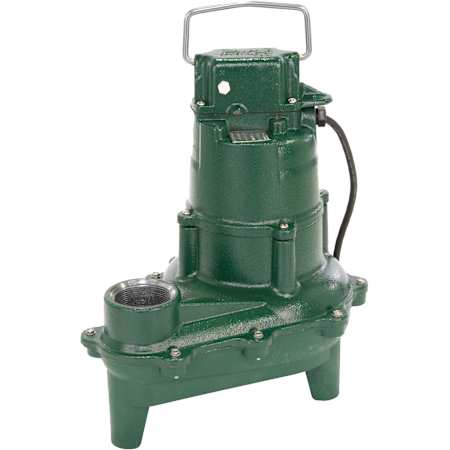

Zoeller 4/10 HP Cast Iron Sewage Pump (2") (Non-Automatic)

Model: 264-0002
|
Item: bci3629282

$399.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • ***NON-AUTOMATIC - Requires Float Switch or Controller***

  • Submersible Sewage/Ejector Pump: Ideal for average sewage removal

  • Cast Iron Switch Case, Motor and Pump Housing: Designed for rapid heat dissipation and extended life

  • Engineered Thermoplastic Base: Offers years of reliable, trouble-free operation

  • Thermally Protected Motor: Oil-filled and hermetically sealed to prevent overheating

  • Carbon and Ceramic Shaft Seal: Assures maximum protection for extended pump life

  • Clog-Resistant Design: No screen to interfere with flowing debris

  • Capable Of Passing 2" Spherical Solids: Designed for sewage or semi-solid water removal

  • Industry Leading Quality Control: Entire unit is pressure tested after assembly

  • Not Rec'd For Installations w/ Over 15 ft. Total Dynamic Head

  • 3-Year Warranty

Additional Zoeller Links

Manufacturer Resources

Owners ManualSpecification Sheet

Dimensions and Measurements

Cord Length
15 in.
Discharge Diameter
1.5 in.
Height
14.75 in.
Length
11.36 in.
Maximum Flow Rate
90 GPM
Maximum Head Height
18 in.
Product Weight
34.5 lbs.
Water Connection
2"
Width
13.11 in.

Dimensions and Measurements

Cord Length
15 in.
Discharge Diameter
1.5 in.
Height
14.75 in.
Length
11.36 in.
Maximum Flow Rate
90 GPM
Maximum Head Height
18 in.
Product Weight
34.5 lbs.
Water Connection
2"
Width
13.11 in.

Characteristics and Features

Base Material
Plastic
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material
Cast Iron
Material Shaft
Steel
Submersible
Yes

Characteristics and Features

Base Material
Plastic
Handles Solids
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Manual Override
Yes
Material
Cast Iron
Material Shaft
Steel
Submersible
Yes

Electrical and Operational Information

Amperage
9.4
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.4
Maximum Fluid Temperature
130 °F
Motor RPM
1725
Operating Temperature (Max)
130 °F
RPM
1725
Starting Amps
29.2 Amps
Voltage
120

Electrical and Operational Information

Amperage
9.4
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.4
Maximum Fluid Temperature
130 °F
Motor RPM
1725
Operating Temperature (Max)
130 °F
RPM
1725
Starting Amps
29.2 Amps
Voltage
120

Warranty and Product Information

Approved for Commercial Use
Yes
Collection
Model 264
Commercial Warranty
3 Year
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Year

Warranty and Product Information

Approved for Commercial Use
Yes
Collection
Model 264
Commercial Warranty
3 Year
Country Of Origin
USA
Made in America
Yes
Manufacturer Warranty
3 Year
