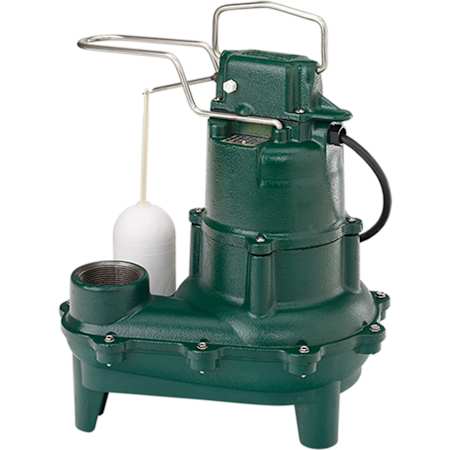

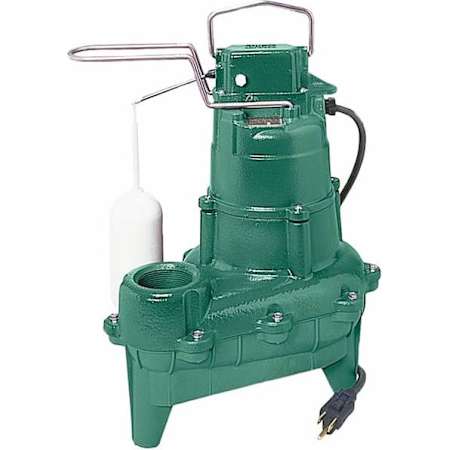

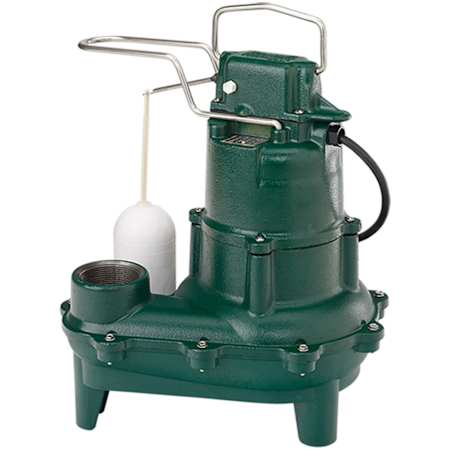

Zoeller 4/10 HP Cast Iron Sewage Pump (2") with Vertical Float
Model: 264-0001|Item: bci1999415
$435.00
133 In Stock
Details
Features:
- Automatic Submersible Sewage/Ejector Pump: Ideal for average sewage removal
- Cast Iron Switch Case, Motor and Pump Housing: Designed for rapid heat dissipation and extended life
- Engineered Thermoplastic Base: Offers years of reliable, trouble-free operation
- Vertical Float Switch: Solid and buoyant polypropylene design
- Thermally Protected Motor: Oil-filled and hermetically sealed to prevent overheating
- Carbon and Ceramic Shaft Seal: Assures maximum protection for extended pump life
- Clog-Resistant Design: No screen to interfere with flowing debris
- Capable Of Passing 2" Spherical Solids: Designed for sewage or semi-solid water removal
- Industry Leading Quality Control: Entire unit is pressure tested after assembly
- Not Rec'd For Installations w/ Over 15 ft. Total Dynamic Head
- 3-Year Warranty
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 90 |
Height | 14.75 in. |
Length | 11.36 in. |
Maximum Head Height | 18 in. |
Product Weight | 34.5 lbs. |
Water Connection | 2" |
Width | 13.14 in. |
Dimensions and Measurements
Cord Length | 10 in. |
Discharge Diameter | 2 in. |
Flow Rate (GPM) | 90 |
Height | 14.75 in. |
Length | 11.36 in. |
Maximum Head Height | 18 in. |
Product Weight | 34.5 lbs. |
Water Connection | 2" |
Width | 13.14 in. |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Iron |
Float Type | Vertical Switch |
Handles Solids | Yes |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Material Casing | Iron |
Material Housing | Iron |
Material Shaft | Steel |
Submersible | Yes |
Water Connection Type | NPT |
Electrical and Operational Information
Amperage | 9.4 |
Electrical Phases | 1 |
Horsepower | 0.4 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
RPM | 1725 |
Starting Amps | 29.2 Amps |
Voltage | 120 |
Electrical and Operational Information
Amperage | 9.4 |
Electrical Phases | 1 |
Horsepower | 0.4 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1725 |
RPM | 1725 |
Starting Amps | 29.2 Amps |
Voltage | 120 |
Warranty and Product Information
Certifications | UL |
Collection | Model 264 |
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
Warranty and Product Information
Certifications | UL |
Collection | Model 264 |
Commercial Warranty | 3 Year |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Year |
