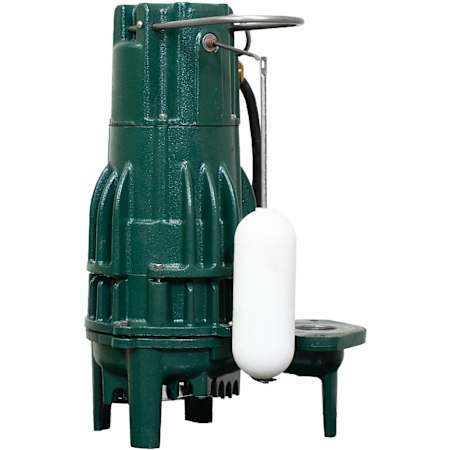

Zoeller Model D188 1-1/2 HP Nonautomatic Effluent Pump, 230V, 1PH

The Model D188 automatic effluent pump is designed to remove effluent or ground water in effluent applications. The 1-1/2 HP D188 is a time-tested and reliable effluent pump. The D188 is a fully automatic float-operated effluent pump. The white polypropylene float is solid so it cannot become waterlogged. This ensures that it is always buoyant and able to turn the pump on when necessary. The pump's vortex impeller allows it to pass 3/4" spherical solids. The impeller's clearance in relation to the pump housing allows water and solids to pass freely through the pump. This combination of design features lessens the chance of clogging and downtime. The Model 188's motor housing, pump housing and base are each constructed of cast iron. The pump's identification tag, handle and hardware are made of non-corrodible stainless steel. This attention to detail ensures that the Model 188 is able to withstand the most demanding effluent applications. Every pump is submerged in water and tested to its published performance curve, ensuring it meets your expectations and delivers peace of mind right-out-of-the-box.

Features:

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Automatic pump with a time-tested, reliable, preset, built-in snap action switch that makes for easy installation
• Corrosion resistant cast iron vortex impeller to allow free passage of 3/4" spherical solids which prevents clogging and increases reliability
• Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
• Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
• Stainless steel screws, handle, and hardware to prevent rust and corrosion
• 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
• Comes with a 1-year limited warranty giving you protection over your investment and the peace of mind you expect in a quality product

Specifications::

• Impeller Material: Cast Iron
• Discharge Diameter: 1.5
• Maximum Head Height: 91
• Amperage: 14
