Zoeller
Zoeller 1/2 HP High Head Flow-Mate Sump/Effluent Pump with Vertical Float Switch N/A

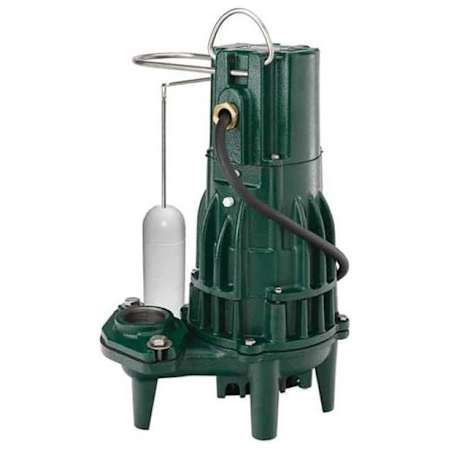

Zoeller 1/2 HP High Head Flow-Mate Sump/Effluent Pump with Vertical Float Switch

Model: 163-0001
|
Item: bci5171448

$1,200.00
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details

Features:

  • Zoeller High Head Flow-Mate Submersible Sump / Effluent Pump: For septic tank, low pressure pipe (LPP) and enhanced flow step systems

  • Cast Iron Switch Case, Base, Motor and Pump Housing Construction: Powder coated epoxy finish assures maximum protection for extended pump life

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel screws, guard, handle, arm and seal assembly

  • 1/2 HP Oil-Filled Permanent Split Capacitor Motor: Thermally protected, hermetically sealed to prevent overheating

  • High Head Design (66' Shut-Off Head): Can pump up to 2700 GPH @ 40' head

  • Float-Operated, 2-Pole, Vertical Mechanical Switch: Provides reliable automatic operation

  • Non-Clogging Bronze Vortex Impeller: Capable of passing 3/4" spherical solids

  • Carbon/Ceramic Shaft Seals and Upper / Lower Ball Bearings: Provides smooth, quiet operation and lower operating temperatures

  • 20' UL Listed Power Cord w/ 3-Prong Grounded Plug: Makes replacing your existing pump an easy task

  • Industry Leading Quality Control: Entire unit is pressure tested after assembly

  • 1-Year Limited Warranty

Additional Zoeller Links

Manufacturer Resources

Install SheetSpecification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
2 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
2 in.

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Bronze
Manual Override
No

Characteristics and Features

Base Material
Iron
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Bronze
Manual Override
No

Electrical and Operational Information

Amperage
15
Horsepower
0.5
Voltage
120

Electrical and Operational Information

Amperage
15
Horsepower
0.5
Voltage
120

Warranty and Product Information

Commercial Warranty
1 Year
Manufacturer Warranty
1 Year

Warranty and Product Information

Commercial Warranty
1 Year
Manufacturer Warranty
1 Year
