Zoeller

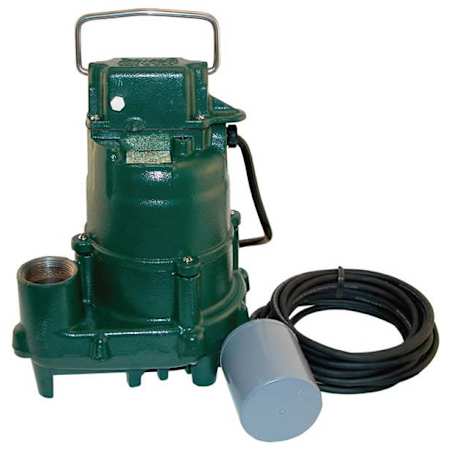

Zoeller 4/10 HP Cast Iron High Head Effluent / Sump Pump with 20' Variable Level Float Switch N/A
Zoeller 4/10 HP Cast Iron High Head Effluent / Sump Pump with 20' Variable Level Float Switch N/A
Alternate Image

Zoeller 4/10 HP Cast Iron High Head Effluent / Sump Pump with 20' Variable Level Float Switch

Model: 152-0005
|
Item: bci5171474

$405.00
32 In Stock
placeholder
Free Shipping!
Leaves the Warehouse Tomorrow, February 18th
-
Return & Shipping Details

Details

Features:

  • Zoeller Dose-Mate Submersible Effluent Pump: For septic tank, low pressure pipe (LPP) and enhanced flow step systems

  • No Sheet Metal Parts To Rust Or Corrode: Stainless steel screws, guard, handle, arm and seal assembly

  • Thermally Protected, 4/10 HP Permanent Split Capacitor Motor: Oil-filled and hermetically sealed to prevent overheating

  • Variable Level Tether Float Switch w/ 20' Cord: Enough cord for reliable operation in septic systems

  • Cast Iron Construction w/ Powder Coated Epoxy Finish: Assures maximum protection for extended pump life

  • 1-1/2" Discharge and Engineered Thermoplastic Vortex Impeller
    • Non-clogging, can pass up to 3/4" spherical solids
    • No screen to interfere with flowing debris

  • Carbon/Ceramic Shaft Seals and Upper Sleeve / Lower Ball Bearings: Provides smooth, quiet operation and lower operating temperatures

  • 20' UL Listed Power Cord w/ 3-Prong Ground Plug: Same length as float switch cord for reliable operation

  • Includes 1-1/2" x 2" PVC Adapter Fitting: 3-Year Warranty

  • *Note* Max Operating 130F and 38' Shutoff Head

Additional Zoeller Links

Manufacturer Resources

Specification Sheet

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5 in.
Maximum Head Height
38 in.

Dimensions and Measurements

Cord Length
20 in.
Discharge Diameter
1.5 in.
Maximum Head Height
38 in.

Characteristics and Features

Base Material
Iron
Float Type
Tether Switch
Housing Material
Cast Iron
Impeller Material
Bronze
Manual Override
Yes
Material Shaft
Steel

Characteristics and Features

Base Material
Iron
Float Type
Tether Switch
Housing Material
Cast Iron
Impeller Material
Bronze
Manual Override
Yes
Material Shaft
Steel

Electrical and Operational Information

Amperage
8.5
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.4
Maximum Fluid Temperature
130 °F
Motor RPM
3450
Voltage
120

Electrical and Operational Information

Amperage
8.5
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.4
Maximum Fluid Temperature
130 °F
Motor RPM
3450
Voltage
120

Warranty and Product Information

Commercial Warranty
3 Year
Country Of Origin
USA
Manufacturer Warranty
3 Year

Warranty and Product Information

Commercial Warranty
3 Year
Country Of Origin
USA
Manufacturer Warranty
3 Year
