Zoeller
Zoeller 3/10 HP Cast Iron Crawl Space Pump System with M53 Pump and 24' Hose Kit N/A
Zoeller 3/10 HP Cast Iron Crawl Space Pump System with M53 Pump and 24' Hose Kit N/A
Alternate Image

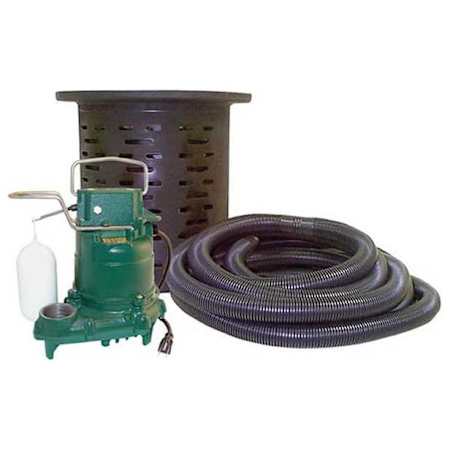

Zoeller 3/10 HP Cast Iron Crawl Space Pump System with M53 Pump and 24' Hose Kit

Model: 108-0001
|
Item: bci5171506

$481.50
Special Order
placeholder
Free Shipping!
Leaves the Warehouse in 6 to 9 weeks
-
Return & Shipping Details

Details



Features:

  • Zoeller Basic Crawl Space Pump System: Eliminates water and dampness where you need it most

  • Automatic Submersible Sump Pump w/ Vertical Float Switch: Never have to deal with a babysitting a manual pump again

  • Thermally Protected 1/3 HP Motor: Oil-filled and hermetically sealed to prevent overheating

  • Cast Iron Switch Case, Motor and Pump Housing: Designed for rapid heat dissipation and extended life

  • Engineered Thermoplastic Base: Prevents base corrosion from high mineral content groundwater

  • Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts: Provides the ability to pass solids up to 1/2"

  • 12-1/4" (W) by 14-7/8" (Tall) Perforated Poly Sump Basin: Compact design can be installed indoors or outdoors

  • 24' Discharge Hose and 25' Power Cord: Meets the needs of a wide variety of applications

  • Industry Leading Quality Control: Entire unit is pressure tested after assembly

  • * Note - Check Valve Not Included and Sold Separately

  • 3-Year Limited Warranty


  •



Additional Zoeller Links

Dimensions and Measurements

Cord Length
9 in.
Diameter
12.25 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
43
Height
12.5 in.
Maximum Head Height
19.25 in.
Product Weight
30 lbs.
Width
14.5 in.

Dimensions and Measurements

Cord Length
9 in.
Diameter
12.25 in.
Discharge Diameter
1.5 in.
Flow Rate (GPM)
43
Height
12.5 in.
Maximum Head Height
19.25 in.
Product Weight
30 lbs.
Width
14.5 in.

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Plastic
Switch Type
Automatic

Characteristics and Features

Base Material
Plastic
Float Type
Vertical Switch
Housing Material
Cast Iron
Impeller Material
Plastic
Switch Type
Automatic

Electrical and Operational Information

Amperage
9.3
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.3
Maximum Fluid Temperature
130 °F
Motor RPM
1550
Voltage
120

Electrical and Operational Information

Amperage
9.3
Backup GPH @ 0 feet
2680 GPH
Backup GPH @ 10 feet
2040 GPH
Backup GPH @ 15 feet
1140 GPH
Backup GPH @ 5 feet
2680 GPH
Electrical Phases
1
Frequency
60 Hertz
Horsepower
0.3
Maximum Fluid Temperature
130 °F
Motor RPM
1550
Voltage
120

Warranty and Product Information

Country Of Origin
USA
Manufacturer Warranty
3

Warranty and Product Information

Country Of Origin
USA
Manufacturer Warranty
3
