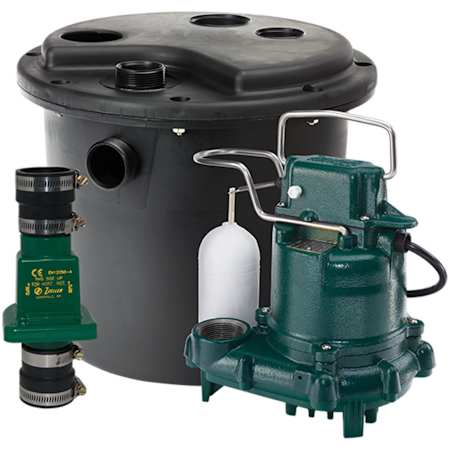

Zoeller 1/3 HP (M53) Remote Sink/Drain Pump System with Vertical Float Switch
Model: 105-0001|Item: bci2260771
$346.50
Finish: Electric -
86 In Stock
Free Shipping on LTL freight orders over $1,499.00!
Leaves the Warehouse Today, February 17th
-Details
Features:
- Automatic Remote Drain Pump and Laundry Tray System: Pre-packaged for easy installation
- Cast Iron Switch Case, Motor and Pump Housing: Designed for rapid heat dissipation and extended life
- Engineered Thermoplastic Base w/ Built-In Strainer: Corrosion resistant design, easily passes laundry lint
- 1/3 HP Thermally Protected Motor: Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Impeller: Capable of passing 1/2" diameter solids
- Vertical Float Switch: Solid and buoyant polypropylene design
- 14.5"W x 12.5"H Polyethylene Basin: High capacity, corrosion resistant w/ Gas Tight Cover
- Threaded Connection For Easy Installation: 1-1/2" Compression Intake, 2" NPT Vent and 1-1/2" NPT Discharge
- 1-1/2" Slip-On Check Valve: Engineered for longer life and quiet operation
- 9-Foot Power Cord For Easy Connection
- UL Listed
Dimensions and Measurements
Cord Length | 9 in. |
Diameter | 14.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 45 |
Height | 15.5 in. |
Inlet Diameter | 1.5 in. |
Length | 14.5 in. |
Max Float On | 7 in. |
Maximum Head Height | 19.25 in. |
Min Float Off | 1 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 30 lbs. |
Water Connection | 1-1/2" |
Width | 14.5 in. |
Dimensions and Measurements
Cord Length | 9 in. |
Diameter | 14.5 in. |
Discharge Diameter | 1.5 in. |
Flow Rate (GPM) | 45 |
Height | 15.5 in. |
Inlet Diameter | 1.5 in. |
Length | 14.5 in. |
Max Float On | 7 in. |
Maximum Head Height | 19.25 in. |
Min Float Off | 1 in. |
Outlet Diameter | 1.5 in. |
Product Weight | 30 lbs. |
Water Connection | 1-1/2" |
Width | 14.5 in. |
Characteristics and Features
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Water Connection Type | NPT |
Characteristics and Features
Base Material | Iron |
Housing Material | Cast Iron |
Impeller Material | Plastic |
Manual Override | No |
Water Connection Type | NPT |
Electrical and Operational Information
Electrical Phases | 1 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Starting Amps | 25.9 Amps |
Voltage | 120 |
Electrical and Operational Information
Electrical Phases | 1 |
Horsepower | 0.33 |
Maximum Fluid Temperature | 130 °F |
Motor RPM | 1550 |
Starting Amps | 25.9 Amps |
Voltage | 120 |
Warranty and Product Information
Certifications | UL |
Collection | Drain Pump |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Years |
Warranty and Product Information
Certifications | UL |
Collection | Drain Pump |
Country Of Origin | USA |
Made in America | Yes |
Manufacturer Warranty | 3 Years |
