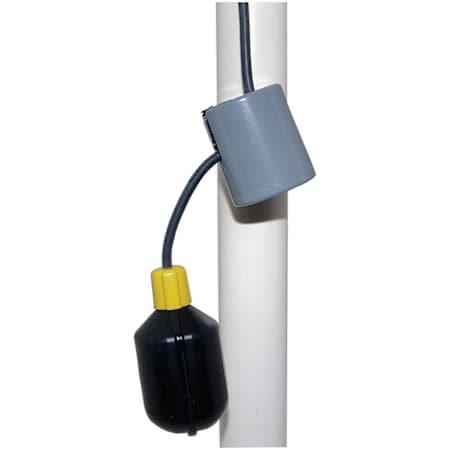

Zoeller 115/230V Variable Level Control Switch with 35' Cord

This narrow angle level control float is used to monitor liquid level conditions and activate control panels or alarms. This switch comes with a 35' cord and weight. They are typically installed in dose tanks, sump pump basins, holding tanks, lift stations, and other non-potable water applications. The variable level control switch is normally open when hanging vertically above the liquid level. The switch should be mounted to the weight that is provided, giving the switch a pivot point. When the water level rises and the switch is raised a few degrees above the horizontal position, the switch closes, completing the circuit to the control panel or alarm.

Zoeller 10-1882 Features:

• 18/2 Type SJOW CPE Cord-Standard
• Approximately 1/2" liquid level differential in switching action
• Normally open when hanging vertically above liquid level. Switch closes when it reaches a few degrees above the horizontal position
• Standard mechanical variable level control switches are rated for 115/230V
