The ZLINE KBiUU-30 has been discontinued
** See similar or replacement items below **

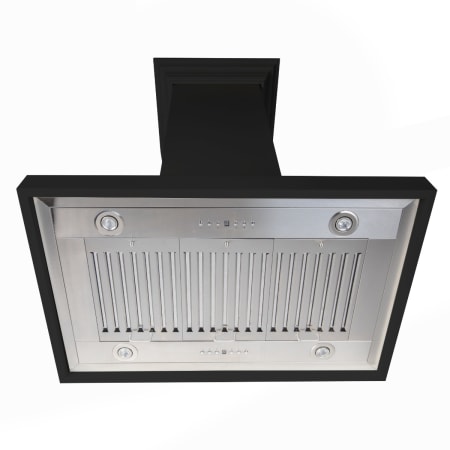

ZLINE 120 - 400 CFM 30 Inch Wide Island Range Hood with Baffle Filters and Push Button Controls
Model: KBiUU-30|Item: bci4198577
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Experience ZLINE Attainable Luxury® with industry-leading kitchen and bath products that provide an elevated luxury experience, all designed in Lake Tahoe, USA. The ZLINE 30 in. Designer Series Island Mount Range Hood with a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. The hand-finished wood is made from solid pine with a stainless-steel inner frame. This convertible vent range hood comes with a high-performance, 400 CFM, 4-speed motor (120/240/320/400 CFM) that will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Modern features, including built-in LED lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this vent hood a simple, enjoyable experience for years to come. This island mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. ZLINE Range Hoods are ETL Listed and have one of the easiest installations in the industry.
Features:
- Blower outputs up to 400 CFM to keep your kitchen free of cooking fumes and odors
- Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
- 4 LED lights illuminate the cooking area (bulbs included)
- 4 available speeds provide just the right amount of ventilation for any condition
- Push button controls allow you to easily set the power level of your range hood
- Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
- Constructed from 430 grade stainless steel for added durability
- This product ships in multiple boxes and will require minimal assembly upon arrival
- Covered under 3 year parts and lifetime motor manufacturer warranties
Specifications:
- CFM: 120, 400
- Sones: 0.6, 2.5
- Nominal Width: 30"
- Width: 30"
- Height: 13-5/16"
- Depth: 19-11/16"
- Duct Size: 6" Round
- Ceiling Height: 7.104" - 9.104"
- Height Above Cooktop: 30"
- Amperage: 3.5A
- Voltage: 110V
- Wattage: 385W
Manufacturer Resources
Installation SheetDimensions and Measurements
Ceiling Height (Max) | 9.104 in. |
Ceiling Height (Min) | 7.104 in. |
CFM | 120, 400 |
CFM (High) | 400 |
Depth | 19.7 in. |
Duct Size | 6" Round |
Height | 13.3 in. |
Height Above Cooktop | 30" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 30 in. |
Product Weight | 85 lbs. |
Width | 30 in. |
Dimensions and Measurements
Ceiling Height (Max) | 9.104 in. |
Ceiling Height (Min) | 7.104 in. |
CFM | 120, 400 |
CFM (High) | 400 |
Depth | 19.7 in. |
Duct Size | 6" Round |
Height | 13.3 in. |
Height Above Cooktop | 30" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 30 in. |
Nominal Width | 30 in. |
Product Weight | 85 lbs. |
Width | 30 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | Yes |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel, Wood |
Number of Bulbs | 4 |
Panel Ready | No |
Smart Home | No |
Theme | Modern |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Horizontal, Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel, Wood |
Number of Bulbs | 4 |
Panel Ready | No |
Smart Home | No |
Theme | Modern |
Electrical and Operational Information
Amperage | 3.5 |
Frequency | 60 Hertz |
Sones | 0.6, 2.5 |
Speeds | 4 |
Voltage | 110 |
Wattage | 385 |
Watts Per Bulb | 96 |
Electrical and Operational Information
Amperage | 3.5 |
Frequency | 60 Hertz |
Sones | 0.6, 2.5 |
Speeds | 4 |
Voltage | 110 |
Wattage | 385 |
Watts Per Bulb | 96 |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | ETL |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts, Lifetime Motor |
Outdoor Approved | No |
Title 20 Compliant | No |
Title 24 | No |
Warranty and Product Information
ADA | No |
Approved for Commercial Use | No |
Certifications | ETL |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts, Lifetime Motor |
Outdoor Approved | No |
Title 20 Compliant | No |
Title 24 | No |
