The ZLINE 697-RS-30 has been discontinued
** See similar or replacement items below **
Item # bci3400692

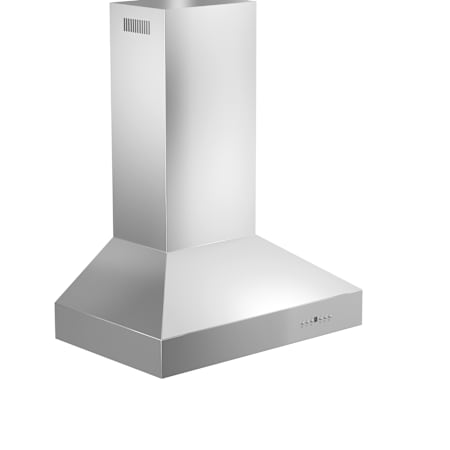

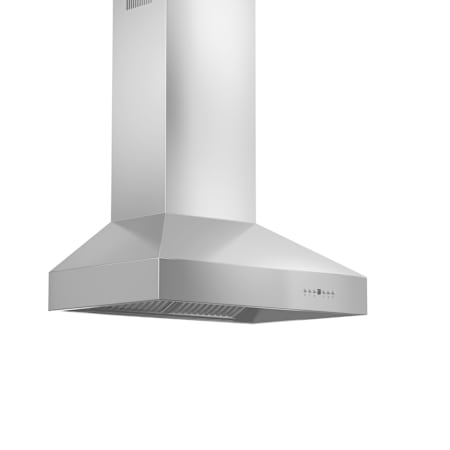

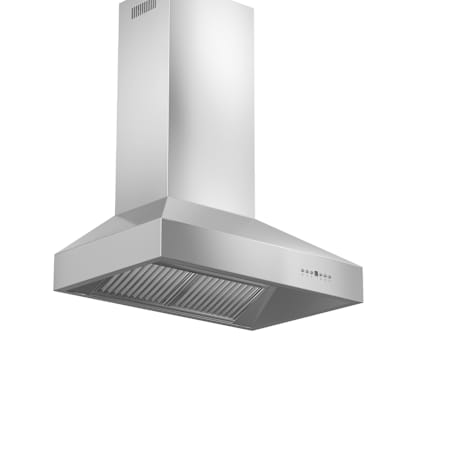

ZLINE 280 - 900 CFM 30 Inch Wide Wall Mounted Range Hood
Model: 697-RS-30|Item: bci3400692
from theProfessional Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- 900 CFM blower can quickly clear the air from your kitchen
- Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
- LED lighting for illuminating your cooking surface
- Push-button controls allow for easy control of lighting and fan
- 3 year parts warranty
Specifications:
- CFM: 280, 460, 670, 900
- Sones: 0.6, 1.1, 1.5, 2.5
- Speeds: 4
- Duct Size: 8" Round
- Duct Discharge: Vertical
- Bulb Type: LED
- Nominal Width: 30
- Height: 16"
- Depth: 27-1/2"
- Height Above Cooktop: 30" to 36"
- Voltage: 120v
- Wattage: 385
Â
Manufacturer Resources

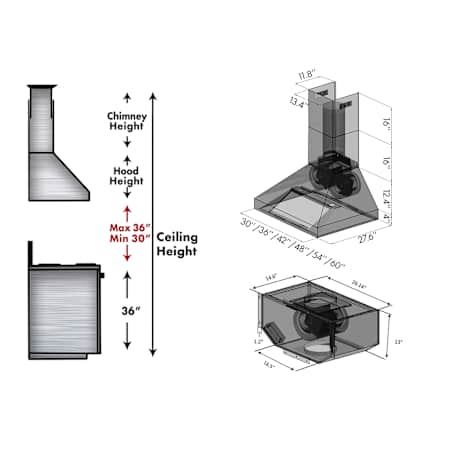

Installation GuideDimensions and Measurements
Ceiling Height (Max) | 120 in. |
Ceiling Height (Min) | 98.4 in. |
CFM | 280, 460, 670, 900 |
CFM (High) | 900 |
Depth | 27.5 in. |
Duct Size | 8" Round |
Height | 16 in. |
Height Above Cooktop | 30" to 36" |
Nominal Width | 30 in. |
Product Weight | 52 lbs. |
Width | 30 in. |
Dimensions and Measurements
Ceiling Height (Max) | 120 in. |
Ceiling Height (Min) | 98.4 in. |
CFM | 280, 460, 670, 900 |
CFM (High) | 900 |
Depth | 27.5 in. |
Duct Size | 8" Round |
Height | 16 in. |
Height Above Cooktop | 30" to 36" |
Nominal Width | 30 in. |
Product Weight | 52 lbs. |
Width | 30 in. |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | External |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
LED | Yes |
Material | Stainless Steel |
Number of Bulbs | 4 |
Panel Ready | No |
Stainless Steel Grade | 430 |
Characteristics and Features
Blower Type | External |
Bulb Type | LED |
Control Type | Push Button |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
LED | Yes |
Material | Stainless Steel |
Number of Bulbs | 4 |
Panel Ready | No |
Stainless Steel Grade | 430 |
Electrical and Operational Information
Amperage | 3.5 |
Fan Speeds | 4 |
Frequency | 60 Hertz |
Maximum Sones | 6.5 |
Minimum Sones | 1.1 |
Sones | 1.1, 0.6, 1.5, 2.5 |
Speeds | 4 |
Voltage | 120 |
Wattage | 385 |
Electrical and Operational Information
Amperage | 3.5 |
Fan Speeds | 4 |
Frequency | 60 Hertz |
Maximum Sones | 6.5 |
Minimum Sones | 1.1 |
Sones | 1.1, 0.6, 1.5, 2.5 |
Speeds | 4 |
Voltage | 120 |
Wattage | 385 |
Warranty and Product Information
ADA | No |
Certifications | ETL |
Collection | Professional |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | No |
Title 24 | No |
Warranty and Product Information
ADA | No |
Certifications | ETL |
Collection | Professional |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | No |
Title 24 | No |
