The ZLINE 393AR-RD-36 has been discontinued
** See similar or replacement items below **

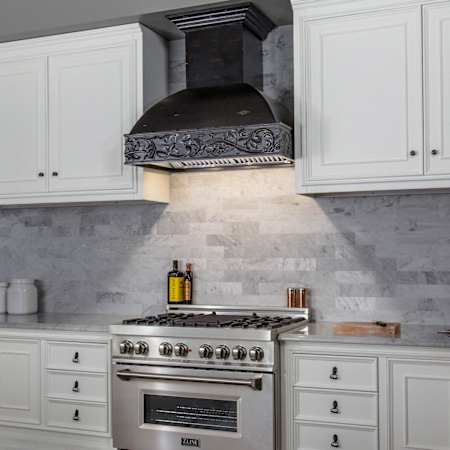

ZLINE 280 - 700 CFM 36 Inch Wide Wall Mounted Range Hood With Stainless Steel Baffle Filters
Model: 393AR-RD-36|Item: bci4198482
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
ZLINE 36 in. 700 CFM Designer Series wooden wall mount range hood has a modern design and built-to-last quality that would make it a great addition to any home or kitchen remodel. This hood's high-performance 4-speed motor will provide all the power you need to quietly and efficiently ventilate your kitchen while cooking. The blower for this hood is remotely installed to provide powerful venting with significantly reduced noise. Modern features, including built-in lighting and dishwasher-safe stainless steel baffle filters for easy clean-up, will make using this hood a simple, enjoyable experience for years to come. ZLINE Hoods are ETL Listed and have one of the easiest installations in the industry. Includes a 24 in. chimney with elegant crown molding for ceilings up to 9.5 ft. (must be custom cut to appropriate height) and a 61 in. chimney extension (not included) is available for ceilings up to 12.5 ft. ZLINE stands by all products with its manufacturer parts warranty.
Features:
- 700 CFM fan efficiently moves large amounts of air away from your cooking area
- Dishwasher-safe stainless steel baffle filters for an aesthetically pleasing, easy to clean addition to any kitchen
- Built-In LED lighting to illuminate the cooktop beneath the hood
- Four-speed fan control allows you to choose the appropriate air flow for your cooking situation
- Easy-to-use turn knob control panel
- Covered under a 3 year parts warranty
Specifications:
- CFM: 700, 280, 460, 670
- Sones: 1.1, 2.5, 4.3, 5.3
- Speeds: 4
- Duct Size: 8" Round
- Duct Discharge: Vertical
- Bulb Type: LED
- Width: 36"
- Depth: 22"
- Height: 17-1/2"
- Ceiling Height: 90" to 114"
- Height Above Cooktop: 36"
- Voltage: 110V
- Wattage: 550W
- Watts Per Bulb: 183W
Dimensions and Measurements
Ceiling Height (Max) | 114 in. |
Ceiling Height (Min) | 90 in. |
CFM | 280, 420, 560, 700 |
CFM (High) | 700 |
Depth | 22 in. |
Duct Size | 8" Round |
Height | 16.4 in. |
Height Above Cooktop | 36" |
Nominal Width | 36 in. |
Product Weight | 97 lbs. |
Width | 36 in. |
Dimensions and Measurements
Ceiling Height (Max) | 114 in. |
Ceiling Height (Min) | 90 in. |
CFM | 280, 420, 560, 700 |
CFM (High) | 700 |
Depth | 22 in. |
Duct Size | 8" Round |
Height | 16.4 in. |
Height Above Cooktop | 36" |
Nominal Width | 36 in. |
Product Weight | 97 lbs. |
Width | 36 in. |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Knob |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Material | Stainless Steel, Wood |
Number of Bulbs | 3 |
Panel Ready | No |
Theme | Traditional |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Knob |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Installation Type | Full Installation |
Material | Stainless Steel, Wood |
Number of Bulbs | 3 |
Panel Ready | No |
Theme | Traditional |
Electrical and Operational Information
Amperage | 5 |
Frequency | 60 Hertz |
Sones | 1.1, 2.5, 4.3, 5.3 |
Speeds | 4 |
Voltage | 110 |
Wattage | 550 |
Watts Per Bulb | 183 |
Electrical and Operational Information
Amperage | 5 |
Frequency | 60 Hertz |
Sones | 1.1, 2.5, 4.3, 5.3 |
Speeds | 4 |
Voltage | 110 |
Wattage | 550 |
Watts Per Bulb | 183 |
Warranty and Product Information
ADA | No |
Certifications | HVI, ETL |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | No |
Warranty and Product Information
ADA | No |
Certifications | HVI, ETL |
Country Of Origin | China |
Energy Star | No |
Manufacturer Warranty | 3 Year Parts |
Outdoor Approved | No |
