Zephyr

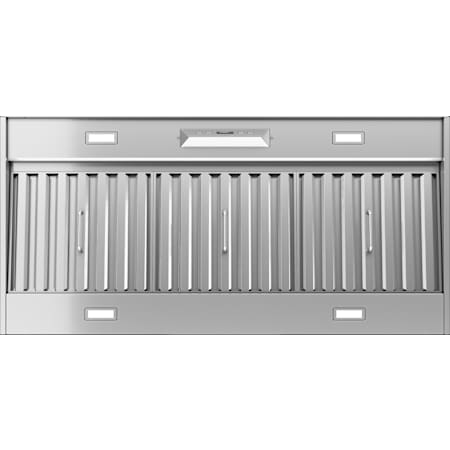

Zephyr Monsoon II Series 200 - 650 CFM 48 Inch Wide Range Hood Insert with Airflow Control Technology and TruHue Stainless Steel
Zephyr Monsoon II Series 200 - 650 CFM 48 Inch Wide Range Hood Insert with Airflow Control Technology and TruHue Stainless Steel
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image

Zephyr Monsoon II Series 200 - 650 CFM 48 Inch Wide Range Hood Insert with Airflow Control Technology and TruHue

Model: AK9346CS
|
Item: bci5210972

$1,799.00
Finish: Stainless Steel -
31 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 2 business days
-
Return & Shipping Details

Details

Now available with LumiLight LED lighting with ACT that lets you customize the ambiance from warm to cool (2700K to 5000K) with just a touch, Monsoon II delivers even more. Designed using universally-recognized, conventional installation dimensions, Monsoon II is a great option for custom cabinetry or an enclosure. Its stainless steel baffle filters with removable grease tray make it easy to maintain its pro-style look, while the new 5-speed electronic LCD controls, optional wireless remote control, and exclusive ACT technology give the homeowner more than they expected.

Features:

  • Blower outputs up to 650 CFM to keep your kitchen free of cooking fumes and odors
  • Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
  • 4 LED lights illuminate the cooking area (bulbs included)
  • Complements items from the Monsoon II collection
  • Touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function
  • 5 available speeds provide just the right amount of ventilation
  • Optional dual internal blower kit available to fit your application
  • Filters are dishwasher safe
  • Optional wireless remote control (RC-0002) with battery and holder. Equipped with a magnet on the back for easy storage on any magnetic surface (remote not included)
  • ADA compliant with optional remote
  • Covered under 1 year limited labor and 3 year limited parts manufacturer warranties

Product Technologies:

  • LumiLight LED Lighting with TruHue™: Customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K
  • Airflow Control Technology™ (ACT™): Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements

Specifications:

  • CFM: 200, 650
  • Sones: 8
  • Nominal Width: 48"
  • Width: 46-3/8"
  • Height: 12"
  • Depth: 22-1/2"
  • Duct Size: 8" Round, 10" Round
  • Ceiling Height: 96" - 144"
  • Height Above Cooktop: 26" to 36"
  • Amperage: 5A
  • Voltage: 120V
  • Wattage: 600W
Additional Zephyr Links

Dimensions and Measurements

Ceiling Height (Max)
144 in.
Ceiling Height (Min)
96 in.
CFM
200, 650
CFM (High)
650
Depth
22.5 in.
Duct Size
10" Round, 8" Round
Height
12 in.
Height Above Cooktop
26" to 36"
Height Above Cooktop (Max)
36 in.
Height Above Cooktop (Min)
26 in.
Nominal Width
48 in.
Product Weight
53.6 lbs.
Width
46.375 in.

Dimensions and Measurements

Ceiling Height (Max)
144 in.
Ceiling Height (Min)
96 in.
CFM
200, 650
CFM (High)
650
Depth
22.5 in.
Duct Size
10" Round, 8" Round
Height
12 in.
Height Above Cooktop
26" to 36"
Height Above Cooktop (Max)
36 in.
Height Above Cooktop (Min)
26 in.
Nominal Width
48 in.
Product Weight
53.6 lbs.
Width
46.375 in.

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
No
Ductless
No
Includes Remote
No
Light Included
Yes

Included Components

Available Without Blower
No
Bulb Included
Yes
Convertible to Ductless / Recirculating
No
Ductless
No
Includes Remote
No
Light Included
Yes

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Touch
Duct Discharge
Horizontal, Vertical
Filter Type
Baffle Filters
Fingerprint Resistant
No
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
4
Panel Ready
No
Smart Home
No
Theme
Transitional

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Touch
Duct Discharge
Horizontal, Vertical
Filter Type
Baffle Filters
Fingerprint Resistant
No
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
4
Panel Ready
No
Smart Home
No
Theme
Transitional

Electrical and Operational Information

Amperage
5
Frequency
60 Hertz
Sones
8
Speeds
5
Voltage
120
Wattage
600
Watts Per Bulb
6

Electrical and Operational Information

Amperage
5
Frequency
60 Hertz
Sones
8
Speeds
5
Voltage
120
Wattage
600
Watts Per Bulb
6

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
Certifications
UL
Collection
Pro
Country Of Origin
Taiwan
Energy Star
No
Manufacturer Warranty
1 Year Limited Labor, 3 Year Limited Parts
Outdoor Approved
No
Title 20 Compliant
Yes
Title 24
Yes

Warranty and Product Information

ADA
No
Approved for Commercial Use
No
Certifications
UL
Collection
Pro
Country Of Origin
Taiwan
Energy Star
No
Manufacturer Warranty
1 Year Limited Labor, 3 Year Limited Parts
Outdoor Approved
No
Title 20 Compliant
Yes
Title 24
Yes
