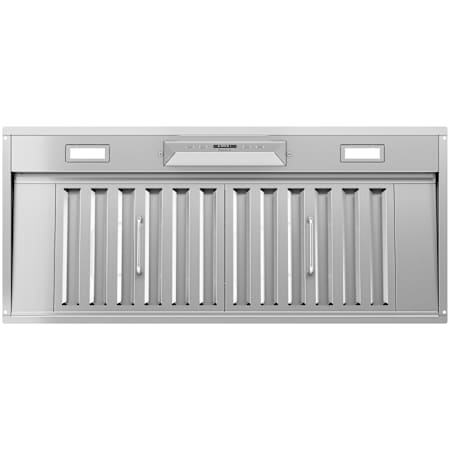

Zephyr Tornado II Series 600 CFM 34 Inch Wide Range Hood Insert
Model: AK8234AS|Item: bci5124219
Details
If you like professional-grade punch with all the amenities, Tornado II is your best-kept secret and will complement any kitchen's style. Designed to fit 15-inch-deep cabinets, this powerful insert features pro baffle filters, a 600-CFM internal blower, and an optional, easy-to-install, stainless steel, adjustable-depth liner to allow for more flexible installations. Dual-level LumiLight LED lighting with TruHue technology allows you to match your hood lights to your primary lighting. An optional 1,000-CFM dual internal blower and an optional wireless remote control are also available.
Features:
- Blower outputs up to 1000 CFM to keep your kitchen free of cooking fumes and odors
- Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
- 2 LED lights illuminate the cooking area (bulbs included)
- Complements items from the Tornado II collection
- Touch controls allow you to easily set the power level of your range hood
- 5 available speeds provide just the right amount of ventilation
- A bright idea: customize your hoods light to harmonize with the rest of your kitchens lighting at the touch of a button with TruHue anywhere from 2700K to 5000K
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution
- Auto delay-off feature allows you to set your hood to continue venting for 5 or 10 minutes after cooking is complete and then automatically powers your hood off
- Covered under 1 year labor and 3 year parts manufacturer warranties
Specifications:
- CFM: 600
- Sones: 1.8
- Nominal Width: 34"
- Width: 33-3/4"
- Height: 14-1/2"
- Depth: 14-7/8"
- Duct Size: 6" Round
- Ceiling Height: 96" - 144"
- Height Above Cooktop: 24" to 36"
- Amperage: 3A
- Voltage: 120V
- Wattage: 360W
Dimensions and Measurements
Ceiling Height (Max) | 144 in. |
Ceiling Height (Min) | 96 in. |
CFM | 600 |
CFM (High) | 1000 |
Depth | 14.9 in. |
Duct Size | 6" Round |
Height | 14.5 in. |
Height Above Cooktop | 24" to 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 24 in. |
Nominal Width | 34 in. |
Product Weight | 29.5 lbs. |
Width | 33.75 in. |
Dimensions and Measurements
Ceiling Height (Max) | 144 in. |
Ceiling Height (Min) | 96 in. |
CFM | 600 |
CFM (High) | 1000 |
Depth | 14.9 in. |
Duct Size | 6" Round |
Height | 14.5 in. |
Height Above Cooktop | 24" to 36" |
Height Above Cooktop (Max) | 36 in. |
Height Above Cooktop (Min) | 24 in. |
Nominal Width | 34 in. |
Product Weight | 29.5 lbs. |
Width | 33.75 in. |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Included Components
Available Without Blower | No |
Bulb Included | Yes |
Convertible to Ductless / Recirculating | No |
Ductless | No |
Includes Remote | No |
Light Included | Yes |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Panel Ready | No |
Smart Home | No |
Theme | Transitional |
Characteristics and Features
Blower Type | Internal |
Bulb Type | LED |
Control Type | Touch |
Duct Discharge | Vertical |
Filter Type | Baffle Filters |
Fingerprint Resistant | No |
Installation Type | Full Installation |
Material | Stainless Steel |
Number of Bulbs | 2 |
Panel Ready | No |
Smart Home | No |
Theme | Transitional |
Electrical and Operational Information
Amperage | 3 |
Frequency | 60 Hertz |
Sones | 1.8 |
Speeds | 5 |
Voltage | 120 |
Wattage | 360 |
Watts Per Bulb | 6 |
Electrical and Operational Information
Amperage | 3 |
Frequency | 60 Hertz |
Sones | 1.8 |
Speeds | 5 |
Voltage | 120 |
Wattage | 360 |
Watts Per Bulb | 6 |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Collection | Tornado II |
Country Of Origin | Taiwan |
Energy Star | No |
Made in America | No |
Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
Outdoor Approved | No |
Title 20 Compliant | Yes |
Warranty and Product Information
Approved for Commercial Use | No |
Certifications | UL |
Collection | Tornado II |
Country Of Origin | Taiwan |
Energy Star | No |
Made in America | No |
Manufacturer Warranty | 1 Year Labor, 3 Year Parts |
Outdoor Approved | No |
Title 20 Compliant | Yes |
