The Zephyr AK8134BS has been discontinued

** See similar or replacement items below **

Zephyr
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Alternate Image
Item # bci4366133

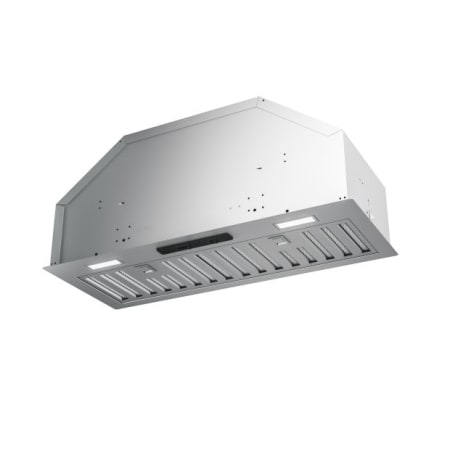

Zephyr Tornado I 200 - 600 CFM 34 Inch Wide Range Hood Insert with LumiLight LED Lighting

Model: AK8134BS
|
Item: bci4366133

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

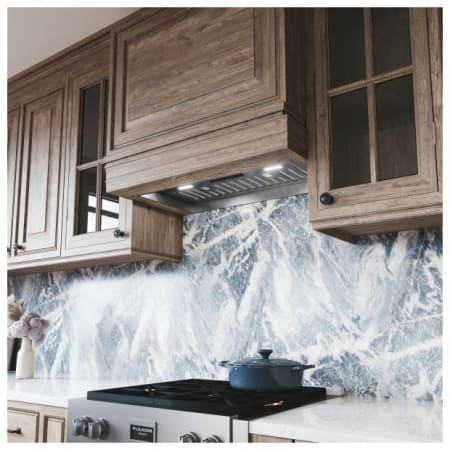

The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.

Features:

  • Blower outputs up to 600 CFM to keep your kitchen free of cooking fumes and odors
  • Baffle filters effectively trap and filter out unwanted smoke, odors, and grease
  • 2 Lumilight LED lights illuminate the cooking area
  • Complements items from the Core collection
  • Hood can be converted to ductless ventilation for improved efficiency and flexible installation options
  • Slide controls allow you to easily set the power level of your range hood
  • 3 available speeds provide just the right amount of ventilation
  • Optional liner accessories available
  • Optional ductless recirculating kit
  • Covered under Zephyr's 1 year labor and a 3 year parts warranty

Specifications:

  • CFM: 200, 600
  • Sones: 1.4, 6
  • Nominal Width: 34"
  • Width: 33-9/16"
  • Height: 10-1/2"
  • Depth: 11-3/16"
  • Duct Size: 6" Round
  • Ceiling Height: 96" - 144"
  • Height Above Cooktop: 20" to 34"
  • Amperage: 3A
  • Voltage: 120V
  • Wattage: 360W
Additional Zephyr Links

Dimensions and Measurements

Ceiling Height (Max)
144 in.
Ceiling Height (Min)
96 in.
CFM
200, 600
Depth
11.19 in.
Duct Size
6" Round
Height
10.5 in.
Height Above Cooktop
20" to 34"
Nominal Width
34 in.
Product Weight
22.5 lbs.
Width
33.56 in.

Dimensions and Measurements

Ceiling Height (Max)
144 in.
Ceiling Height (Min)
96 in.
CFM
200, 600
Depth
11.19 in.
Duct Size
6" Round
Height
10.5 in.
Height Above Cooktop
20" to 34"
Nominal Width
34 in.
Product Weight
22.5 lbs.
Width
33.56 in.

Included Components

Available Without Blower
No
Convertible to Ductless / Recirculating
Yes
Ductless
Yes
Includes Remote
No
Light Included
Yes

Included Components

Available Without Blower
No
Convertible to Ductless / Recirculating
Yes
Ductless
Yes
Includes Remote
No
Light Included
Yes

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Slide
Duct Discharge
Horizontal, Vertical
Filter Type
Baffle Filters
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
2
Panel Ready
No

Characteristics and Features

Blower Type
Internal
Bulb Type
LED
Control Type
Slide
Duct Discharge
Horizontal, Vertical
Filter Type
Baffle Filters
Installation Type
Full Installation
Material
Stainless Steel
Number of Bulbs
2
Panel Ready
No

Electrical and Operational Information

Amperage
3
Sones
1.4, 6
Speeds
3
Voltage
120
Wattage
360
Watts Per Bulb
6

Electrical and Operational Information

Amperage
3
Sones
1.4, 6
Speeds
3
Voltage
120
Wattage
360
Watts Per Bulb
6

Warranty and Product Information

ADA
No
Certifications
UL
Collection
Core
Country Of Origin
Taiwan
Energy Star
No
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Outdoor Approved
No
Title 20 Compliant
Yes

Warranty and Product Information

ADA
No
Certifications
UL
Collection
Core
Country Of Origin
Taiwan
Energy Star
No
Manufacturer Warranty
1 Year Labor, 3 Year Parts
Outdoor Approved
No
Title 20 Compliant
Yes
