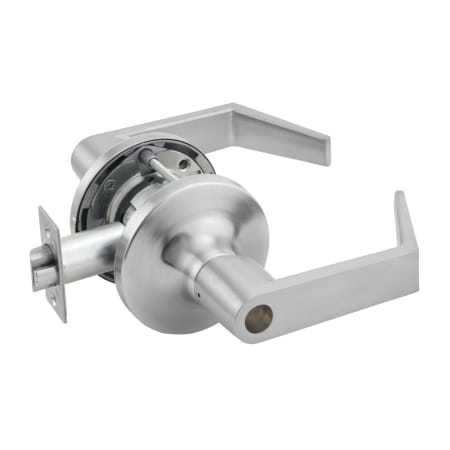

Yale 5400LN Series Augusta Heavy Duty Grade 1 Single Cylinder Keyed Entry Security Door Lever Set - Less Cylinder

Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

Single Cylinder Function:

• Latch bolt operated by lever either side, unless turn button locks outside lever
• Operating inside lever unlocks outside lever unless button is pushed and turned
• Outside lever is free wheeling in locked position
• Pushing and turning button locks outside lever, requiring a key at all times; turning inside lever will not unlock outside lever until button is disengaged
• Allows for free egress

Features:

• Exceeds criteria for BHMA Grade 1
• All metal construction for enhanced durability and security
• Reversible handing for easy installation
• Includes a 7 year limited warranty
• 2 keys included with lever set
• UL listed 3 hour fire rating
• Compliant with Americans with Disabilities Act (ADA)

Specifications:

• Backset: 2-3/4"
• Cross Bore: 2-1/8"
• Edge Bore: 7/8"
• Door Thickness: 1-3/4" to 2"
• Handing: Left, Right, Reversible
• Trim Height: 3-1/2"
• Trim Width: 3-1/2"
• Handle Length: 5-7/16"
• Handle Projection: 3-1/16"
• Cylinder Included: No
• Latch Faceplate: Square Corner
• Material: Brass, Bronze, Stainless Steel, Steel, Zinc
