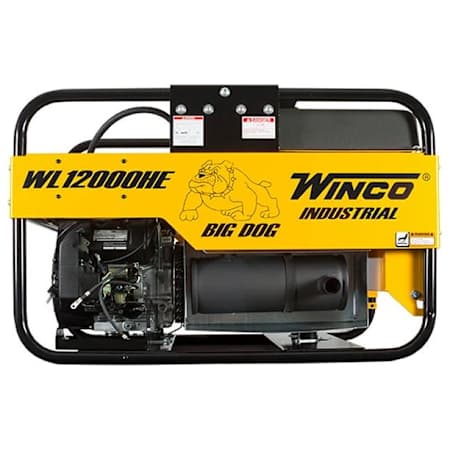

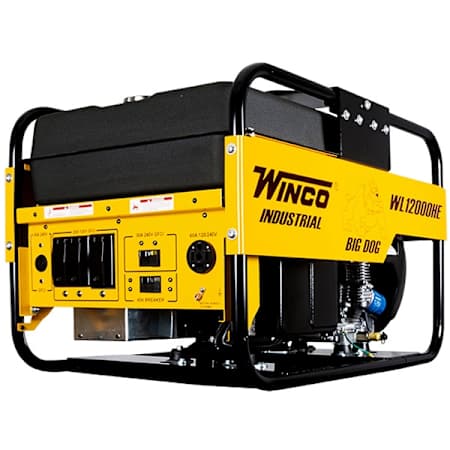

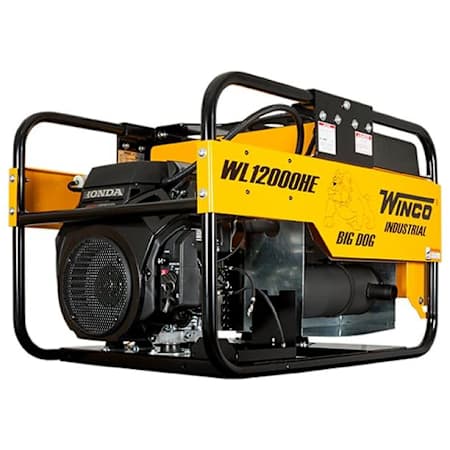

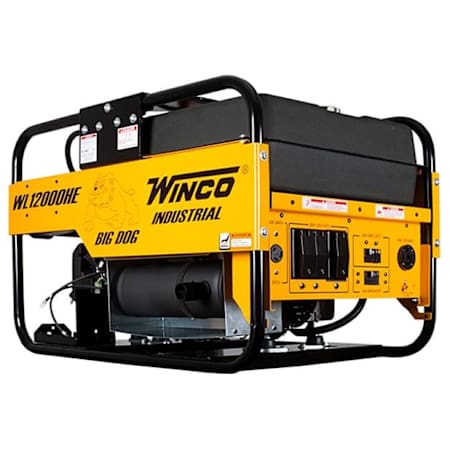

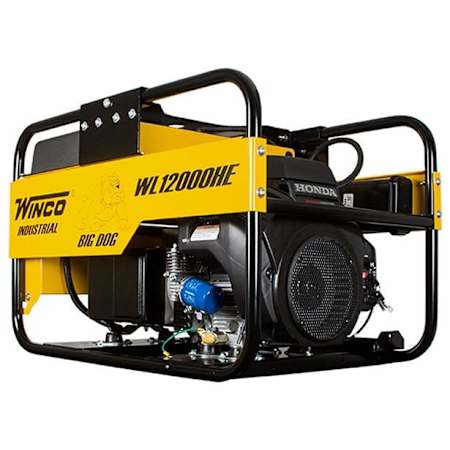

Winco Power Systems WL12000HE-03/D - 10,800-Watt (120 / 240V) Electric Key Start Gasoline Portable Generator with Honda Engine
Model: WL12000HE|Item: bci5177618
$5,031.40
Special Order
Details
Features:
Winco Electric Start Portable Job Site Generator

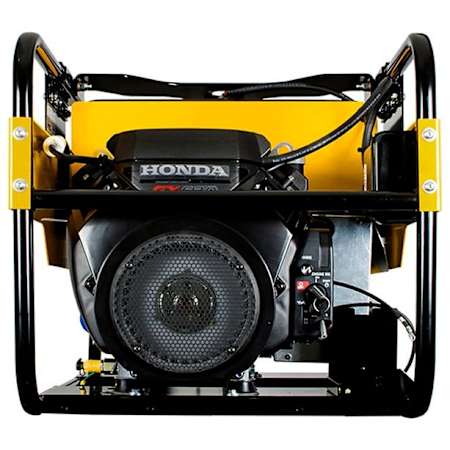

- Honda GX630 OHV powered with electric start and low oil sensor
Produces 12,000 Watts Of Surge Power
- Rated at 10,800 watts for continuous duty operation
Brushless Alternator with 100% Copper Windings
- Provides clean power with no maintenance required
15-Gallon Fuel Tank Provides Extended Run Time
- Will keep a full work crew busy all day without re-fueling

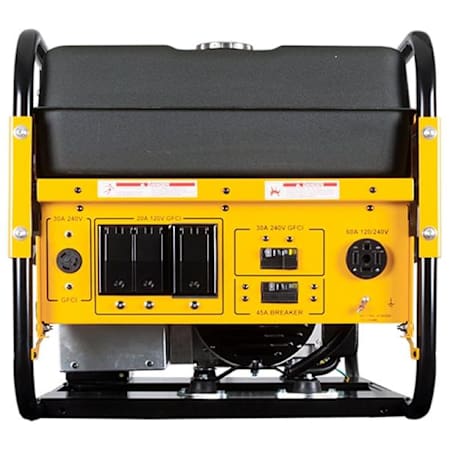

Fully Loaded Receptacle Panel
- Plenty of power to keep you operating at peak performance
Full Power Design and Industrial Square D Mainline Circuit Breaker
- Easily draw the full rated output from a single 120/240V outlet
- Industry leading 1/60th second reaction time
Heavy-Duty 1-1/4" 13-Gauge Tubular Steel Cradle
- Built to take any abuse the job site my dish out
Standard Lifting Eye and 4-Wheel Dolly Kit (Sold Separately)
- Makes this generator easy to transport
3-Year Engine and 2-Year Generator Warranty
Overview:
- Product Category: Portable Generator
- Generator Features:
- Automatic Voltage Regulation
- Cast Iron Engine Sleeve
- CO Sensing
- Fuel Gauge
- Hour Meter
- Idle Control
- Low Oil Alert/Shutdown
- Low THD
- Product Weight: 382 lbs
- Length: 40"
- Width: 27-3/16"
- Height: 26-3/16"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 10,800 Watts
- Starting Wattage: 12,000 Watts
- Amperage: 45A
- Decibel Rating @ 7m: 77 dbA
Engine:
- Engine Brand: Honda GX
- Starting System: 12-Volt Key Start
- Cubic Capacity: 688 CC
- RPM: 3600 RPM
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Warranty: 2 Year and 3 Year
Plug Type:
(3) NEMA 5-20R - GFCI
Dimensions and Measurements
Fuel Tank Capacity | 15 Gallons |
Height | 26.2 in. |
Length | 40 in. |
Product Weight | 382 lbs. |
Width | 27.2 in. |
Dimensions and Measurements
Fuel Tank Capacity | 15 Gallons |
Height | 26.2 in. |
Length | 40 in. |
Product Weight | 382 lbs. |
Width | 27.2 in. |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | No |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | No |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Honda GX |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown, Low THD |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Honda GX |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, Cast Iron Engine Sleeve, CO Sensing, Fuel Gauge, Hour Meter, Idle Control, Low Oil Alert/Shutdown, Low THD |
Electrical and Operational Information
Alternator | Brushless |
Amperage | 45 |
Cubic Capacity | 688 cc |
Decibel Rating @ 7m | 77 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline |
Plug Type | (3) NEMA 5-20R - GFCI |
RPM | 3600 |
Running Wattage | 10800 |
Starting System | 12-Volt Key Start |
Starting Wattage | 12000 |
Voltage | 120, 240 |
Electrical and Operational Information
Alternator | Brushless |
Amperage | 45 |
Cubic Capacity | 688 cc |
Decibel Rating @ 7m | 77 |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline |
Plug Type | (3) NEMA 5-20R - GFCI |
RPM | 3600 |
Running Wattage | 10800 |
Starting System | 12-Volt Key Start |
Starting Wattage | 12000 |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | No |
EPA Compliant | Yes |
Manufacturer Warranty | 2 Year, 3 Year |
Warranty and Product Information
Approved for Commercial Use | Yes |
CARB approved | No |
EPA Compliant | Yes |
Manufacturer Warranty | 2 Year, 3 Year |
