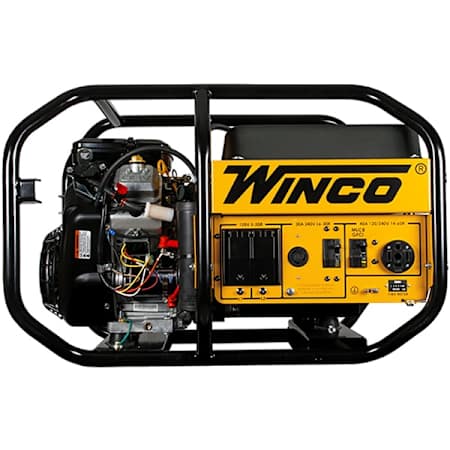

Winco Power Systems W10000VE-03/B - 9,600-Watt (120 / 240V) Electric Key / Recoil Start Gasoline Portable Generator

Features:

Winco W10000VE Electric Start Portable Job Site Generator

• Redesigned and improved for years of reliable service

Electric Start with Recoil Backup (Battery Not Included)

• Provides easy starting with or without a battery

570cc V-Twin OHV Briggs and Stratton Vanguard Engine

• Engineered to deliver the dependability you need

• Low oil protection helps extend engine life

Brushless Alternator with 100% Copper Windings

• Provides clean power with no maintenance required

Automatic Voltage Regulator (AVR) +/- 1%

• Allows you to safely power sensitive electrical products

Full Panel GFCI Protection - OSHA and NEC 2011 Compliant

• Must use GFI type manual transfer switch for panel connection

• Not for use with interlock kit

7-Gallon Fuel Tank - EPA Approved

• Provides up to 4.3 hours of run time at 100% load

30-Amp NEMA L6-30R and 60-Amp NEMA 14-60R Receptacles

• Makes it easy to power tools and equipment on the job site

Premium Square D Circuit Breakers

• With built-in Visi-Trip indicator for added safety

Redesigned 14-Gauge Tubular Steel Cradle

• Allows for easier servicing of generator components

Standard Lifting Eye

• Makes this generator easy to transport

100% Load Tested

• All generators are tested before they leave the factory

3-Year Commercial Warranty

• EPA Approved

Overview:

• Product Category: Portable Generator
• Generator Features:
  • Automatic Voltage Regulation
  • Cast Iron Engine Sleeve
  • CO Sensing
  • Fuel Gauge
  • Hour Meter
  • Idle Control
  • Low Oil Alert/Shutdown
  • Low THD
• Product Weight: 284 lbs
• Length: 34-5/16"
• Width: 24-5/8"
• Height: 2-3/8"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 9,600 Watts
• Starting Wattage: 10,500 Watts
• Amperage: 40A

Engine:

• Engine Brand: Briggs and Stratton, Vanguard
• Starting System: 12-Volt Key Start w/ Recoil
• Cubic Capacity: 570 CC
• RPM: 3600 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• EPA Compliant
• Warranty: 3 Year

Plug Type:

(2) NEMA 5-20R - GFCI
