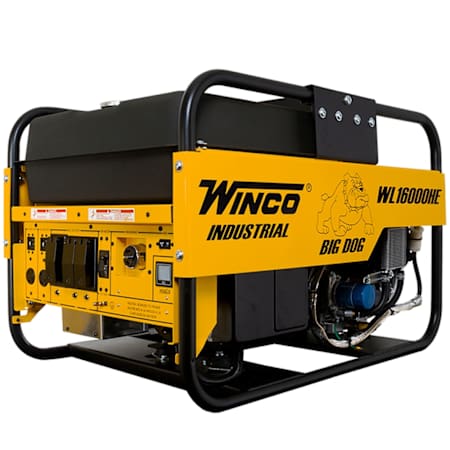

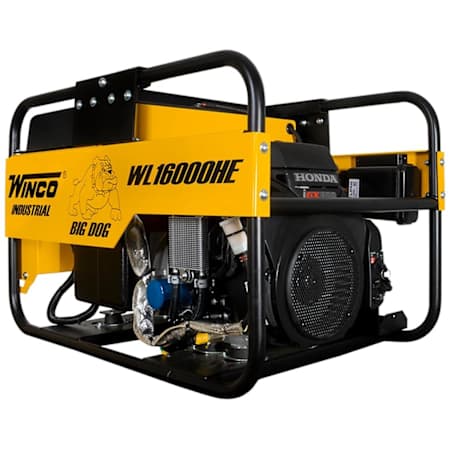

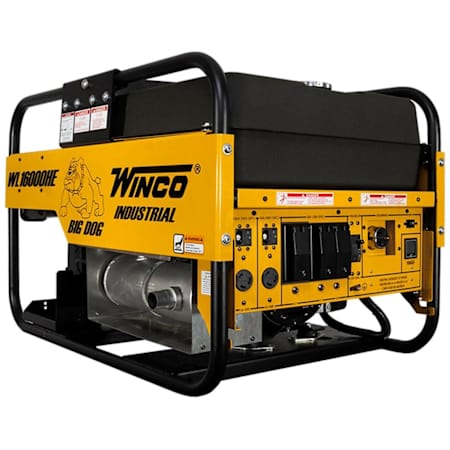

Winco Power Systems WL16000HE-03/A - 14,000-Watt (120 / 240V) Electric Key Start Fuel-Injected Gasoline Portable Generator with Honda iGX V-Twin

Features:

Winco WL16000He-03/A Industrial Series Portable Generator

• One of the largest Honda-powered portable generators on the market

Electric Start (Battery Not Included)

• Allows for easier starting, just turn the key

• Flywheel-mounted charger keeps battery charged when engine runs

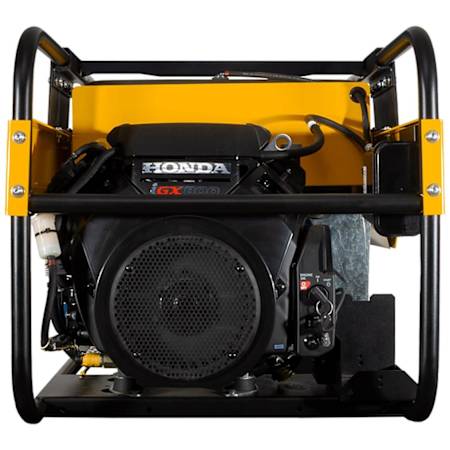

779cc Honda iGX800 Fuel-Injected V-Twin OHV Engine

• EFI technology for fuel efficiency, smoother operation and better Hz control

• Full pressure lubrication system with spin-on oil filter

Low Oil Protection

• Shuts engine down in the event of a low oil event to prevent engine damage

Brushless Industrial Alternator

• 100% copper windings, NEMA Class H insulation

Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)

• Inherent voltage regulation protects electronics from surges

15-Gallon Steel Fuel Tank with Fuel Gauge

• EPA approved design eliminates carbon emissions

120/240V 50-Amp (CS6365) Twist-lock Receptacle

• Allows for connection to a manual transfer switch (MTS)

YourGen Digital Meter with LED Screen

• Displays hours, RPMs, voltage and frequency (Hz) readings

• Load bars makes it easy to balance generator loads

• Visual warnings for added safety and maintenance

Premium Circuit Breakers

• Visi-Trip indicator to easily identify a tripped circuit

Wrap-Around Tubular Steel (13-Gauge) Cradle

• Powder-coat paint protects finish from damage and debris

Standard Lifting Eye

• Make this generator easier to lift

100% Load Tested

• All generators are tested prior to leaving the factory

Requires BCI GROUP 31 300 CCA (Not Included)

3-Year (Generator) / 3-Year (Engine) Commercial Warranty

Non-CARB Compliant - Not For Sale In CA

Overview:

• Product Category: Portable Generator
• Generator Features:
  • Automatic Voltage Regulation
  • Cast Iron Engine Sleeve
  • CO Sensing
  • Fuel Gauge
  • Hour Meter
  • Idle Control
  • Low Oil Alert/Shutdown
  • Low THD
• Product Weight: 504 lbs
• Length: 49-1/2"
• Width: 27"
• Height: 30"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 14,000 Watts
• Starting Wattage: 16,000 Watts
• Amperage: 58A
• Decibel Rating @ 7m: 82 dbA

Engine:

• Engine Brand: Honda
• Starting System: 12-Volt Key Start
• Cubic Capacity: 779 CC
• RPM: 3600 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• EPA Compliant
• Warranty: 3 Year

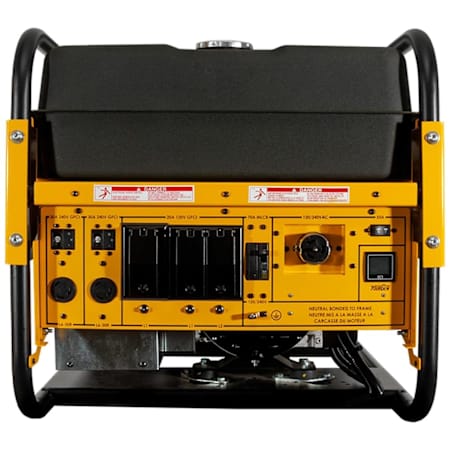

Plug Types:

(1) CS6364/5 - 50-Amp Twistlock

(3) NEMA 5-20R - GFCI
