Westinghouse 5,300-Watt (120 / 240V) Electric Button / Recoil Start Gasoline Portable Generator with CO Sensor (CARB)
Model: WGEN5300SC|Item: bci5177397
Details
Features:
Westinghouse WGen5300sc Electric Start Portable Generator
- Great for providing emergency backup around the house
Carbon Monoxide Sensor
- Shuts the generator down when unsafe levels of CO are present
Electric Start (Battery Included) with Recoil Back Up
- Allows for quick and easy starting
274cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
Low Oil Protection
- Helps prevent engine damage before it happens
4.7-Gallon Fuel Tank with Fuel Gauge
- Provides up to 11-hours of run time at 50% load
Automatic Voltage Regulator (AVR) and Circuit Breaker Protection
- Protects appliances and equipment from harmful voltage swings
- Helps prevent overload to generator
RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
30-Amp (L14-30R) 120/240V Twist-Lock Receptacle***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord

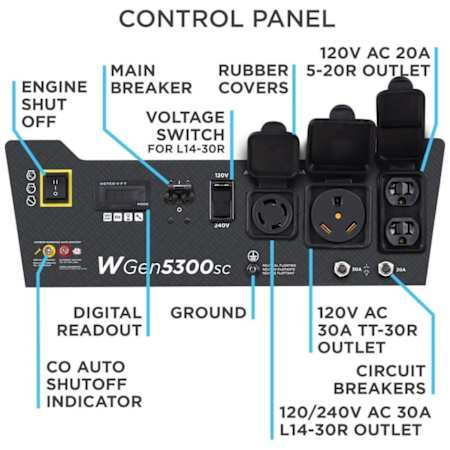

VFT Data Center
- Easily see volts, Hz and run-time hours
Outlet Covers
- Keeps out moisture and debris when outlets are not being used
Solid Wheels and Single Fold-Down Handle
- Allows for easy movement over uneven terrain
Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
3-Year Residential Warranty and Lifetime Technical Support
CARB and EPA Compliant
***Note - Allows You To Get Maximum Power From Generator
Overview:
- Product Category: Portable Generator
- Generator Features:
- Automatic Voltage Regulation
- CO Sensing
- Fuel Gauge
- Idle Control
- Low Oil Alert/Shutdown
- Low THD
- Battery Included
- Product Weight: 133.8 lbs
- Length: 23-1/2"
- Width: 25"
- Height: 21-1/2"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 5,300 Watts
- Starting Wattage: 6,600 Watts
- Amperage: 22A
Engine:
- Engine Brand: Westinghouse
- Starting System: 12-Volt Button Start w/ Recoil
- Cubic Capacity: 274 CC
- RPM: 3600 RPM
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Warranty: 1 Year and 3 Year
Plug Types:

(1) NEMA 5-20R

(1) NEMA L14-30R

(1) RV Ready 30-Amp
Manufacturer Resources
Owners ManualQuick Start GuideSafety Data Sheet: BatterySafety Data Sheet: OilWarrantyDimensions and Measurements
Fuel Tank Capacity | 4.7 Gallons |
Height | 21.5 in. |
Length | 23.5 in. |
Product Weight | 133.8 lbs. |
Width | 25 in. |
Dimensions and Measurements
Fuel Tank Capacity | 4.7 Gallons |
Height | 21.5 in. |
Length | 23.5 in. |
Product Weight | 133.8 lbs. |
Width | 25 in. |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Included Components
Automatic Transfer Switch Included | No |
Battery Included | Yes |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Westinghouse |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, CO Sensing, Fuel Gauge, Idle Control, Low Oil Alert/Shutdown, Low THD |
Characteristics and Features
Assembly Required | Yes |
Engine Brand | Westinghouse |
Fuel Tank Material | Metal |
Generator Features | Automatic Voltage Regulation, CO Sensing, Fuel Gauge, Idle Control, Low Oil Alert/Shutdown, Low THD |
Electrical and Operational Information
Alternator | Brushed |
Amperage | 22 |
Cubic Capacity | 274 cc |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline |
Plug Type | (1) NEMA 5-20R, (1) NEMA L14-30R, (1) RV Ready 30-Amp |
RPM | 3600 |
Run Time @ 50% Load | 11 Hours |
Running Wattage | 5300 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 6600 |
Voltage | 120, 240 |
Electrical and Operational Information
Alternator | Brushed |
Amperage | 22 |
Cubic Capacity | 274 cc |
Electrical Phases | 1 |
Frequency | 60 Hertz |
Fuel Type | Gasoline |
Plug Type | (1) NEMA 5-20R, (1) NEMA L14-30R, (1) RV Ready 30-Amp |
RPM | 3600 |
Run Time @ 50% Load | 11 Hours |
Running Wattage | 5300 |
Starting System | 12-Volt Button Start w/ Recoil |
Starting Wattage | 6600 |
Voltage | 120, 240 |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
EPA Compliant | Yes |
Made in America | Yes |
Manufacturer Warranty | 1 Year, 3 Year |
Warranty and Product Information
Approved for Commercial Use | No |
CARB approved | Yes |
EPA Compliant | Yes |
Made in America | Yes |
Manufacturer Warranty | 1 Year, 3 Year |
