The Westinghouse 5201000 has been discontinued

** See similar or replacement items below **

Westinghouse
Alternate View
Alternate View
Alternate View
Alternate View
Item # bci4034781

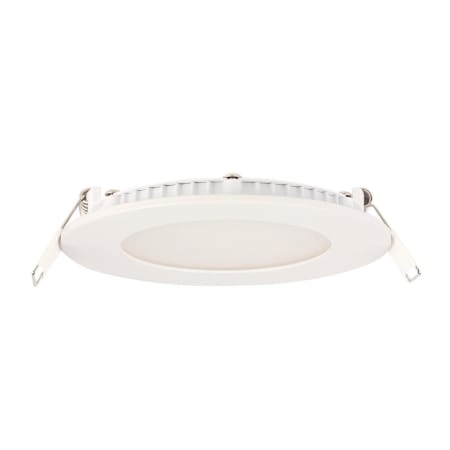

Westinghouse 10-Watt (65-Watt Equivalent) 4" Slim White Trim Recessed Dimmable LED Downlight with Color Temperature Selection

Model: 5201000
|
Item: bci4034781

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

This product is the recessed lighting solution for shallow ceilings or recessed spaces and gives you four color temperature options in one downlight. Select 2700K, 3000K, 4000K or 5000K at the time of installation with a simple slide of a switch. Ideal for new and remodel construction, this one piece downlight is a quick and easy alternative to a recessed can, trim and light bulb. Place external driver above the ceiling and secure to the light with the twist-lock connector. Convenient spring clips hold the fixture firmly to the ceiling. No visible screws or hardware, and a sleek pre-attached trim create a seamless look. Illuminates instantly, fully dimmable and suitable for damp locations. Free of harmful mercury, LED lights are a great choice for your replacement needs. Westinghouse is a trusted, global brand that knows lighting and offers products with exceptional quality, reliability and functionality. Product reference number 52010.

Features:

  • Energy saving: ENERGY STAR Slim Recessed LED Downlight with color temperature selection reduces energy costs up to 85%, using only 10 watts of energy to produce the same light output as a 65-watt incandescent

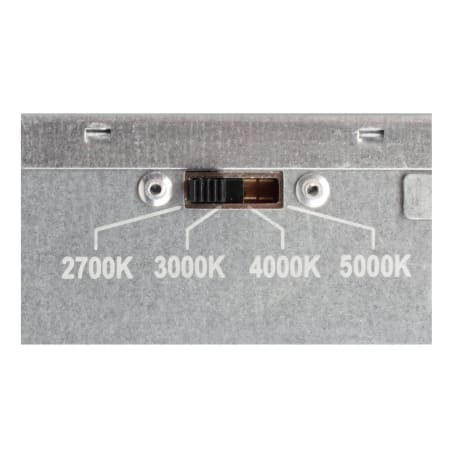

  • Sleek, low profile for ceilings that are too shallow to fit a recessed can, choose 2700K, 3000K, 4000K or 5000K
  • 26 inch feed wire between light and external driver allows for flexible driver positioning
  • Long Life: 50,000 average rated hours eliminates the need to replace bulbs
  • Brightness and appearance: 630 lumens and 2700-5000K selectable light temperature, 80 CRI, dimmable
  • Where to use: Perfect for remodel and new construction in kitchens, family rooms, offices and retail settings, IC rated
  • Insulated ceiling rated
  • Constructed from aluminum
  • Capable of being dimmed with a compatible ELV dimmer switch
  • ETL rated for damp locations
  • Covered under a 5 year limited manufacturer warranty

Dimensions::

  • Trim Size: 5-1/2"
  • Height: 1"
  • Width: 4-3/4"
  • Product Weight: .81 lbs
  • Cutout Size: 5-1/2"
  • Beam Spread: 120°

Electrical Specifications:

  • Lumens: 630
  • Color Temperature: 2700K
  • Color Rendering Index: 80 CRI
  • Wattage: 10 watts
  • Average Hours: 50000
Additional Westinghouse Links

Manufacturer Resources

Installation GuideSpecifications

Dimensions and Measurements

Beam Spread
120 Degrees
Cutout Size
5.51 in.
Height
0.98 in.
Product Weight
0.81 lbs.
Trim Size
5.5 in.
Width
4.72 in.

Dimensions and Measurements

Beam Spread
120 Degrees
Cutout Size
5.51 in.
Height
0.98 in.
Product Weight
0.81 lbs.
Trim Size
5.5 in.
Width
4.72 in.

Included Components

Bulb Included
Yes

Included Components

Bulb Included
Yes

Characteristics and Features

Adjustable Color Temperature
Yes
Bulb Base
Integrated LED
Bulb Type
LED
Color Temperature
2700K, 5000K
Dimmable
Yes
Housing Type
New Construction Housing
LED
Yes
Material
Aluminum
Retrofit
Yes
RGB
No
Shallow Ceiling Compatible
Yes
Sloped Ceiling Compatible
No
Theme
Contemporary

Characteristics and Features

Adjustable Color Temperature
Yes
Bulb Base
Integrated LED
Bulb Type
LED
Color Temperature
2700K, 5000K
Dimmable
Yes
Housing Type
New Construction Housing
LED
Yes
Material
Aluminum
Retrofit
Yes
RGB
No
Shallow Ceiling Compatible
Yes
Sloped Ceiling Compatible
No
Theme
Contemporary

Electrical and Operational Information

Average Hours
50000 Hours
Color Rendering Index (CRI)
80
Lumens
630
Power Source
Hardwired
Voltage
120, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
10

Electrical and Operational Information

Average Hours
50000 Hours
Color Rendering Index (CRI)
80
Lumens
630
Power Source
Hardwired
Voltage
120, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
10

Warranty and Product Information

Certifications
ETL
Country Of Origin
China
Energy Star
Yes
Fire Rated
No
IC Rating
IC
Location Rating
Damp Location
Manufacturer Warranty
5 Year Limited

Warranty and Product Information

Certifications
ETL
Country Of Origin
China
Energy Star
Yes
Fire Rated
No
IC Rating
IC
Location Rating
Damp Location
Manufacturer Warranty
5 Year Limited
