The WAC Lighting WS-17825-AL has been discontinued
** See similar or replacement items below **
Item # bci3418401

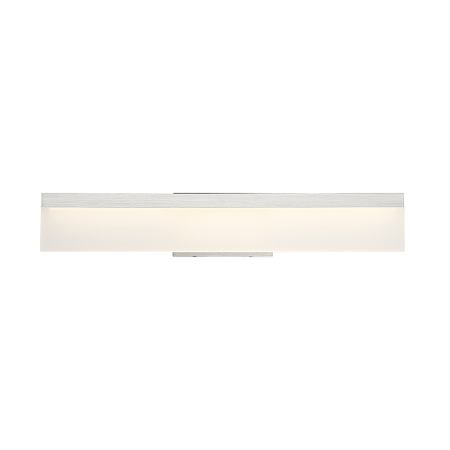

WAC Lighting Verge Single Light 25" Wide Integrated LED Bath Bar with a Frosted Acrylic Shade
Model: WS-17825-AL|Item: bci3418401
from theVerge Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
A vertical version of our handsome Level sconce, Verge features an ultra-thin frosted diffuser that helps to spread light evenly without any glare or hot spots.
Features
- Edge-lit LED modules illuminates uniformly for an ambient illumination
- Can be mounted up or down
- Constructed from aluminum
- Comes with a frosted acrylic shade
- Integrated LED lighting
- Can be mounted horizontally or vertically
- Designed for commercial or residential use
- Smooth and continuous dimming with an Electronic Low Voltage (ELV) dimmer
- ETL rated for damp locations
- Compliant with ADA standards
- 5 year functional manufacturer warranty with 2 year finish warranty
- Universal Voltage driver (120V-220V-277V) is installed within junction box

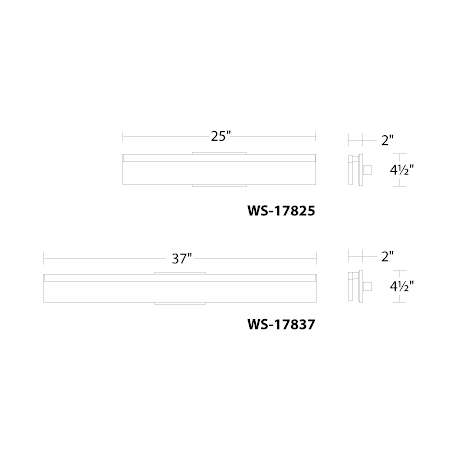

Dimensions
- Height: 4-1/2"
- Width: 25"
- Extension: 2"
- Product Weight: 3.5 lbs
- Backplate Height: 4-3/4"
- Backplate Width: 6-1/2"
- Backplate Depth: 5/8"
Electrical Specifications
- Bulb Base: Integrated LED
- Number of Bulbs: 1
- Bulb Included: Yes
- Lumens: 1180
- Wattage: 20 watts
- Voltage: 120, 240, and 277 volts
- Color Temperature: 3500K
- Color Rendering Index: 90CRI
- Average Hours: 54,000
Dimensions and Measurements
Backplate Depth | 0.63 in. |
Backplate Height | 4.75 in. |
Backplate Width | 6.5 in. |
Extension | 2 in. |
Height | 4.5 in. |
Product Weight | 3.47 lbs. |
Width | 25 in. |
Dimensions and Measurements
Backplate Depth | 0.63 in. |
Backplate Height | 4.75 in. |
Backplate Width | 6.5 in. |
Extension | 2 in. |
Height | 4.5 in. |
Product Weight | 3.47 lbs. |
Width | 25 in. |
Included Components
Bulb Included | Yes |
Shade | Yes |
Included Components
Bulb Included | Yes |
Shade | Yes |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Visible | No |
Color Temperature | 3500K |
Dimmable | Yes |
Energy Efficient | Yes |
Full Backplate | No |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Reversible Mounting | Yes |
Shade Color | White |
Shade Material | Synthetic |
Theme | Contemporary |
Characteristics and Features
Bulb Base | Integrated LED |
Bulb Visible | No |
Color Temperature | 3500K |
Dimmable | Yes |
Energy Efficient | Yes |
Full Backplate | No |
LED | Yes |
Light Direction | Ambient Lighting |
Material | Aluminum |
Number of Bulbs | 1 |
Number of Light Source(s) | 1 |
Reversible Mounting | Yes |
Shade Color | White |
Shade Material | Synthetic |
Theme | Contemporary |
Electrical and Operational Information
Average Hours | 54000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 1180 |
Power Source | Hardwired |
Voltage | 240, 277, 120 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 20 |
Electrical and Operational Information
Average Hours | 54000 Hours |
Color Rendering Index (CRI) | 90 |
Lumens | 1180 |
Power Source | Hardwired |
Voltage | 240, 277, 120 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 20 |
Warranty and Product Information
ADA | Yes |
Certifications | ETL |
Collection | Verge |
Country Of Origin | China |
Location Rating | Damp Location |
Manufacturer Warranty | 2 Year Finish, 5 Year Mechanical |
Series | dweLED |
Title 24 | No |
Warranty and Product Information
ADA | Yes |
Certifications | ETL |
Collection | Verge |
Country Of Origin | China |
Location Rating | Damp Location |
Manufacturer Warranty | 2 Year Finish, 5 Year Mechanical |
Series | dweLED |
Title 24 | No |
