WAC Lighting
WAC Lighting Pack of (24) Lotos 5-1/2" Integrated LED Wafer Recessed Trim and Remodel Housing- IC Rated and Airtight White
Alternate Image
Alternate Image
Alternate Image
Alternate Image
WAC Lighting Pack of (24) Lotos 5-1/2" Integrated LED Wafer Recessed Trim and Remodel Housing- IC Rated and Airtight White
Alternate Image
Alternate Image
Alternate Image
Alternate Image

WAC Lighting Pack of (24) Lotos 5-1/2" Integrated LED Wafer Recessed Trim and Remodel Housing- IC Rated and Airtight

Model: R6ERDR-W9CS-FWT-24
|
Item: bci5095023

$897.95
Finish: White -
254 In Stock
placeholder
Free Shipping!
Leaves the Warehouse in 1 to 3 business days
-
Return & Shipping Details

Details

The Lotos LED recessed light is a versatile recessed family that combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design connects to a remote driver and can be installed easily in both remodel or new construction applications with an optional frame-in kit accessory for pre-framing exposed ceilings. Lotos is available in flat wafer, adjustable, regressed adjustable, and multiple downlight versions to suit any design or lighting application. Create beautiful general ambient lighting or accent light and wall wash on a sloped ceiling with the adjustable version featuring a gimbal that pivots 360 degrees on a hinge. Lotos packs a high output integrated LED that is energy efficient and long-lasting. Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance.

Features:

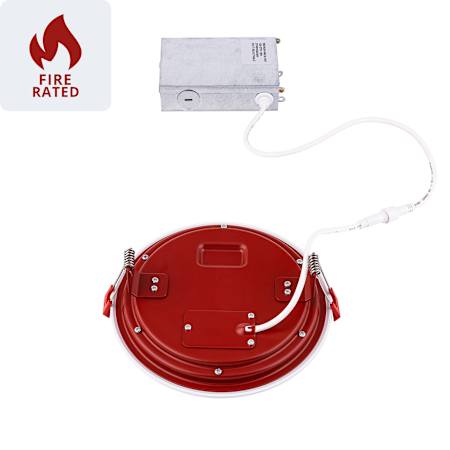

  • INSTALLATION: This innovative design can be installed in the shallowest ceiling depths with less than 2" of plenum space. Male-to-female quick connect locking cable joins the light engine to the driver box. Driver box includes 5 knockouts allowing for an easy electrical connection.
  • Housing is designed for use in remodel construction
  • Insulated ceiling rated and airtight
  • Fixture works with shallow ceilings
  • Can be converted to be used with pre-existing recessed housings
  • Constructed from steel
  • Comes with acrylic shade
  • Integrated 15 watt LED lighting
  • Capable of being dimmed
  • CSA and ETL for wet locations
  • Energy Star certified
  • Title 20 and Title 24 compliant
  • Covered by WAC Lighting's 2 year finish and 5 year manufacturer warranties

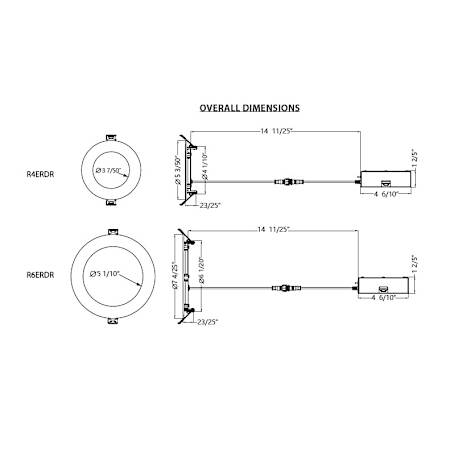

Dimensions:

  • Height: 15/16"
  • Width: 6-7/8"
  • Depth: 6-7/8"
  • Trim Size: 5-1/2"
  • Product Weight: 1.35 lbs
  • Aperture: 5-7/8"
  • Cutout Size: 5-1/4"

Electrical Specifications:

  • Wattage: 15 watts
  • Number of Light Source(s): 1
  • Watts Per Bulb: 15 watts
  • Lumens: 1200
  • Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
  • Color Rendering Index: 90 CRI
  • Average Hours: 50000
Additional WAC Lighting Links

Dimensions and Measurements

Aperture Size
5.88 in.
Beam Spread
45 Degrees
Cutout Size
5.25 in.
Depth
6.88 in.
Height
0.94 in.
Product Weight
1.35 lbs.
Quantity
24
Trim Size
5.5 in.
Width
6.88 in.

Dimensions and Measurements

Aperture Size
5.88 in.
Beam Spread
45 Degrees
Cutout Size
5.25 in.
Depth
6.88 in.
Height
0.94 in.
Product Weight
1.35 lbs.
Quantity
24
Trim Size
5.5 in.
Width
6.88 in.

Included Components

Bulb Included
Yes
Shade
Yes

Included Components

Bulb Included
Yes
Shade
Yes

Characteristics and Features

Adjustable Color Temperature
Yes
Airtight
Yes
Bulb Base
Integrated LED
Bulb Type
LED
Bulk Pack
Yes
Color Temperature
2700K, 3000K, 3500K, 4000K, 5000K
Dimmable
Yes
Housing Type
Remodel Housing
LED
Yes
Light Direction
Down Lighting
Material
Steel
Number of Bulbs
1
Number of Light Source(s)
1
Replaceable LED Module
Yes
Retrofit
Yes
RGB
No
Shade Color
Frosted
Shade Material
Acrylic
Shade Shape
Disk
Shallow Ceiling Compatible
Yes
Sloped Ceiling Compatible
No
Theme
Transitional
Trim Style
Wafer Trims

Characteristics and Features

Adjustable Color Temperature
Yes
Airtight
Yes
Bulb Base
Integrated LED
Bulb Type
LED
Bulk Pack
Yes
Color Temperature
2700K, 3000K, 3500K, 4000K, 5000K
Dimmable
Yes
Housing Type
Remodel Housing
LED
Yes
Light Direction
Down Lighting
Material
Steel
Number of Bulbs
1
Number of Light Source(s)
1
Replaceable LED Module
Yes
Retrofit
Yes
RGB
No
Shade Color
Frosted
Shade Material
Acrylic
Shade Shape
Disk
Shallow Ceiling Compatible
Yes
Sloped Ceiling Compatible
No
Theme
Transitional
Trim Style
Wafer Trims

Electrical and Operational Information

Average Hours
50000 Hours
Color Rendering Index (CRI)
90
Lumens
1200
Power Source
Hardwired
Voltage
120, 240, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
15
Watts Per Bulb
15

Electrical and Operational Information

Average Hours
50000 Hours
Color Rendering Index (CRI)
90
Lumens
1200
Power Source
Hardwired
Voltage
120, 240, 277
Voltage Type
Commercial Voltage (125V+), Line Voltage (110-120V)
Wattage
15
Watts Per Bulb
15

Warranty and Product Information

Certifications
CSA, ETL
Collection
Lotos
Country Of Origin
China
Energy Star
Yes
IC Rating
IC
Location Rating
Wet Location
Manufacturer Warranty
2 Year Finish, 5 Year
Title 20 Compliant
Yes
Title 24
Yes

Warranty and Product Information

Certifications
CSA, ETL
Collection
Lotos
Country Of Origin
China
Energy Star
Yes
IC Rating
IC
Location Rating
Wet Location
Manufacturer Warranty
2 Year Finish, 5 Year
Title 20 Compliant
Yes
Title 24
Yes
