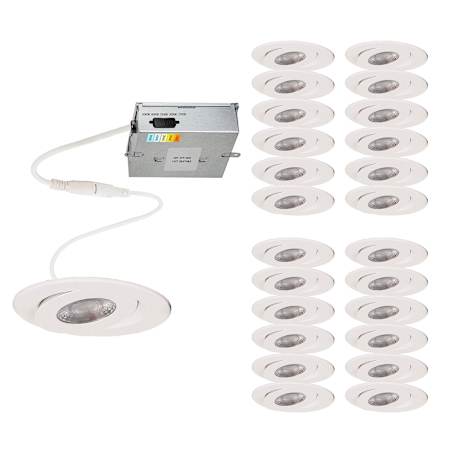

WAC Lighting Pack of (24) Lotos 4-1/2" Integrated LED Adjustable Recessed Trim and Remodel Housing- IC Rated and Airtight

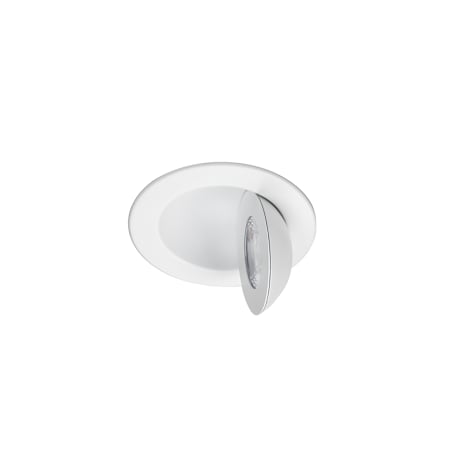

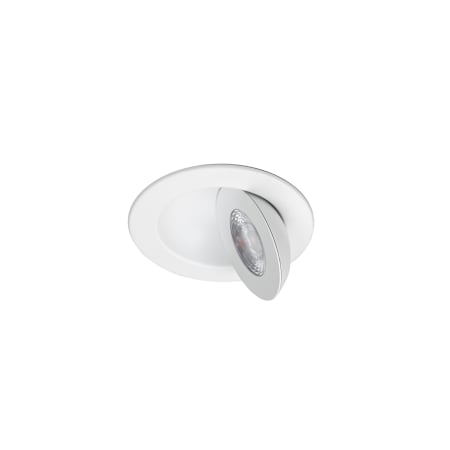

The Lotos LED recessed light is a versatile recessed family that combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design connects to a remote driver and can be installed easily in both remodel or new construction applications with an optional frame-in kit accessory for pre-framing exposed ceilings. Lotos is available in flat wafer, adjustable, regressed adjustable, and multiple downlight versions to suit any design or lighting application. Create beautiful general ambient lighting or accent light and wall wash on a sloped ceiling with the adjustable version featuring a gimbal that pivots 360 degrees on a hinge. Lotos packs a high output integrated LED that is energy efficient and long-lasting. Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance.

Features:

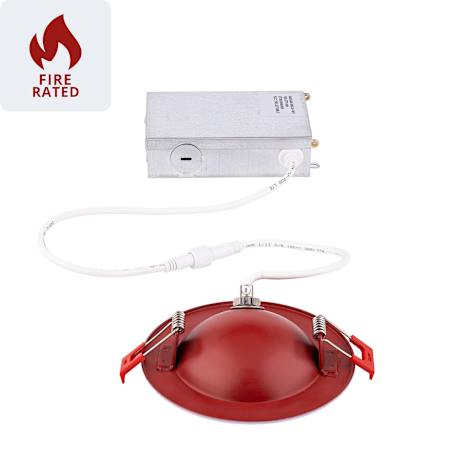

• INSTALLATION: This innovative design can be installed in the shallowest ceiling depths with less than 2" of plenum space. Male-to-female quick connect locking cable joins the light engine to the driver box. Driver box includes 5 knockouts allowing for an easy electrical connection.
• CUTOUT: 2in installs in 2.75in cutout, 4in installs in 4in cutout, and 6in installs in 5.25in cutout, for ceiling thicknesses between 0.5in and 1.5in. Can be installed as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). Retention clips hold the light engine into place. Universal input driver 120V-220V-277V.
• Housing is designed for use in remodel construction
• Insulated ceiling rated and airtight
• Fixture works with shallow ceilings
• Can be converted to be used with pre-existing recessed housings
• Constructed from steel
• Integrated 9 watt LED lighting
• Capable of being dimmed
• CSA and ETL for wet locations
• Energy Star certified
• Title 20 and Title 24 compliant
• Covered by WAC Lighting's 2 year finish and 5 year manufacturer warranties

Dimensions:

• Height: 1-3/16"
• Width: 4-3/4"
• Depth: 4-3/4"
• Trim Size: 4-1/2"
• Product Weight: 0.86 lbs
• Aperture: 3-1/8"
• Cutout Size: 4"

Electrical Specifications:

• Wattage: 9 watts
• Number of Light Source(s): 1
• Watts Per Bulb: 9 watts
• Lumens: 800
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Color Rendering Index: 90 CRI
• Average Hours: 50000
