The WAC Lighting MT-5LD325H-NA has been discontinued
** See similar or replacement items below **
Item # bci3218037
WAC Lighting Tesla Multiple Spots LED New Construction Housing for Three Light Trims
Model: MT-5LD325H-NA|Item: bci3218037
from theTesla Multiple Spots Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Tesla brand of Multiple Spots provide a modern alternative to standard recessed installation with one to four light configurations. Multiple Spots blend into the ceiling with a flat regressed trim or an invisible trim option
Features
- Mounting arms extend from 14-1/4" to 25"
- Universal voltage operates at 120 to 277 volts
- Designed for commercial or residential use
- Housing is not insulated ceiling rated and airtight
- Manufactured from aluminum and 20 gauge steel
- Integrated 22.5 watt LED lighting
- Capable of being dimmed
- UL and CUL rated for damp locations
- Meets California Title 24 energy standards
- 5 year functional warranty with 2 year finish warranty

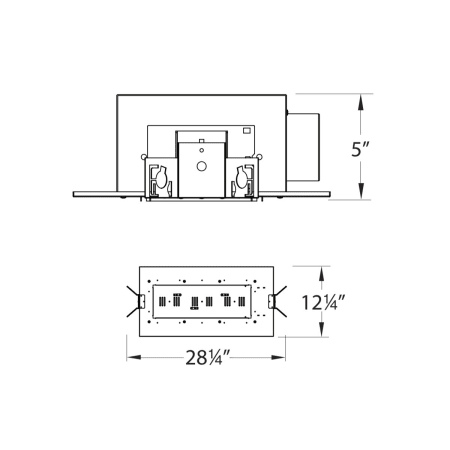

Dimensions
- Height: 5"
- Width: 28-1/4"
- Depth: 12-1/4"
- Product Weight: 14.6 lbs
- Cutout Size: 17-1/2"
Electrical Specifications
- Bulb Base: Integrated LED
- Number of Bulbs: 3
- Bulbs Included: Yes
- Watts Per Bulb: 22.5 watts
- Wattage: 67.5 watts
- Voltage: 120 and 277 volts
Dimensions and Measurements
Cutout Size | 17.52 in. |
Depth | 12.25 in. |
Height | 5 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 14.57 lbs. |
Width | 28.25 in. |
Dimensions and Measurements
Cutout Size | 17.52 in. |
Depth | 12.25 in. |
Height | 5 in. |
Maximum Width | 25 in. |
Minimum Width | 14.25 in. |
Product Weight | 14.57 lbs. |
Width | 28.25 in. |
Included Components
Bulb Included | Yes |
Included Components
Bulb Included | Yes |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Material | Aluminum |
Number of Bulbs | 3 |
Number of Light Source(s) | 3 |
Theme | Contemporary |
Characteristics and Features
Airtight | Yes |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | No |
Dimmable | Yes |
Energy Efficient | Yes |
Housing Type | New Construction Housing |
LED | Yes |
Material | Aluminum |
Number of Bulbs | 3 |
Number of Light Source(s) | 3 |
Theme | Contemporary |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 67.5 |
Watts Per Bulb | 22.5 |
Electrical and Operational Information
Power Source | Hardwired |
Voltage | 120, 277 |
Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
Wattage | 67.5 |
Watts Per Bulb | 22.5 |
Warranty and Product Information
Certifications | UL |
Collection | Tesla Multiple Spots |
Country Of Origin | China |
Energy Star | No |
IC Rating | Non-IC |
Location Rating | Damp Location, Wet Location |
Manufacturer Warranty | 5 Year |
Series | Tesla LED Multiples - 3 Lights |
Title 24 | Yes |
Warranty and Product Information
Certifications | UL |
Collection | Tesla Multiple Spots |
Country Of Origin | China |
Energy Star | No |
IC Rating | Non-IC |
Location Rating | Damp Location, Wet Location |
Manufacturer Warranty | 5 Year |
Series | Tesla LED Multiples - 3 Lights |
Title 24 | Yes |
