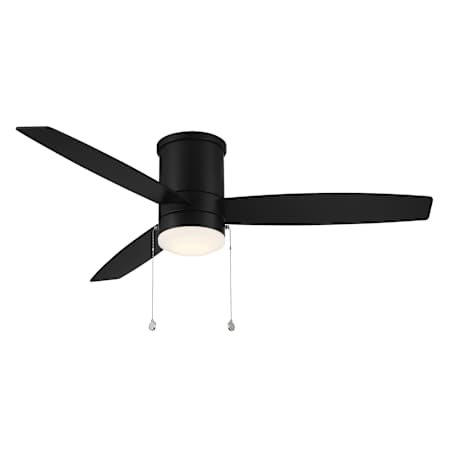

WAC Lighting Atlantis 52" 3 Blade Indoor LED Hugger Ceiling Fan
Model: F-073L-MB|Item: bci4328898
Details
Atlantis from WAC offers a basic pull-chain fan with an optional wall control. Damp rated, these appealing high-value fans offer three speed options and can be reversed from the housings to pull hot air up during winter months. Enhance your interiors with the gently-curved shape of the elegant fan. Secured from above the fan housing supports the rounded steel housing for the fan's three sleek blades, with three speeds to choose from. A damp-listed integrated LED luminaire at the center of the fixture evokes a wash of bright, ambient light, while the light and fan are separately controlled by prominent pull chains to ensure the ideal combination of light and breeze.
Features:
- Constructed from steel
- Comes with a frosted glass shade
- Fan is controllable by a pull chain
- Capable of being mounted on low ceilings
- Integrated LED lighting
- Capable of being dimmed
- CSA and UL listed for damp locations
- Energy Star certified
- Title 20 and Title 24 compliant
- Covered by WAC Lighting's 1 year parts, 2 year finish, 5 year LED, and lifetime motor manufacturer warranties
Dimensions:
- Height: 12-3/16"
- Width: 52"
- Product Weight: 16 lbs
- Wire Length: 32"
- Canopy Width: 7-7/8"
- Canopy Depth: 7-7/8"
Blade Specifications:
- Number of Blades: 3
- Blade Span: 52"
- Blades Included: Yes
- Blade Pitch: 13°
- Reversible Blades: No
- Fan Blade Material: Plywood
- Blade Length: 19"
Motor Specifications:
- Speeds: 3
- CFM: 3046
- RPM: 186
Electrical Specifications:
- Bulb Base: Integrated LED
- Light Kit Included: Yes
- Wattage: 83 watts
- Voltage: 120 volts
- Amperage: 0.5
- Color Temperature: 3000K
- Color Rendering Index: 90CRI
- Lumens: 1600
Dimensions and Measurements
Blade Length | 19 in. |
Blade Pitch | 13 Degrees |
Blade Span | 52 in. |
Canopy Depth | 7.9 in. |
Canopy Width | 7.9 in. |
CFM | 3046 |
CFM (High) | 4116 |
CFM (Low) | 1840 |
Height | 12.2 in. |
Motor Size | 153 mm |
Product Weight | 16 lbs. |
Width | 52 in. |
Wire Length | 32 in. |
Dimensions and Measurements
Blade Length | 19 in. |
Blade Pitch | 13 Degrees |
Blade Span | 52 in. |
Canopy Depth | 7.9 in. |
Canopy Width | 7.9 in. |
CFM | 3046 |
CFM (High) | 4116 |
CFM (Low) | 1840 |
Height | 12.2 in. |
Motor Size | 153 mm |
Product Weight | 16 lbs. |
Width | 52 in. |
Wire Length | 32 in. |
Included Components
Blades Included | Yes |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | No |
Includes Receiver | No |
Light Kit Included | Yes |
Shade | Yes |
Included Components
Blades Included | Yes |
Bulb Included | Yes |
Controller Included | Yes |
Downrod(s) Included | No |
Includes Receiver | No |
Light Kit Included | Yes |
Shade | Yes |
Characteristics and Features
Blade Finish | Black, White |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | Yes |
Color Temperature | 3000K |
Control Type | Pull Chain |
Dimmable | Yes |
Fan Blade Material | Plywood |
Fan Type | Hugger |
Glass Features | Frosted Glass |
LED | Yes |
Light Direction | Down Lighting |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | Yes |
Marine Grade | No |
Material | Steel |
Motor | AC Induction |
Number of Blades | 3 |
Number of Light Source(s) | 1 |
Reversible Blades | No |
Reversible Motor | Yes |
Shade Color | Frosted |
Shade Material | Glass |
Shade Shape | Bowl |
Sloped Ceiling Compatible | No |
Smart Home | No |
Theme | Transitional |
Characteristics and Features
Blade Finish | Black, White |
Bulb Base | Integrated LED |
Bulb Type | LED |
Bulb Visible | Yes |
Color Temperature | 3000K |
Control Type | Pull Chain |
Dimmable | Yes |
Fan Blade Material | Plywood |
Fan Type | Hugger |
Glass Features | Frosted Glass |
LED | Yes |
Light Direction | Down Lighting |
Light Kit Compatible | Yes |
Low Ceiling Adaptable | Yes |
Marine Grade | No |
Material | Steel |
Motor | AC Induction |
Number of Blades | 3 |
Number of Light Source(s) | 1 |
Reversible Blades | No |
Reversible Motor | Yes |
Shade Color | Frosted |
Shade Material | Glass |
Shade Shape | Bowl |
Sloped Ceiling Compatible | No |
Smart Home | No |
Theme | Transitional |
Electrical and Operational Information
Amperage | 0.5 |
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Energy Efficiency (CFM / Watt) | 75 |
Lumens | 1600 |
Power Source | Hardwired |
Reverse Switch Location | Motor |
RPM | 186 |
RPM (High) | 186 |
RPM (Low) | 40 |
Speeds | 3 |
Voltage | 120 |
Wattage | 83 |
Watts Per Bulb | 19.5 |
Electrical and Operational Information
Amperage | 0.5 |
Average Hours | 50000 Hours |
Color Rendering Index (CRI) | 90 |
Energy Efficiency (CFM / Watt) | 75 |
Lumens | 1600 |
Power Source | Hardwired |
Reverse Switch Location | Motor |
RPM | 186 |
RPM (High) | 186 |
RPM (Low) | 40 |
Speeds | 3 |
Voltage | 120 |
Wattage | 83 |
Watts Per Bulb | 19.5 |
Warranty and Product Information
Certifications | CSA, UL |
Collection | Atlantis |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, 5 Year LED, Lifetime Motor |
Series | WAC Limited |
Title 20 Compliant | Yes |
Title 24 | Yes |
Warranty and Product Information
Certifications | CSA, UL |
Collection | Atlantis |
Country Of Origin | China |
Energy Star | Yes |
Location Rating | Damp Location |
Manufacturer Warranty | 1 Year Parts, 2 Year Finish, 5 Year LED, Lifetime Motor |
Series | WAC Limited |
Title 20 Compliant | Yes |
Title 24 | Yes |
