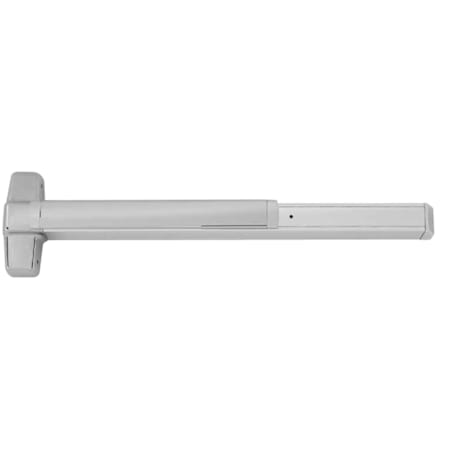

Von Duprin 3' 98 Series Fire Rated Concealed Vertical Cable Accessible Exit Device Less Bottom Rod with Standard Hex Key Dogging and Auxiliary Fire Latch

Product Features:

• BHMA Grade 1 rated exit device
• 3' exit device
• Covered under manufacturer's 3 year limited warranty
• 1-1/2 or 3 hour fire rating (depending on installation)
• Exit only function - Exterior trim sold separately
• Exit device does not include bottom rod/ latch
• Auxiliary fire latch prevents the spread of smoke and flames in the event of a fire
• This device is ADA compliant and requires no more than 5 lbs of force to operate

Product Specifications:

• Accessible Device: Yes
• ANSI Certification: A156.3
• Auxiliary Fire Latch: Yes
• BHMA Certification: Grade 1
• Concealed: Yes
• Cylinder Type: Single Cylinder
• Dogging: Standard Hex Key Dogging
• Exit Device Type: Concealed Cable Device
• Exit Trim Function: Exit Only
• Handing: Reversible
• Less Bottom Rod: Yes
• Projection: 3-13/16"
• UL Listed: Yes
• Width: 3'
