The Viking VGR5486GAB has been discontinued
** See similar or replacement items below **
Item # bci4079198

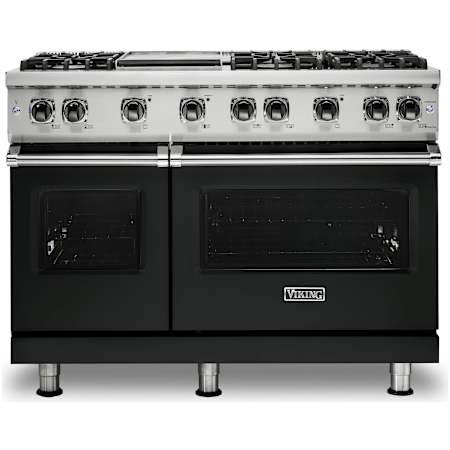

Viking 48 Inch Wide 5.07 Cu. Ft. Free Standing Natural Gas Range with VariSimmer Functionality and SureSpark Ignition System
Model: VGR5486GAB|Item: bci4079198
from the5 Series Collection
Discontinued
We still have product details and accessories, scroll down to see them!
Discontinued
We still have product details and accessories, scroll down to see them!
Details
Features:
- Large 5.07 cu. ft. capacity is spacious enough for even bigger meals
- Features 6 sealed gas burners
- Turn knob controls offer easy, intuitive access to settings
- Included viewing window offers access to check on your food without opening the door
- Includes a 2-year manufacturer warranty for parts and labor and a 5 year warranty for the burners
Product Technologies:
- VariSimmer Functionality : Available on all burners, the VariSimmer setting provides even, gentle heat for precisely low cooking temperatures. Melt chocolate and simmer sauces with ease!
- SureSpark Ignition System: The exclusive SureSpark Ignition System makes getting started a breeze with automatic ignition and lets you keep going with automatic re-ignition should the burners ever accidentally go out.
Specifications:
- Total Capacity: 5.07 cu. ft.
- Back Left Burner BTU: 15000
- Back Right Burner BTU: 15000
- Middle Burner BTU: 15000
- Front Left Burner BTU: 15000
- Front Right Burner BTU: 18500
- Broil Element: Yes
- Convection: Yes
- Sabbath Mode: No
- Self Cleaning: No
- Depth: 24-5/16"
- Height: 35-7/8"
- Width: 47-7/8"
Specifications
Key Specifications
- Nominal Width48 in.
- Meat ThermometerNo
- Burner StyleSealed
- ConvectionYes
- Drawer TypeNone
- Installation TypeFree Standing
- Number Of Burners6
- Self CleaningNo
- Fuel TypeGas
Manufacturer Resources
Installation SheetCleaning TipsOwner's ManualUse and Care GuideSpecification SheetDimensions and Measurements
Cutout Depth | 24 in. |
Cutout Height | 36 in. |
Cutout Width | 48 in. |
Depth | 24.3125 in. |
Height | 35.875 in. |
Height to Top of Back Guard | 43.875 in. |
Height to Top of Cook Top | 36.875 in. |
Interior Depth | 18.75 in. |
Interior Height | 16.125 in. |
Interior Width | 29 in. |
Nominal Depth | 26 in. |
Nominal Height | 36 in. |
Nominal Width | 48 in. |
Oven Capacity | 4, 2.1 cu. ft. |
Product Weight | 575 lbs. |
Total Capacity | 5.07 cu. ft. |
Width | 47.875 in. |
Dimensions and Measurements
Cutout Depth | 24 in. |
Cutout Height | 36 in. |
Cutout Width | 48 in. |
Depth | 24.3125 in. |
Height | 35.875 in. |
Height to Top of Back Guard | 43.875 in. |
Height to Top of Cook Top | 36.875 in. |
Interior Depth | 18.75 in. |
Interior Height | 16.125 in. |
Interior Width | 29 in. |
Nominal Depth | 26 in. |
Nominal Height | 36 in. |
Nominal Width | 48 in. |
Oven Capacity | 4, 2.1 cu. ft. |
Product Weight | 575 lbs. |
Total Capacity | 5.07 cu. ft. |
Width | 47.875 in. |
Included Components
Baking Element | Yes |
Clock | No |
Griddle | Yes |
Grill | No |
Includes Timer | No |
Interior Light | Yes |
Light Included | Yes |
Meat Thermometer | No |
Oven | Yes |
Rotisserie | No |
Included Components
Baking Element | Yes |
Clock | No |
Griddle | Yes |
Grill | No |
Includes Timer | No |
Interior Light | Yes |
Light Included | Yes |
Meat Thermometer | No |
Oven | Yes |
Rotisserie | No |
Characteristics and Features
Broil Element | Yes |
Bulb Type | Halogen |
Burner Style | Sealed |
Continuous Grates | Yes |
Control Type | Knob |
Convection | Yes |
Door Features | Viewing Window |
Drawer Type | None |
Hot Surface Indicator Lights | No |
Installation Type | Free Standing |
Leveling Legs | Yes |
LP Conversion | Yes |
Number Of Burners | 6 |
Number of Racks | 5 |
Sabbath Mode | No |
Self Cleaning | No |
Smart Home | No |
Steam Technology | No |
Warm Function | No |
Characteristics and Features
Broil Element | Yes |
Bulb Type | Halogen |
Burner Style | Sealed |
Continuous Grates | Yes |
Control Type | Knob |
Convection | Yes |
Door Features | Viewing Window |
Drawer Type | None |
Hot Surface Indicator Lights | No |
Installation Type | Free Standing |
Leveling Legs | Yes |
LP Conversion | Yes |
Number Of Burners | 6 |
Number of Racks | 5 |
Sabbath Mode | No |
Self Cleaning | No |
Smart Home | No |
Steam Technology | No |
Warm Function | No |
Electrical and Operational Information
Amperage | 15 |
Auto Shut Off | No |
Back Left Burner BTU | 15000 |
Back Right Burner BTU | 15000 |
Frequency | 60 Hertz |
Front Left Burner BTU | 15000 |
Front Right Burner BTU | 18500 |
Fuel Type | Gas |
Gas Type | Natural Gas |
Ignition Type | Electronic |
Induction | No |
Middle Burner BTU | 15000 |
Power Burner | Yes |
Total BTUs | 105000 |
Voltage | 120 |
Electrical and Operational Information
Amperage | 15 |
Auto Shut Off | No |
Back Left Burner BTU | 15000 |
Back Right Burner BTU | 15000 |
Frequency | 60 Hertz |
Front Left Burner BTU | 15000 |
Front Right Burner BTU | 18500 |
Fuel Type | Gas |
Gas Type | Natural Gas |
Ignition Type | Electronic |
Induction | No |
Middle Burner BTU | 15000 |
Power Burner | Yes |
Total BTUs | 105000 |
Voltage | 120 |
Warranty and Product Information
ADA | No |
Application | Range |
Approved for Commercial Use | No |
Certifications | CSA |
Collection | 5 Series |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 2 Year Labor, 2 Year Parts, 5 Year Burners |
Outdoor Approved | No |
Product Variation | Range with Double Oven |
Series | 5 Series |
Warranty and Product Information
ADA | No |
Application | Range |
Approved for Commercial Use | No |
Certifications | CSA |
Collection | 5 Series |
Country Of Origin | USA |
Energy Star | No |
Made in America | Yes |
Manufacturer Warranty | 2 Year Labor, 2 Year Parts, 5 Year Burners |
Outdoor Approved | No |
Product Variation | Range with Double Oven |
Series | 5 Series |
