The Viking VDR5304BANLP has been discontinued

** See similar or replacement items below **

Viking
Alternate View
Alternate View
Alternate View
Alternate View
Alternate View
Item # bci4946205

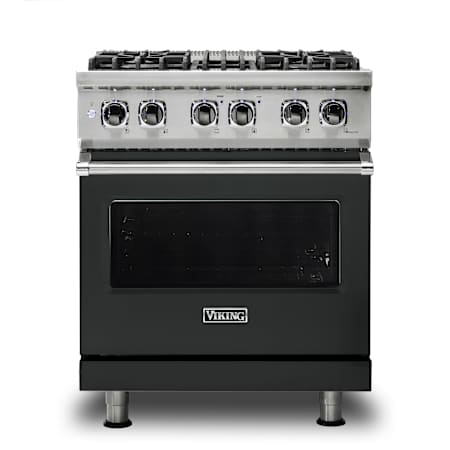

Viking 5 Series 30 Inch Wide 4.71 Cu. Ft. Free Standing Dual Fuel Range with SureSpark Ignition System and TruConvec Convection Cooking - LP

Model: VDR5304BANLP
|
Item: bci4946205

Discontinued

We still have product details and accessories, scroll down to see them!

Discontinued

We still have product details and accessories, scroll down to see them!

Details

Features:

  • Large 4.71 cu. ft. capacity is spacious enough for even bigger meals
  • Features 4 sealed burners
  • Turn knob controls offer easy, intuitive access to settings
  • Included viewing window offers access to check on your food without opening the door
  • Includes a 2-year manufacturer warranty for parts and labor and a 5 year warranty for the burners

Product Technologies:

  • SureSpark Ignition System : The exclusive SureSpark Ignition System makes getting started a breeze with automatic ignition and lets you keep going with automatic re-ignition should the burners ever accidentally go out.

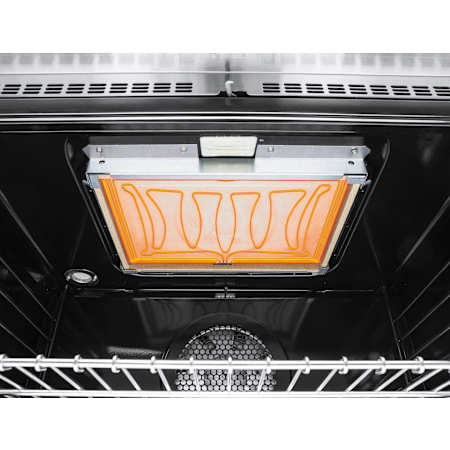

  • TruConvec Convection Cooking: Viking's exclusive oven air circulation system cooks food using only the heat from the rear convection element and fan-forced air, no direct heat from top or bottom. This allows for even heating and consistently delicious results!

Specifications:

  • Total Capacity: 4.71 cu. ft.
  • Back Left Burner BTU: 15000
  • Back Right Burner BTU: 15000
  • Front Left Burner BTU: 15000
  • Front Right Burner BTU: 18500
  • Broil Element: Yes
  • Convection: Yes
  • Sabbath Mode: No
  • Self Cleaning: Yes
  • Depth: 24-5/16"
  • Height: 35-7/8"
  • Width: 29-7/8"

Specifications

Key Specifications

  • Nominal Width
    30 in.
  • Meat Thermometer
    No
  • Burner Style
    Sealed
  • Convection
    Yes
  • Drawer Type
    None
  • Installation Type
    Free Standing
  • Number Of Burners
    4
  • Self Cleaning
    Yes
  • Fuel Type
    Dual Fuel

Dimensions and Measurements

Cutout Depth
24 in.
Cutout Height
36 in.
Cutout Width
30 in.
Depth
24.3125 in.
Height
35.875 in.
Nominal Depth
26 in.
Nominal Height
36 in.
Nominal Width
30 in.
Product Weight
410 lbs.
Total Capacity
4.71 cu. ft.
Width
29.875 in.

Dimensions and Measurements

Cutout Depth
24 in.
Cutout Height
36 in.
Cutout Width
30 in.
Depth
24.3125 in.
Height
35.875 in.
Nominal Depth
26 in.
Nominal Height
36 in.
Nominal Width
30 in.
Product Weight
410 lbs.
Total Capacity
4.71 cu. ft.
Width
29.875 in.

Included Components

Baking Element
Yes
Griddle
No
Grill
No
Interior Light
Yes
Light Included
Yes
Meat Thermometer
No

Included Components

Baking Element
Yes
Griddle
No
Grill
No
Interior Light
Yes
Light Included
Yes
Meat Thermometer
No

Characteristics and Features

Broil Element
Yes
Burner Style
Sealed
Continuous Grates
Yes
Control Type
Knob
Convection
Yes
Door Features
Viewing Window
Drawer Type
None
Hot Surface Indicator Lights
Yes
Installation Type
Free Standing
Leveling Legs
Yes
LP Conversion
No
Number Of Burners
4
Number of Racks
3
Sabbath Mode
No
Self Cleaning
Yes
Smart Home
No
Steam Technology
No
Warm Function
No

Characteristics and Features

Broil Element
Yes
Burner Style
Sealed
Continuous Grates
Yes
Control Type
Knob
Convection
Yes
Door Features
Viewing Window
Drawer Type
None
Hot Surface Indicator Lights
Yes
Installation Type
Free Standing
Leveling Legs
Yes
LP Conversion
No
Number Of Burners
4
Number of Racks
3
Sabbath Mode
No
Self Cleaning
Yes
Smart Home
No
Steam Technology
No
Warm Function
No

Electrical and Operational Information

Amperage
26.3
Auto Shut Off
No
Back Left Burner BTU
15000
Back Right Burner BTU
15000
Frequency
60 Hertz
Front Left Burner BTU
15000
Front Right Burner BTU
18500
Fuel Type
Dual Fuel
Gas Type
Liquid Propane
Ignition Type
Electronic
Induction
No
Middle Burner BTU
15000
Voltage
240

Electrical and Operational Information

Amperage
26.3
Auto Shut Off
No
Back Left Burner BTU
15000
Back Right Burner BTU
15000
Frequency
60 Hertz
Front Left Burner BTU
15000
Front Right Burner BTU
18500
Fuel Type
Dual Fuel
Gas Type
Liquid Propane
Ignition Type
Electronic
Induction
No
Middle Burner BTU
15000
Voltage
240

Warranty and Product Information

ADA
No
Application
Range
Certifications
CSA, UL
Collection
5 Series
Country Of Origin
USA
Energy Star
No
Made in America
Yes
Manufacturer Warranty
2 Year Labor, 2 Year Parts, 5 Year Burners
Outdoor Approved
No
Product Variation
Range with Double Oven
Series
5 Series

Warranty and Product Information

ADA
No
Application
Range
Certifications
CSA, UL
Collection
5 Series
Country Of Origin
USA
Energy Star
No
Made in America
Yes
Manufacturer Warranty
2 Year Labor, 2 Year Parts, 5 Year Burners
Outdoor Approved
No
Product Variation
Range with Double Oven
Series
5 Series
